Aluminum Composite Panel Laminating Machine

Aluminum Composite Panel Laminating Machine thumbnail-1
Aluminum Composite Panel Laminating Machine thumbnail-2
Aluminum Composite Panel Laminating Machine thumbnail-3
Aluminum Composite Panel Laminating Machine thumbnail-4
Aluminum Composite Panel Laminating Machine thumbnail-5
Aluminum Composite Panel Laminating Machine photo-1
Aluminum Composite Panel Laminating Machine photo-2
Aluminum Composite Panel Laminating Machine photo-3
Aluminum Composite Panel Laminating Machine photo-4
Aluminum Composite Panel Laminating Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Kunshan Hexin Precise Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Aluminum composite panel laminating machine

 Aluminum composite panel laminating machine

Aluminum composite panel laminating machine

Main Technical Parameter:

Model

HX-680F

Max Working Width(mm)

640

Max Feeding Speed(m/min)

0.5-15m/min

Laminating Temperature

70-130 degree

Power

AC220V  3.5kw

Dimensions(LxWx H)

1300X980X1220mm

Weight (kg)

225kg



Features:

1. Max working width: 640mm
2. Laminating thickness: Up to 5mm
3. Laminating speed: 0.5-15m/min
4. Under CE and ISO certification

Functions:
1. Pneumatic pressure with easy adjustment
2. Film slitter

3. Handy rewind kit
4. High efficiency ultrared ray heating

Applications:
HX series laminators is the perfect machine to produce superb laminating results for printing industry. With ability to cope with thick plastic plate laminating . The thickness up to 5mm


After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines



Aluminum composite panel laminating machine

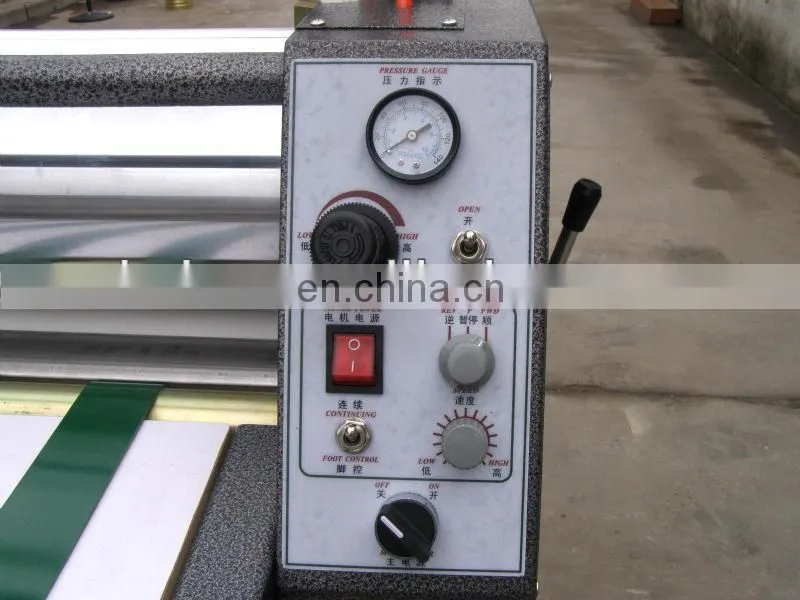

Control panel

  Aluminum composite panel laminating machine

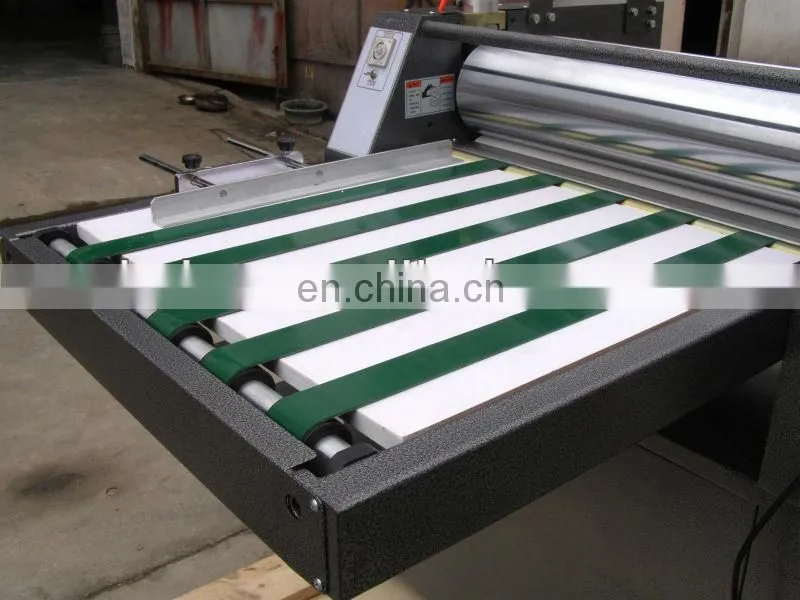

Conveyor belt for feeding material

 Aluminum composite panel laminating machine

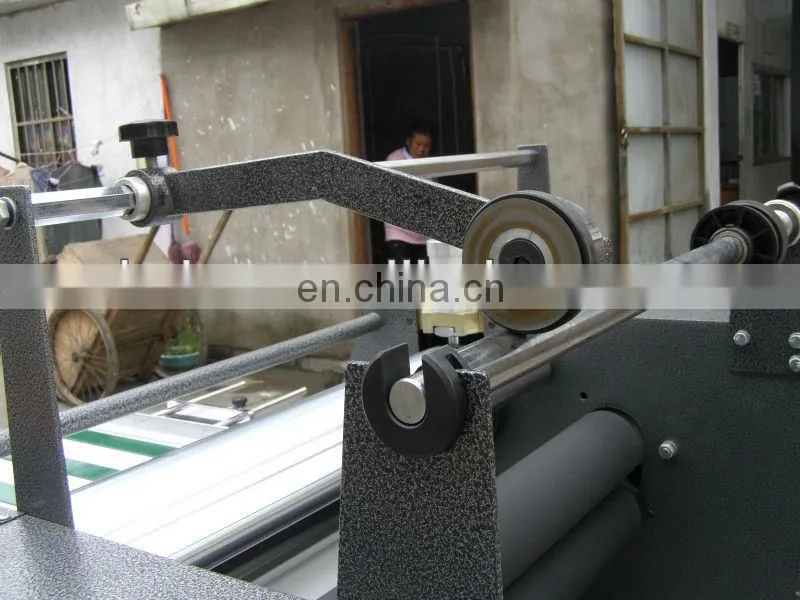

Slitter knife for cutting waste side



Aluminum composite panel laminating machine

Aluminum composite panel laminating machine

Aluminum composite panel laminating machine

Aluminum composite panel laminating machine
