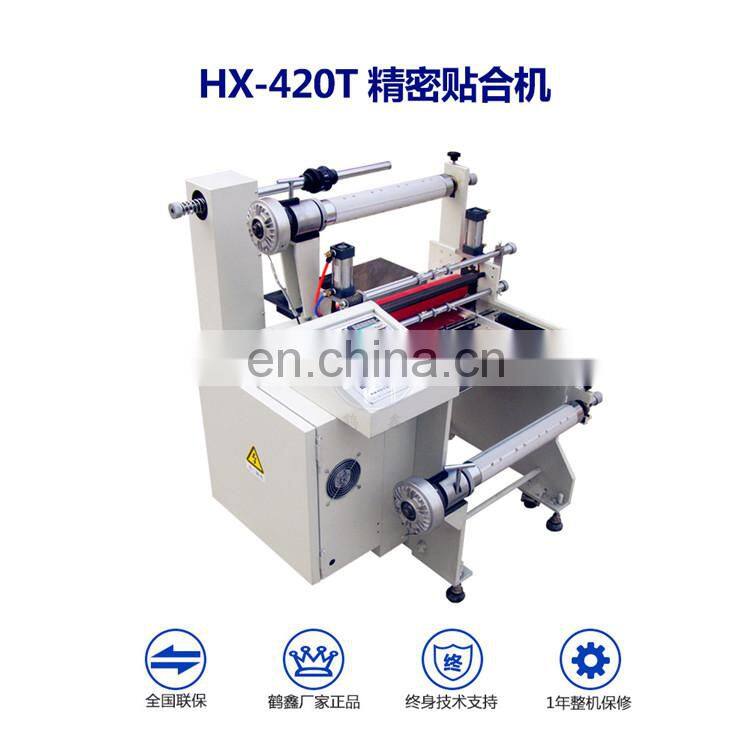

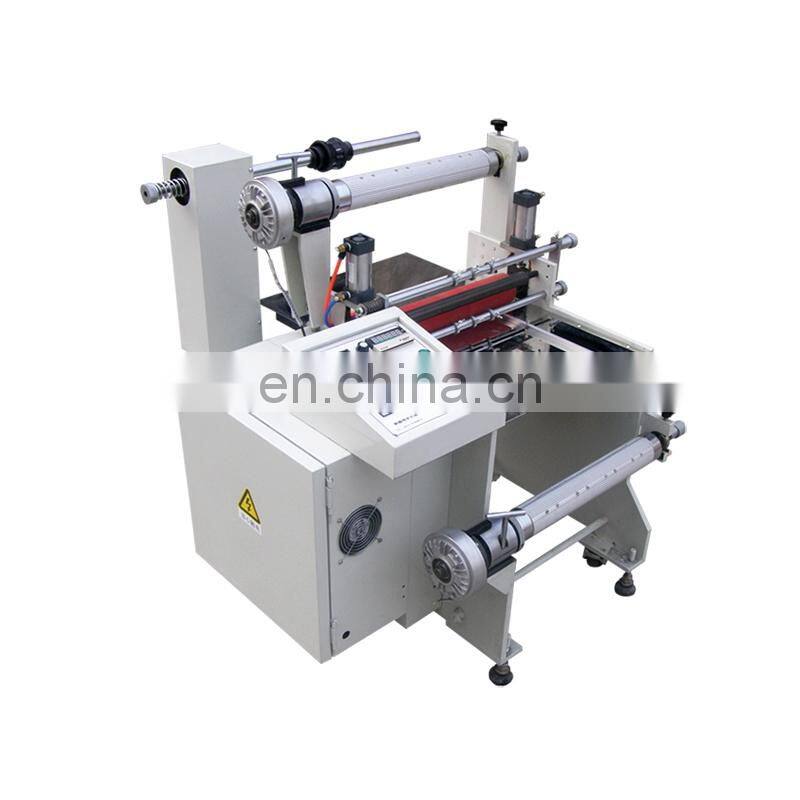

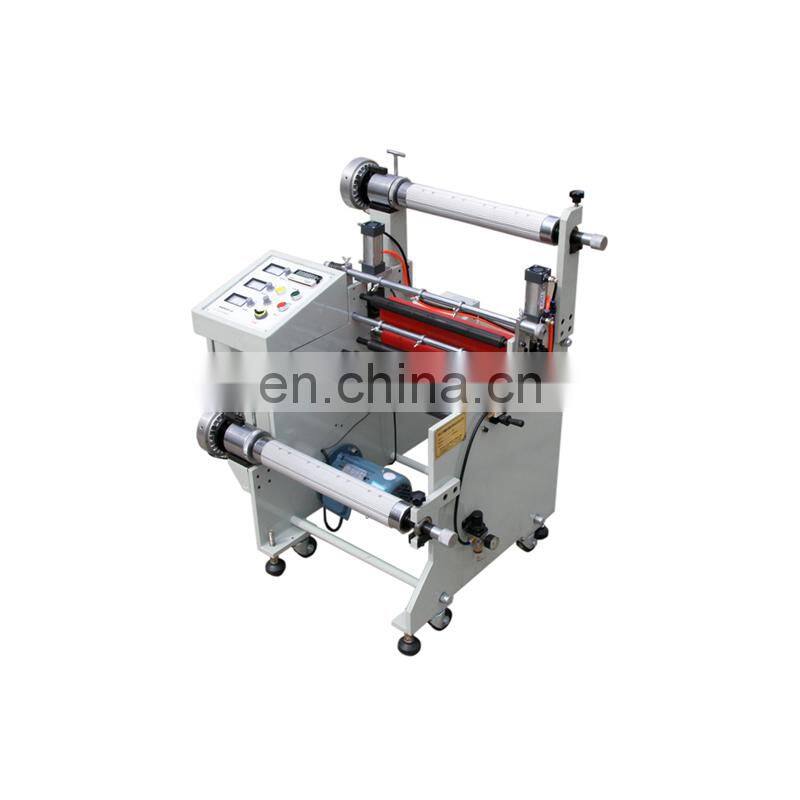

PE foam/PVC application film/Plastic door laminating machine
Main Technical Parameter:
|
Model |
HX-420T |
|
Max Web Width |
420mm |
|
Max.Feeding Diameter |
500mm |
|
Sticking Speed |
60m / min |
|
Sticking Precision |
±0.3 |
|
Main Motor Power |
0.75kw |
|
Total Power |
1.5kw |
Features:
1. Max feeding width: 420mm
2. Speed: 60m/min
3. Material thickness: 0.05-3mm
4. Tolerence: +/-0.2mm
5. Precision: 0.3mm
6. Under CE and ISO
7. OEM or ODM can be customized
8. Manufacturing experience: 30 years
9. Export experience: 20 years
Functions:
1. This machine is applicable to stick the narrow scope paper
2. It automatically count meter, set length, stop and alarm, unwind
3. Tension is controlled by magnetic clutch,
4. High precision, high speed, easy to operate
Application: Laminating and sticking for materials with base glue and other materials.
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines

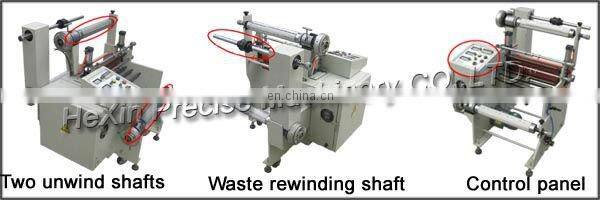

Waste rewinding shaft
Two unwinding shafts
Rewinding shaft for final product
