Help Center5 Shafts Hot Sale Multilayer Laminator Machine
Related Products

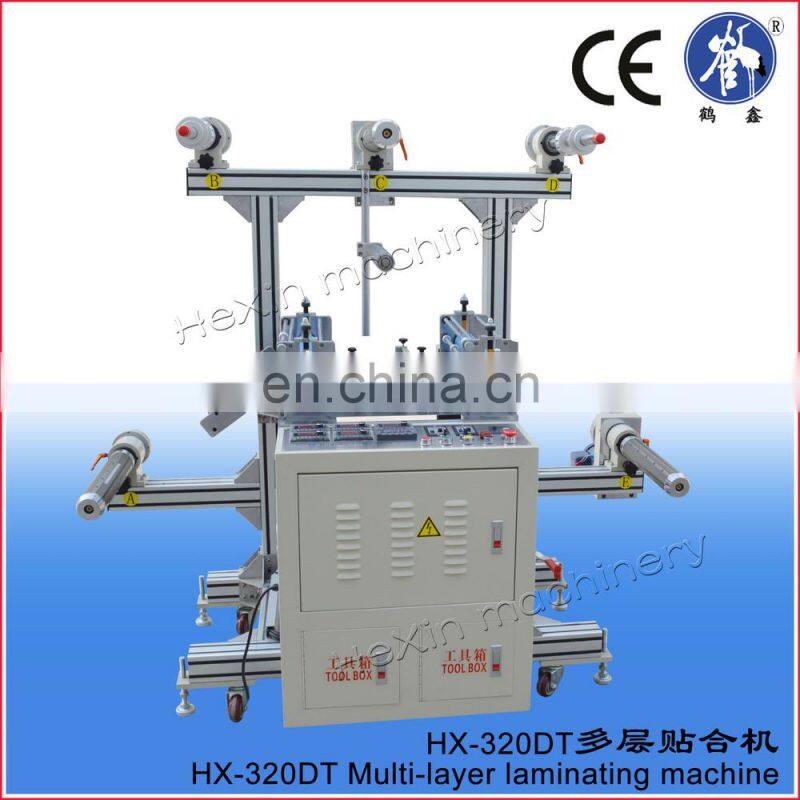

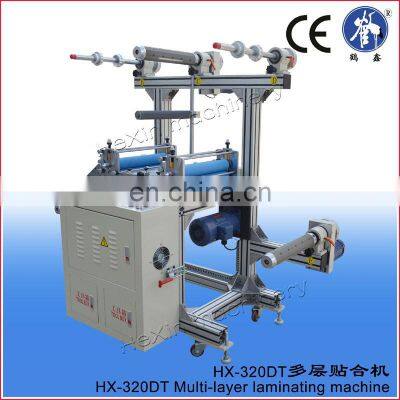

5 shafts hot sale multilayer Laminator Machine
|
Model |
HX-320DT(5 shafts) |
HX-420DT(5 shafts) |
|
Unwinding Shaft (sets) |
3 |
3 |
|
Winding Shaft (sets) |
2 |
2 |
|
Max Laminating Width(mm) |
320mm |
420mm |
|
Laminating Speed(times/h) |
0-1500m/hour |
0-1500m/hour |
|
Laminating Precision(mm) |
±0.1mm |
±0.1mm |
|
Winding Diameter(mm) |
600mm |
600mm |
|
Tension Controller (sets) |
5 |
5 |
|
Power Supply(v) |
220v |
220v |
|
Machine weight (kg) |
250kg |
280kg |
|
Machine Dimensions(mm) |
1600x1500x800mm |
1600x1500x800mm |
|
Machine Power |
900w |
900w |
1.The working width up to 320mm/420mm
2.Laminating thickness up to 5mm
3.the laminating positioning precision can reach 0.1mm.(can laminating many strips at one time)
4.Unwinding and rewinding with 3 inch pneumatic compressed shaft
5.With movable feet design, it can be moved and used conveniently.
6.The laminating tension is totally controlled by magnetic power ,it make sure the flatness of the
laminating material.
7.Automatic stop sensor for unwinding and rewinding
8.Each parts independently speed control,tension control,easy to operate.
9.Each pair laminating rollers can be adjusted separately to get right pressure and space.
10.Multiple sets of waste discharge shaft.
Working process:
Unwinding-laminating-waste discharge-laminating-waste discharge-rewinding
(5 shaft,three layer laminating)
Unwinding-laminating-waste discharge-laminating-waste discharge-laminating-rewinding
(7 shaft,four layer laminating)
Ideal for laminating single-faced glue and two-faced glue tapes,
paper,strips,3M tape,aluminum foil,copper foil,conductive fabric,foam and so on.
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
Here is the working vedio of this multilayer Laminator Machine ,please link.
/v_show/id_XMjAzMjIwMzM2.html
Unwinding with pneumatic compressed shaft for 3" cores

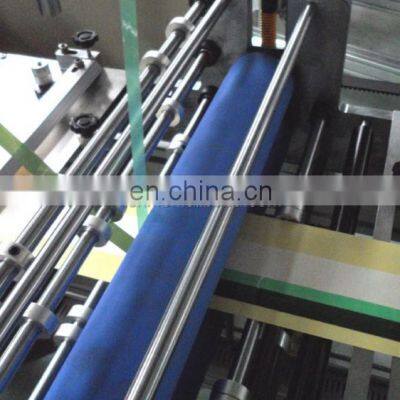

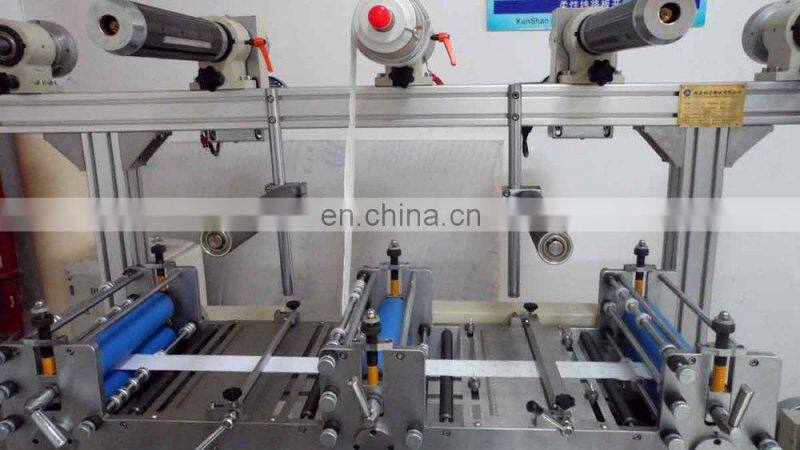

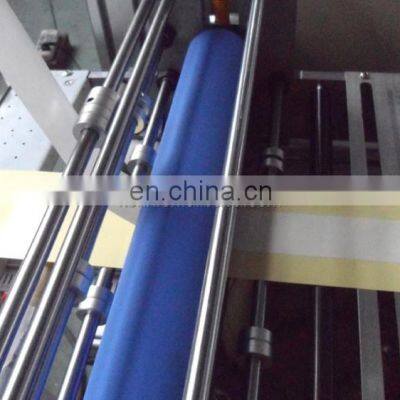

Laminating platform

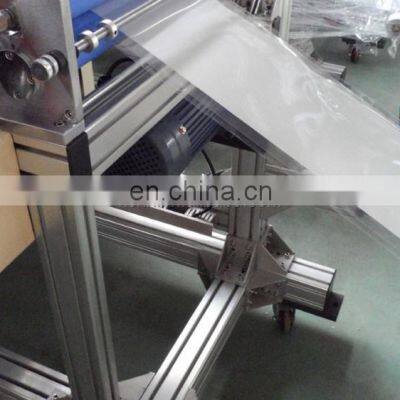

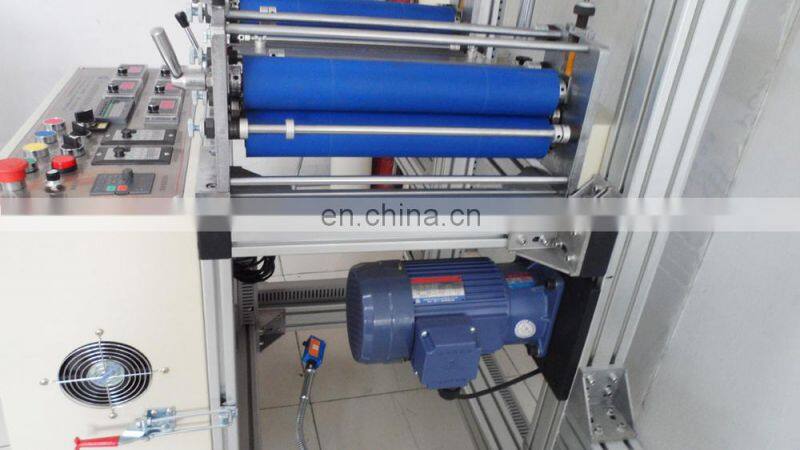

Motor and stop sensor
Our factory
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed
address is: Factory 9, No. 157, Wulian Road, Yushan Town,Kunshan, Suzhou, Jiangsu,
China. If you fly to Shanghai hongqiao airport or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting machines,
laminating machines and rotary die cutting machines.
4. Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.
5. Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the incoming
materials to the finished products. Our factory has obtained CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize products
according to your requirement.
Welcome your enquiry !
