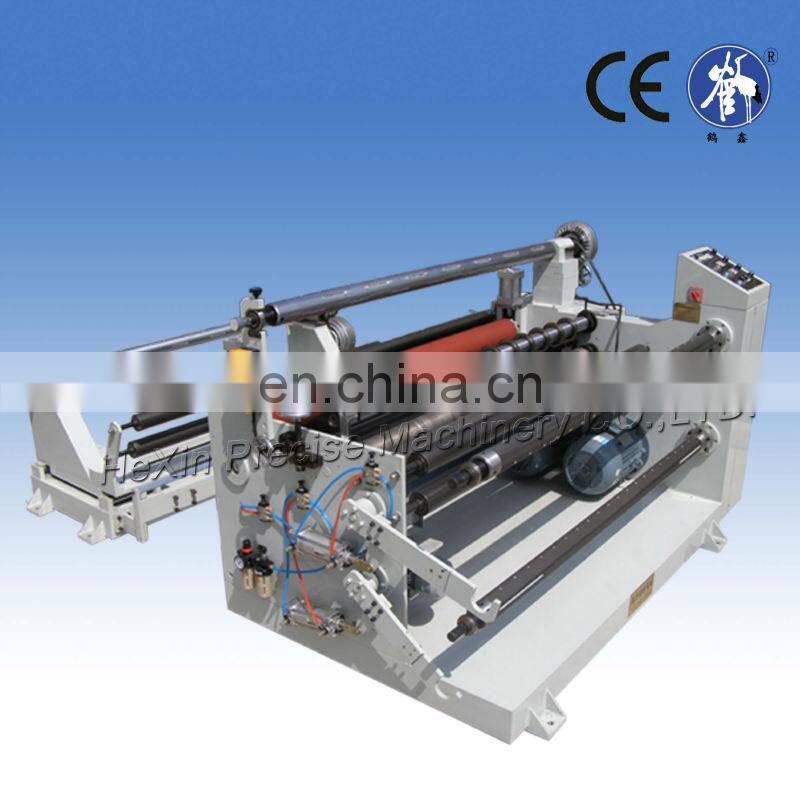

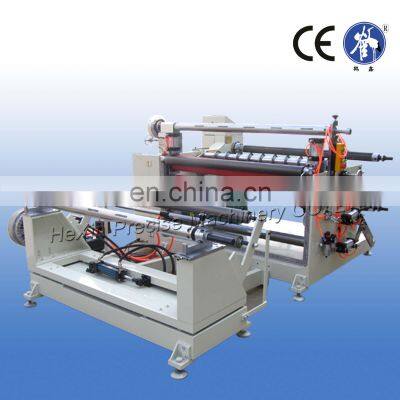

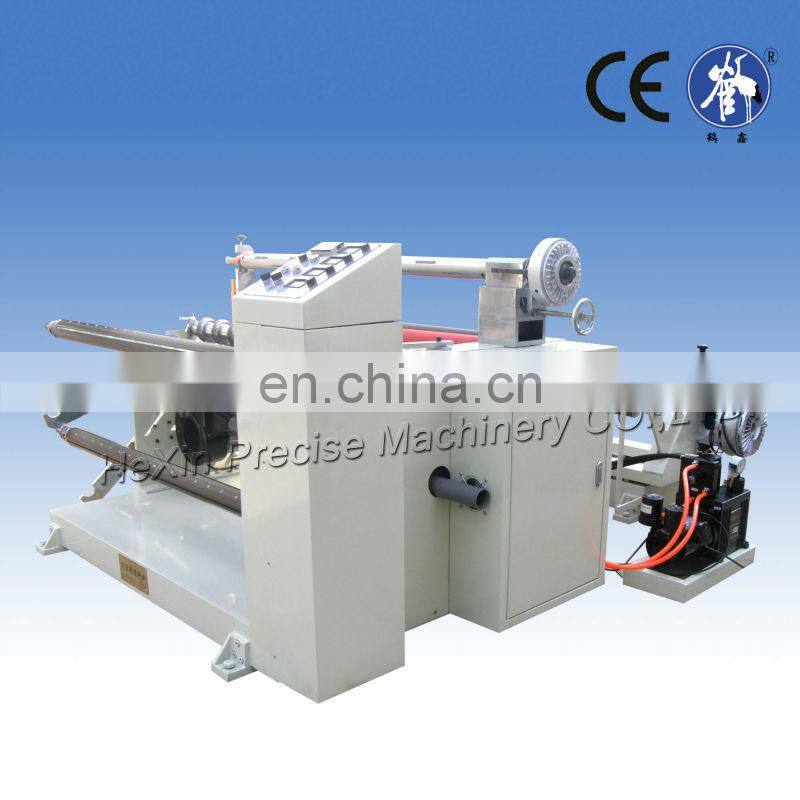

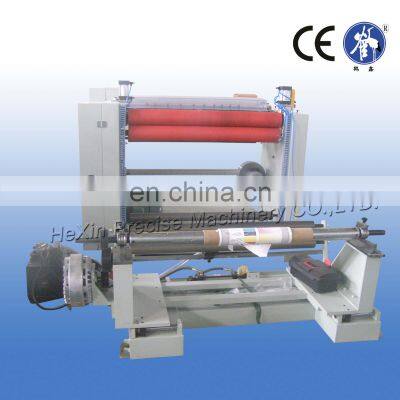

Protective film Laminating and Slitting Machine(HX-1300FQ)
Main Technical Parameter:
|
Model |
HX-1300 |
HX-1600 |
|
Max feeding Width |
1300mm |
1600mm |
|
Main Engineer Power |
6kw |
6kw |
|
Speed |
80m/min |
80m/min |
|
Size |
2400*2000*1300mm |
2400*2300*1600mm |
|
Weight |
1200kg |
1500kg |
|
Unwinding Diameter |
600mm |
800mm |
|
Winding Diameter |
450mm |
450mm |
|
Precision |
±0.1mm |
±0.1mm |
|
Power |
380v 50hz |
380v 50hz |
Features:
1. The max width: 1300mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. OEM and Label offered are available
Charatertistics and Functions:
1. This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.
Details of Protective film Laminating and Slitting Machine

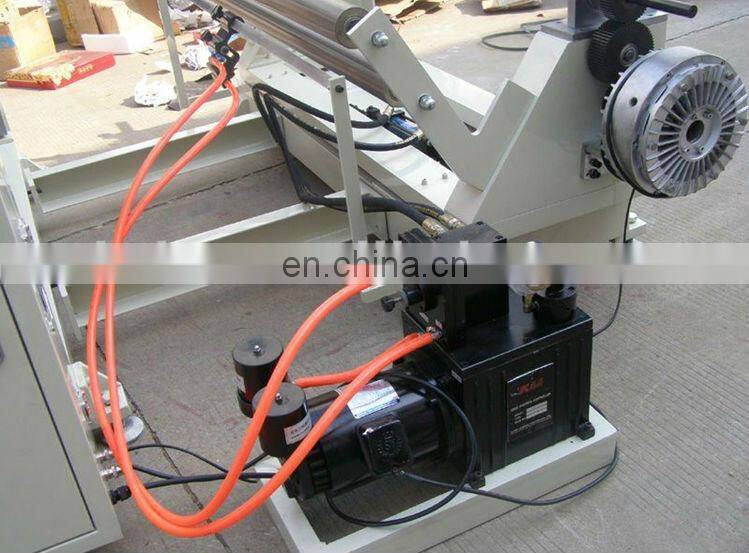

rectification controller

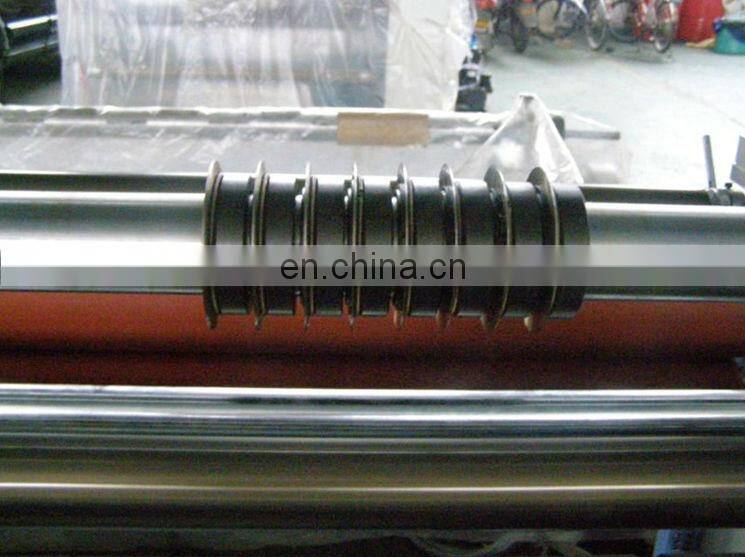

slitting knife
Packing Detail of Protective film Laminating and Slitting Machine
Trade Exhibition
Welcome to visit our factory in China .
Or check the photo regarding our factory on website .
All of our products are made according to customers’ requests .
FAQ:
1.Q: Are you a factory or trading company?
A:We are a factory and manufacturer
2.Q: Where is your factory located? How can I visit there?
A:Our factory is located in Room 8, No. 157, Wulian Road, Yushan Town, Kunshan, Suzhou, Jiangsu, China (Mainland). You can fly to Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:what is your main products ?
A:Those are Slititng machine,sheeting machine,laminating machine and Die cutting machine
4.Q: Which industries are widely used in of your machine?
A: Those are mainly used in forming of three industries of adhesives products, electronics, and new energy power battery. Examples of copper/aluminum foil, fabric, adhesive products, mobile phone accessories, insulation film, diffuser,silicon rubber, automotive adhesives tapes and strip,paper etc.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. HEXIN always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE & ISO Certification
