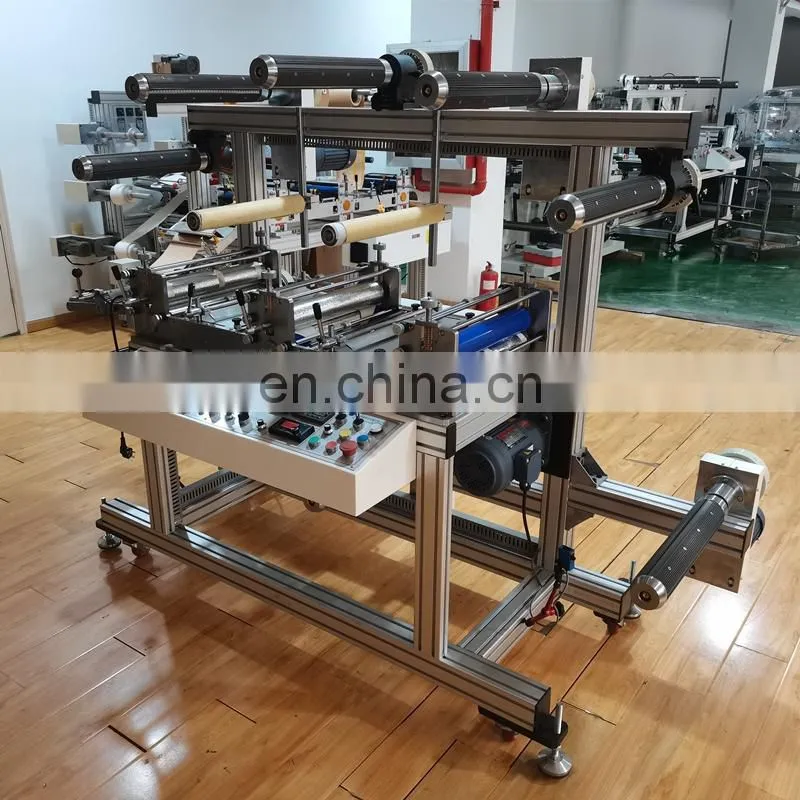

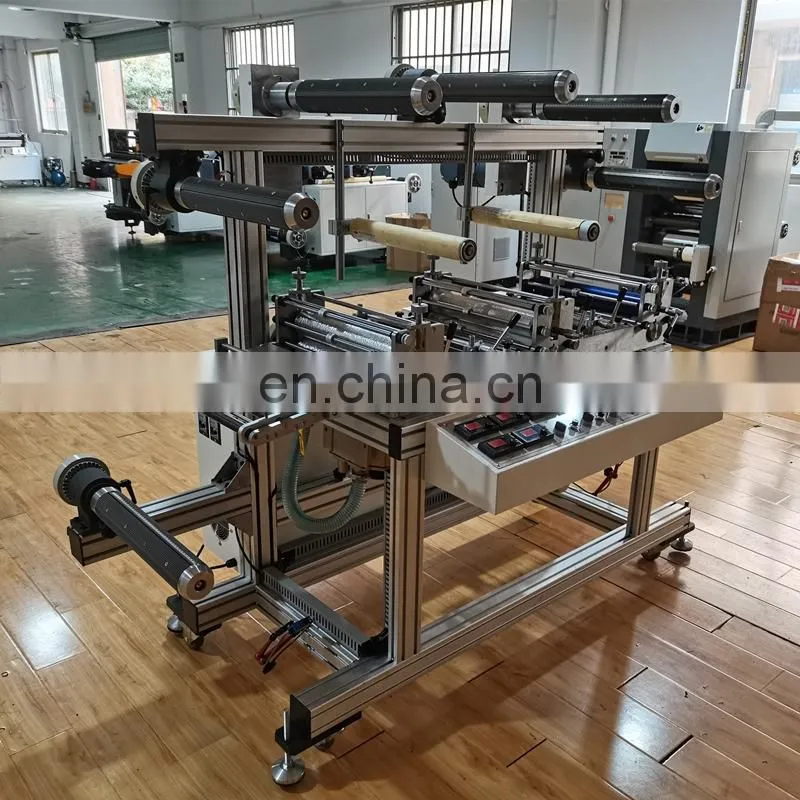

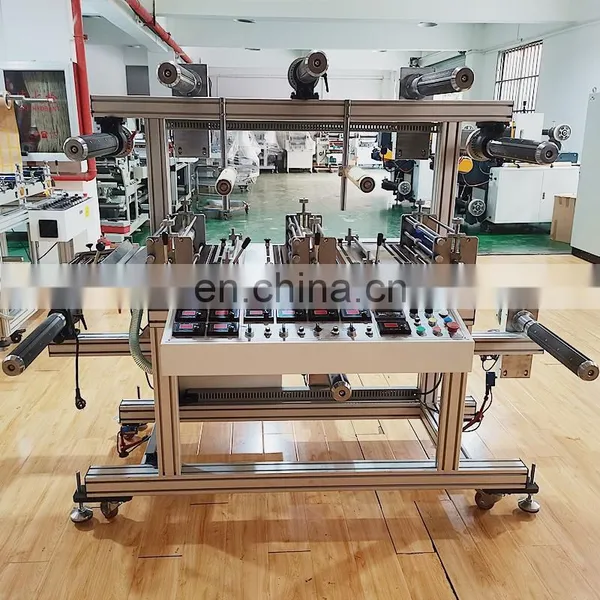

Automatic Multi layers Cold Laminating Machine
There are two models of this cold laminator :
|
Model |

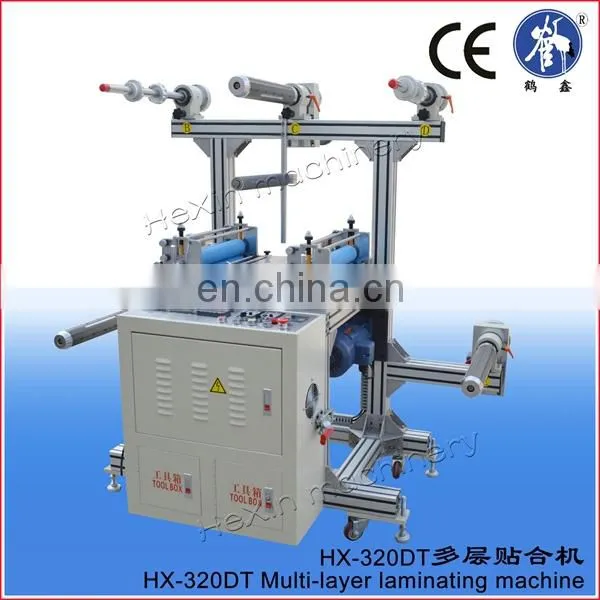

HX-320DT(5 shafts) |
HX-420DT(5 shafts) |
|
Unwinding Shaft (sets) |
3 |
3 |
|
Rewinding Shaft (sets) |
2 |
2 |
|
Max Laminating Width(mm) |
320mm |
420mm |
|
Laminating Speed(times/h) |
0-1500m/h |
0-1500m/h |
|
Laminating Precision(mm) |
±0.1mm |
±0.1mm |
|
Winding Diameter(mm) |
600mm |
600mm |
|
Tension Controller (sets) |
5 |
5 |
|
Power Supply(v) |
220v |
220v |
|
Machine weight (kg) |
250kg |
280kg |
|
Machine Dimensions(mm) |
1600x1500x800mm |
1750x1250x1600mm |
|
Machine Power |
900w |
900w |
1. Max material width: 320mm;
2. Laminating thickness: Up to 5mm;
3. Laminating speed: 0-1500m/min;
4. Tolerance: 0.05mm;
5. Precision: 0.1mm;

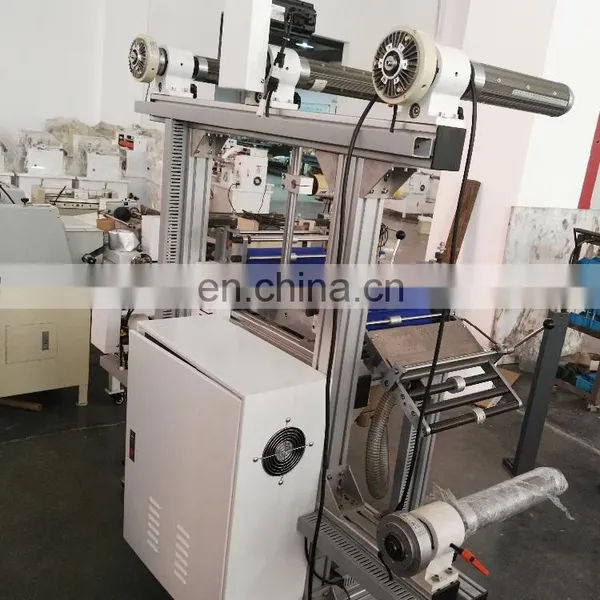

6. This cold laminator adopts magnetic powder tension controller to achieve smooth lamination;

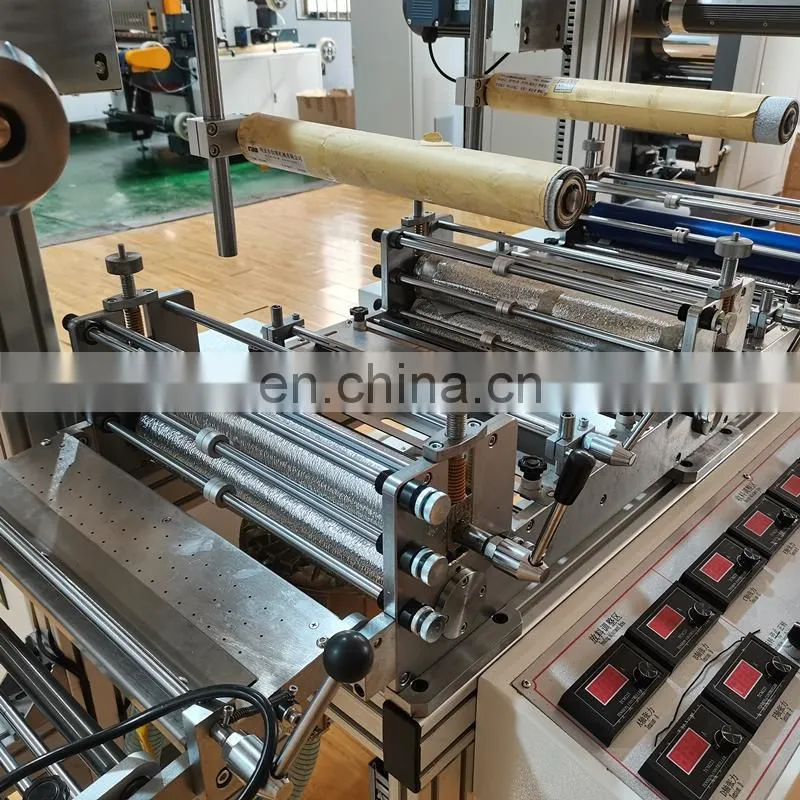

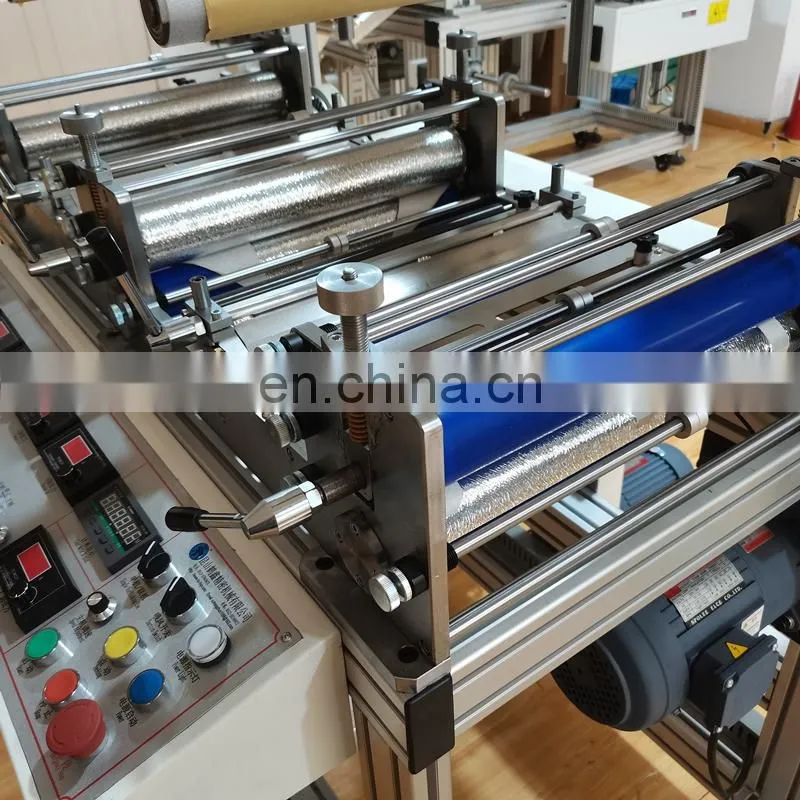

7. Each pair rubber rollers can be adjusted separately to get right pressure and space.
8. Standard working procedure: Feeding---Laminating---Waste Discharging---Laminating---Waste Discharging---Rewinding
9. Humanized design with castors, being able to move;
10. We have different models of 5 shafts, 7 shafts, and 8 shafts to meet various demands;
11. It is easy and convenient to operate;
12. Holding CE and ISO certifications;
For materials that need to laminated into multi layers.
1. A warranty period of 12months;
2. A reply within 24 hours;
3. A free training in our factory before delivering;

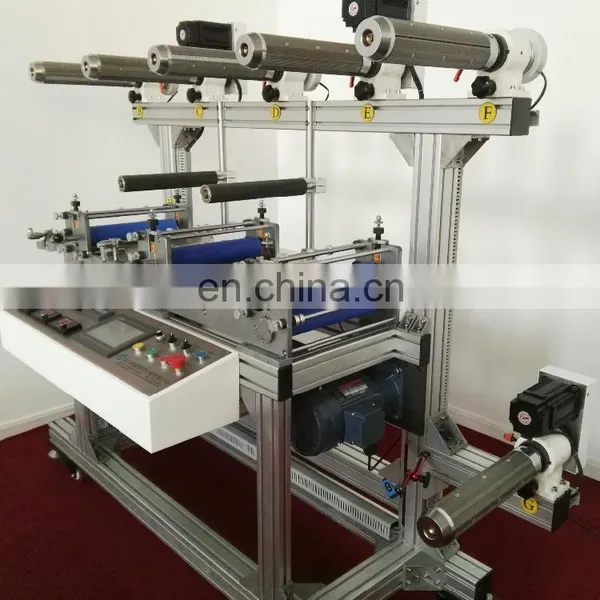

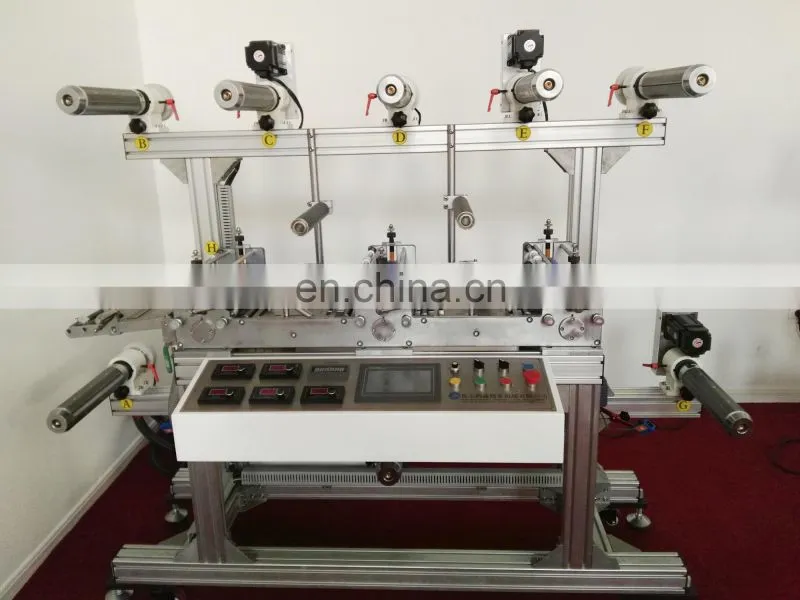

Details of this cold laminator :

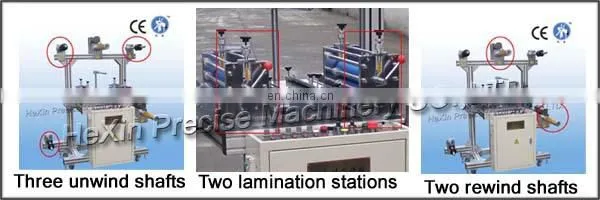

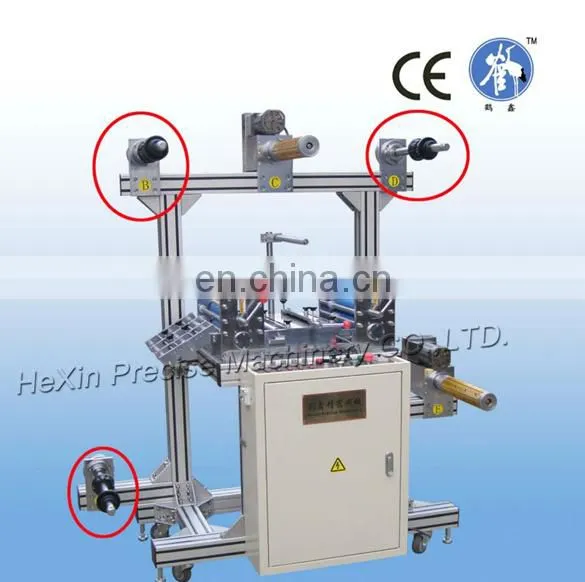

Three unwinding shafts

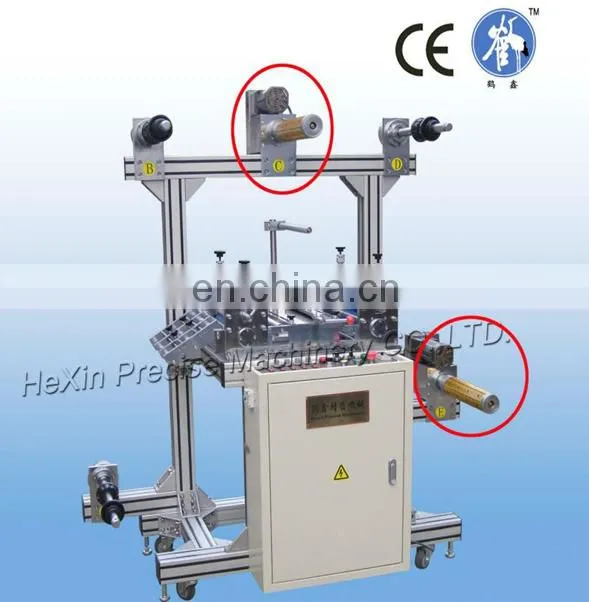

Two rewinding shafts
Exhibition:
Packing( cold laminator ):
1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer.
2. Q: Where is your factory located in? How can I visit there?
A:Our factory is located in Building 9, No. 157, Wulian Road, Yushan Town, Kunshan, Suzhou City, Jiangsu Province, China (Mainland). You can fly to Shanghai airport directly. We warmly welcome all our clients from home and abroad to visit us!
3. Q: What are your main products ?
A: Our main products are slitting machines, sheeting machines, laminating machines and Die cutting machines.
4. Q: Which industries are your machines widely used in ?
A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification.
6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize products according to your requirements.
