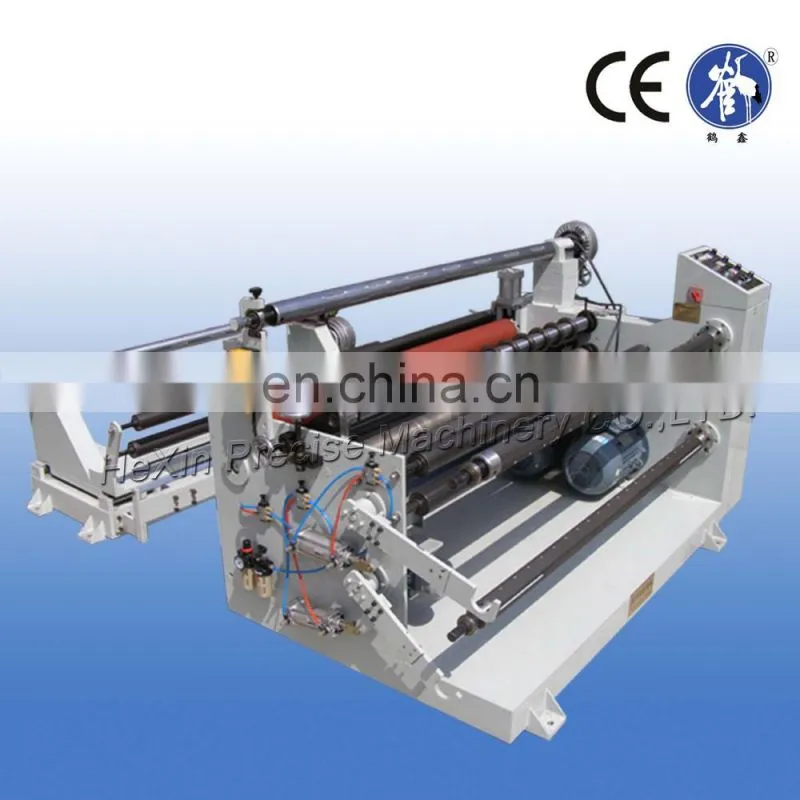

Barcode Ribbon TTR slitting machine
|
Model |
HX-1300 |
HX-1600 |
|
Max feeding Width |
1300mm |
1600mm |
|
Main Engineer Power |
6kw |
6kw |
|
Slitting speed |
80m/min |
80m/min |
|
Size |
2400*2000*1300mm |
2400*2300*1600mm |
|
Weight |
1200kg |
1500kg |
|
Unwinding Diameter |
600mm |
800mm |
|
Winding Diameter |
450mm |
450mm |
|
Precision |
±0.1mm |
±0.1mm |
|
Power |
380v 50hz |
380v 50hz |
1. This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
According to the width of your material and slitting needs, we can recommend suitable slitter.
HX-320FQ for Max 320mm width material slitting.
HX-550FQ for Max 550mm width material slitting.
HX-650FQ for Max 650mm width material slitting.
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.
Linking below for the vedio of laminating and slitting machine
/v_show/id_XNDM3ODg5NjU2.html laminating and slitting
/v_show/id_XMjE3NjcyMDQ4.html only slitting

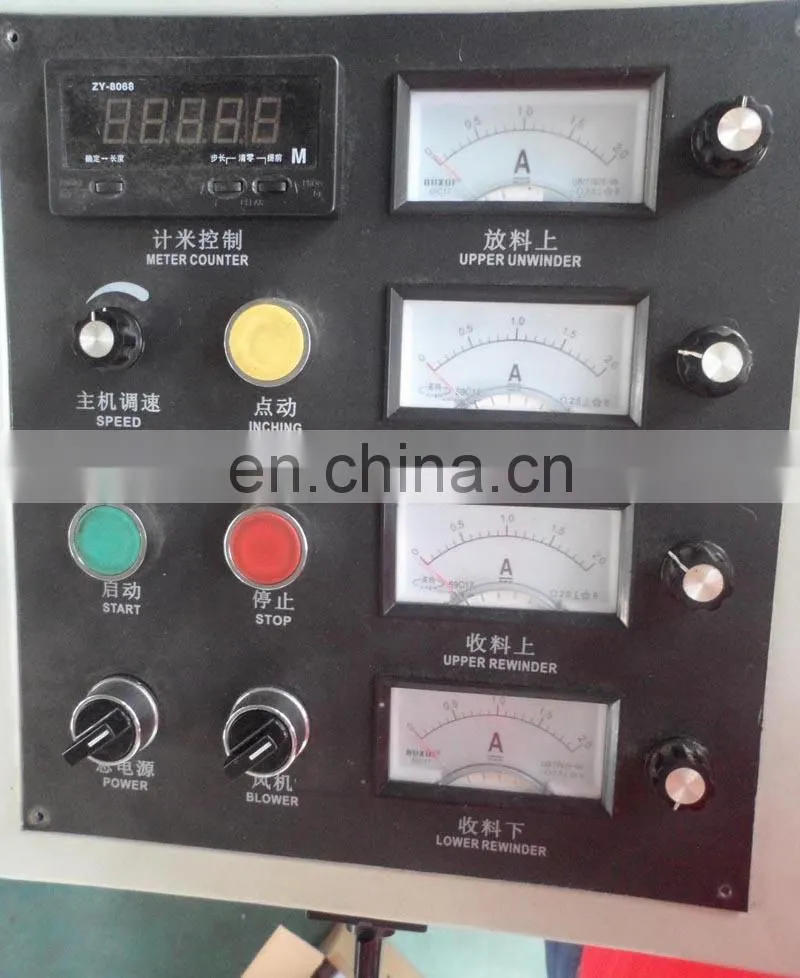

Control pannel

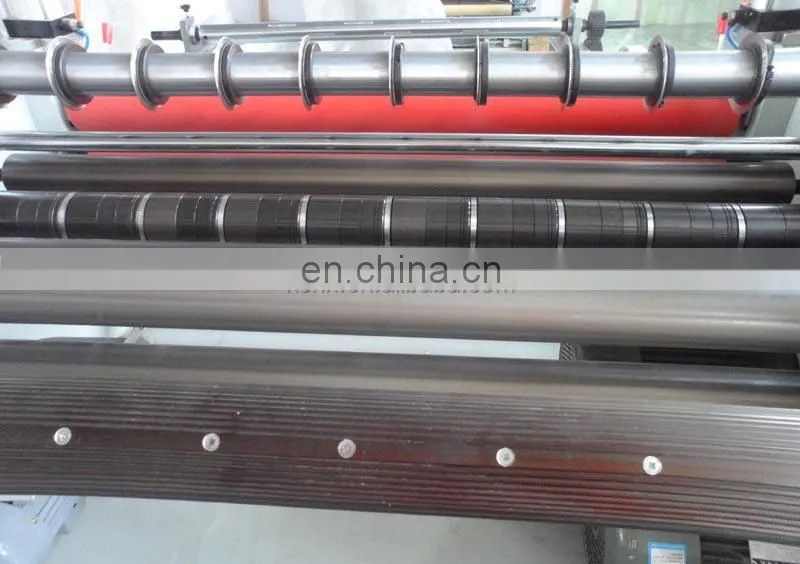

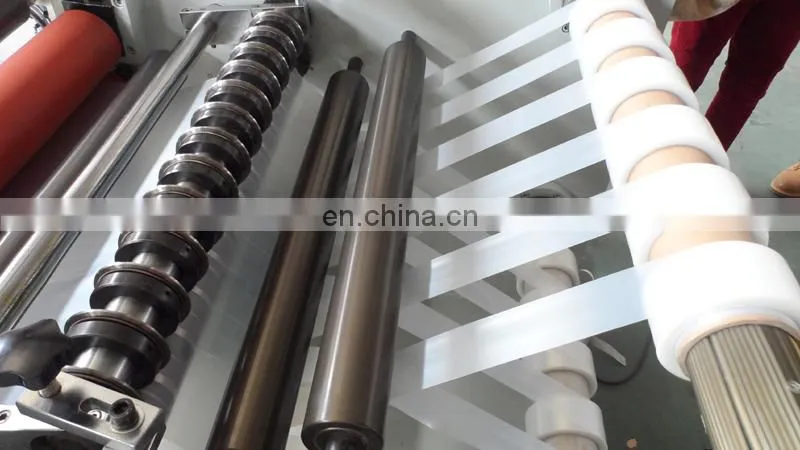

Slitting knives

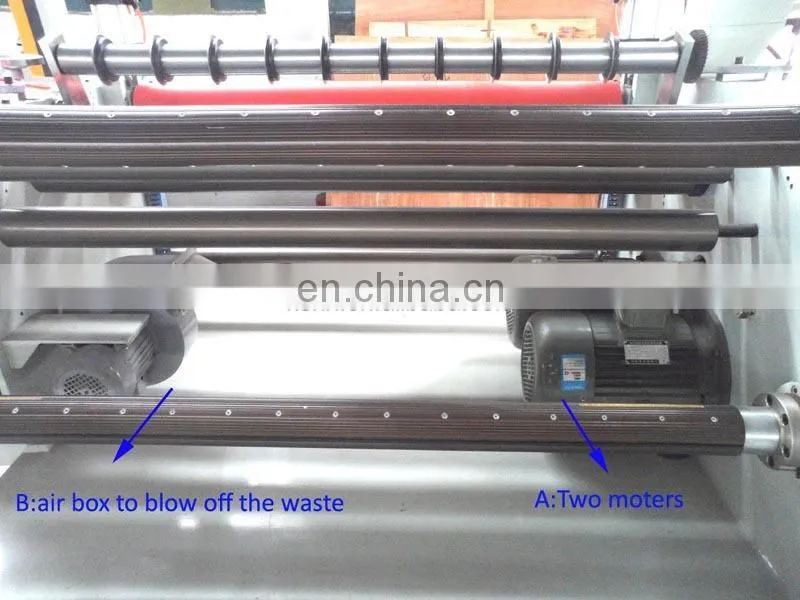

moters and air box(blow away the waste )

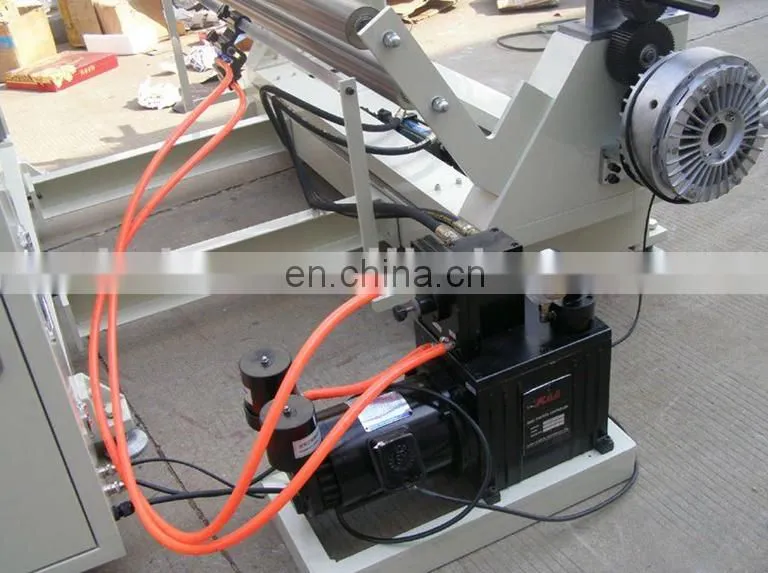

Rectification controller

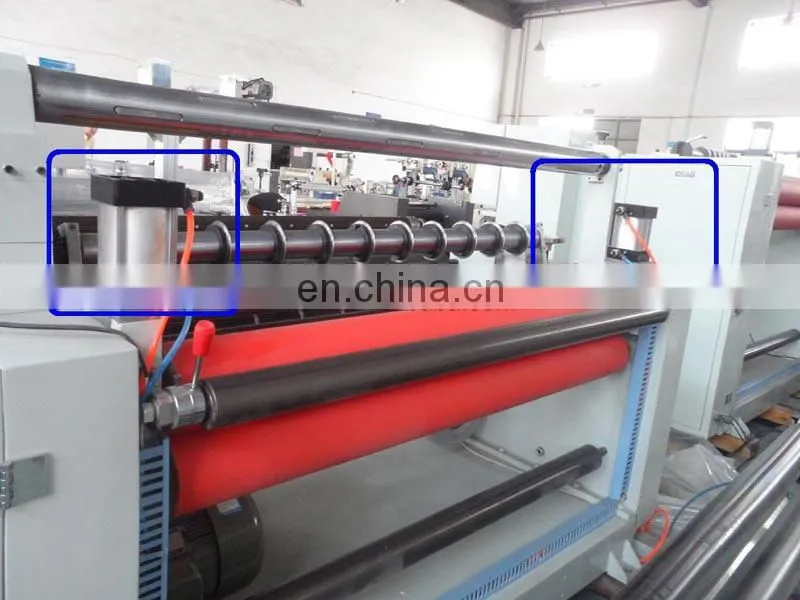

air cylinder
Rewinder
Related 650mm wide TTR slitting machine,click below picture for more details.
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed
address is: Factory 9, No. 157, Wulian Road, Yushan Town,Kunshan, Suzhou, Jiangsu.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting machines,
laminating machines and rotary die cutting machines.
4. Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.
5. Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the incoming
materials to the finished products. Our factory has obtained CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize products
according to your requirement.
Welcome your enquiry !
