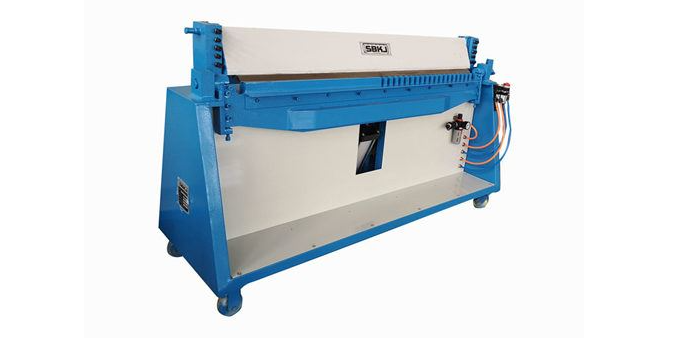

Pneumatic Folding Machine
Pneumatic folding machine adopts the 4-cylinder pneumatic system as the power source. When the other two are used for pressing, two cylinders are used for bending. It can work stably without power supply, just connect the air pump.
Description
Pneumatic folding machine adopts the 4-cylinder pneumatic system as the power source. When the other two are used for pressing, two cylinders are used for bending. It can work stably without power supply, just connect the air pump. Workers can operate the upper mold up and down, fold and release by controlling the foot pedal. Usually two people are required to operate the pneumatic folding machine. The maximum folding thickness is 1.5 mm. There are two types to choose from. If you only want to bend the flat plate, the pneumatic flat plate has a better chance of folding. If you need to bend TDF sheets, you must choose a pneumatic TDF folding machine, or you can use it to bend flat plates. As an efficient equipment for bending sheet metal of TDF flange ducts, this machine can be customized according to customer requirements. As part of the rectangular heating and ventilation duct forming machine, the pneumatic TDF sheet metal bending machine can be used in conjunction with other rectangular duct forming machines to complete an overall duct processing, such as electric shears, lock forming machines, TDF flanges We can provide a complete series of machines according to the requirements of different customers and the actual operating environment for forming machines, slotting machines, lock stitching machines, clip cutting machines, etc. As a professional supplier of HVAC pipe manufacturing machines.
Technical Data
Type |
SBWS-1.2×1500P |
SBWS-1.2×2000P |
SBWS-1.2×2500P |
Angle |
90°-180° |
90°-180° |
90°-180° |
Thickness |
0.4-1.5 mm |
0.4-1.2 mm |
0.4-1.2mm |
Weight |
430 kg |
490 kg |
550kg |
Pressure |
0.6 Pa |
0.6 Pa |
0.6 Pa |
Dimension |
2100*650*1100 mm |
2450*650*1100 mm |
3100*650*1100 mm |
