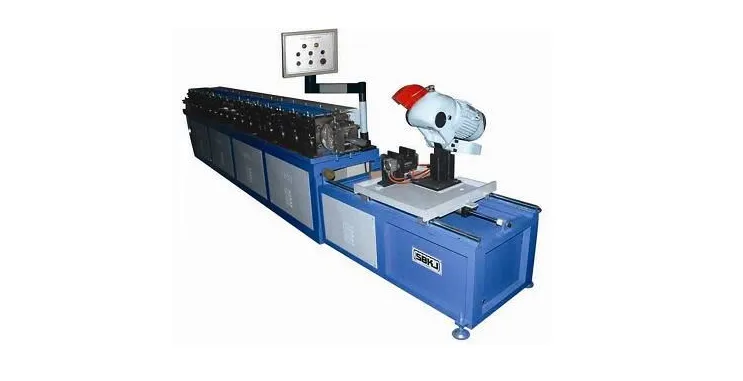

TDC FLANGE FORMING MACHINE
TDC unit is one of the two universal flange making systems in the world. It can save time and material drastically with its well-seal, strong and durable joint structure. So it is specially suitable for producing a duct with a large sectional area.
Description
TDC unit is one of the two universal flange making systems in the world. It can save time and material drastically with its well-seal, strong and durable joint structure. So it is specially suitable for producing a duct with a large sectional area. Today many famous buildings in the world utilize this kind of structure in the ventilation system such as the American Kennedy Space Center, Guangzhou CITIC Plaza etc. The unit consists of a feeding frame, main forming machine and a shearing unit, which includes grinder and hydraulic shearing unit. The hydraulic shearing unit makes fixed cutting available with very little burr, and may be operated automatically with a maximum work speed of 6 m/min. It is divided into four types: T-20, T-30, T-35, T-40 with their corresponding duct corner T-20DC, T-30DC and T-40DC. TDC made by SBKJ may match and produce all the ducts in the DW144 standard, and has passed the HVAC PW/TMI (1987) pressure test, which is a special test for the intensity and sealed condition of a duct.
Technical Data
Type |
Rolls Shape |
Strip Width (mm) |
Thickness (mm) |
Motor Power (Kw) |
Weight (Kg) |
Dimension (mm) |
SBTDC-20A |
|
89 |
0.8 |
3 |
2000 |
2800×600×1150 |
SBTDC-25A |
99 |
0.8 |
3 |
2000 |
2800×600×1150 |
|
SBTDC-30A |
121 |
1.0 |
3 |
2200 |
3000×600×1150 |
|
SBTDC-35A |
131 |
1.0 |
3 |
3000 |
3200×600×1200 |
|
SBTDC-40A |
146 |
1.2 |
4 |
3000 |
3200×600×1200 |
|
SBTDC-20B |
|
86 |
0.8 |
3 |
2000 |
2800×600×1150 |
SBTDC-25B |
96 |
0.8 |
3 |
2000 |
2800×600×1150 |
|
SBTDC-30B |
118 |
1.0 |
3 |
2200 |
3000×600×1150 |
|
SBTDC-35B |
128 |
1.0 |
4 |
3000 |
3200×600×1200 |
Type |
Name |
Capacity |
Size |
Shape |
T-20DC |
Duct comer |
2.5mm |
a=95mm |
|
T-30DC |
Duct comer |
3mm |
a=105mm |
|
T-40DC |
Duct comer |
3.5mm |
a=123mm |
|
LT-30 |
Duct comer |
3mm |
a=105mm |
|
T-35DC |
Duct comer |
3mm |
a=106mm |
|
BC-10 |
Duct clip |
5mm |
|
