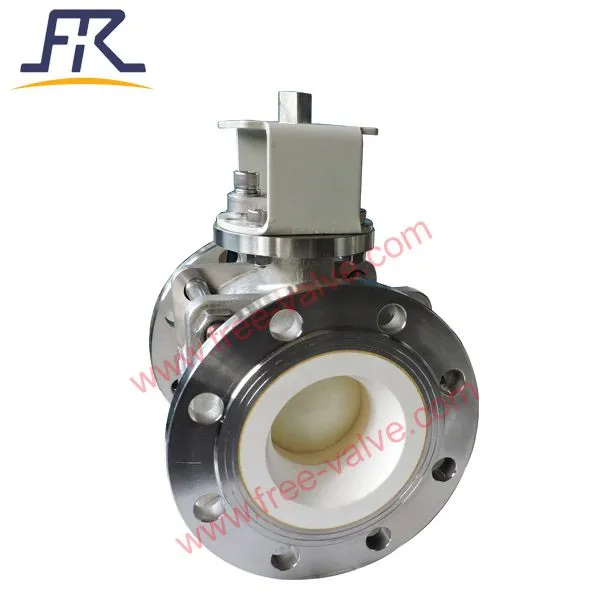

ZrO2 ball Al2O3 seat Complex Ceramic Lined Chemical Resistant Ball Valve

Name: ZrO2 ball Al2O3 seat Complex Ceramic Lined Chemical Resistant Ball Valve
Brand: FREE-VALVE
Price: $500 - 800 / Set

FOB Price

500 - 800 / Set

2 Sets(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Shanghai Port
Payment Terms:T/T L/C D/P D/A
Delivery Detail:25 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	FREE-VALVE	Place of Origin:	China	Model Number:	FRQ41TC
Material:	Casting	Structure:	Ball	Standard or Nonstandard:	Standard
Pressure:	Medium Pressure	Power:	Manual	Port Size:	2“-8“
Media:	Other, Abrasive and corrosive medium	Temperature of Media:	Medium Temperature

Packaging Details

Ply-Wooden Box

Product Description

Ceramic Ball Machining

FREE-VALVE’s ZrO2 ball Al2O3 seat Complex Ceramic Lined Chemical Resistant Ball Valves are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids .

Features:

1.The hardness of the ceramic material can be higher than HRC80.

2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.

3.Customized actuation types are installed on the ceramic ball valve, the manual lever or gear box, as well as with pneumatic and electric actuators.

4.Customized V type ceramic control valve is also available.

5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.

6.The valve body is in the form of 3-PCS.

Technical Specification

Thread Standards:GB,NPT,BSPT

Nominal Pressure 1.0MPa,Class150

Size Range :2"-8"

Connection type:Flange End

Working Temperature ≤200℃

Operating Type:Manual operation, Pneumatic ,Electric

Sealing surface material:Engineering ceramic

Ball material:Engineer ceramic

Pressure test :GB/T13927, API598

Face to Face :GB/T12221, ASME B16.10

Application

FREE-VALVE’s ZrO2 ball Al2O3 seat Complex Ceramic Lined Chemical Resistant Ball Valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment,Glue industry and food industry.

Model：FRQ11TC,FRQ311TC,FRQ611TC

Price terms:FOB,CIF,FCA,CFR

Price:100-500USD/set

Origin:China

Brand:FREE-VALVE
