Help CenterFully Ceramic -Lined Flow Path Pneumatic Ball Valve
Related Products
-
FRZ73TC Wafer Type Ceramic Knife Gate Valve for Fly Ash SystemUS$ 500 - 5000MOQ: 1 Piece -
FRZ73TC Wafer Type Ceramic Knife Gate Valve for LimestoneUS$ 500 - 5000MOQ: 1 Piece
-
Pneumatic Resistant Ceramic Lined Double Disc Gate Valve For LimestoneUS$ 500 - 5000MOQ: 2 Sets
-
FRZ73TC Wafer Type Fully Ceramic Lined Knife Gate ValveUS$ 500 - 5000MOQ: 1 Piece
-
Pneumatic Operation Short Type Ceramic Twin Disc Gate Valve FRZ674TCUS$ 400 - 5000MOQ: 1 Piece

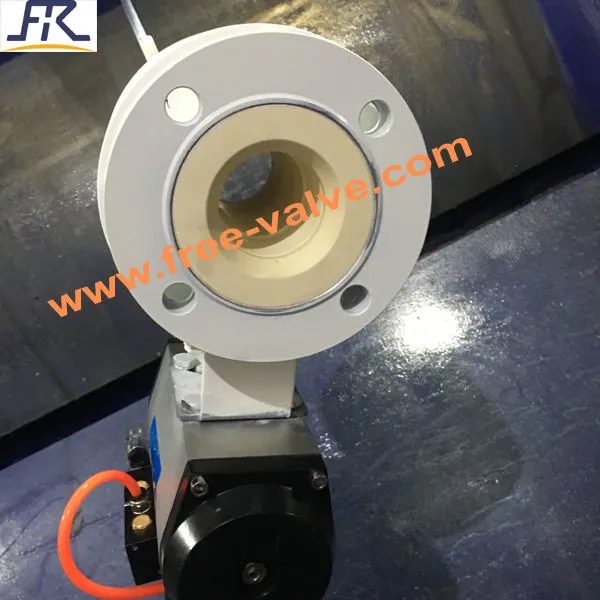

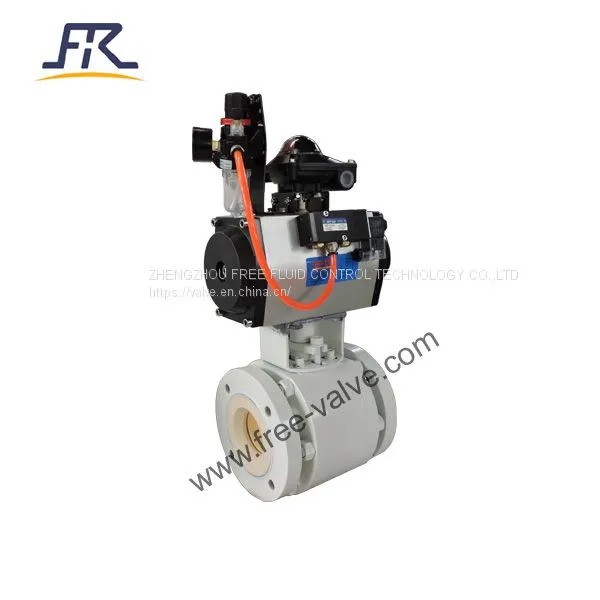

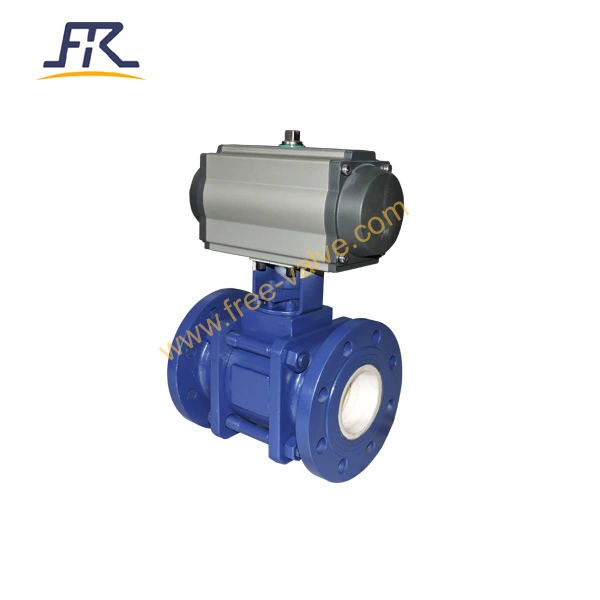

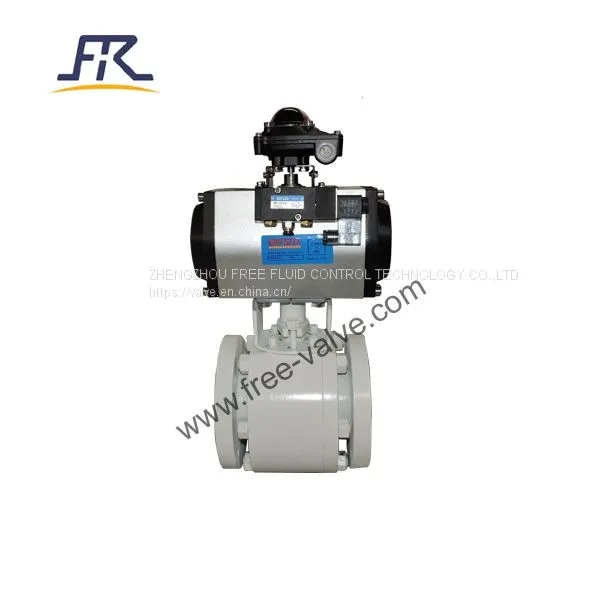

FREE-VALVE brand fully ceramic lined flow path pneumatic ball valves are designed with engineering ceramics as internal parts provide excellent wear resistance, the ceramic ball valves are widely used as on-off function as well as control function in corrosive medium with abrasive particles .
Features:
1.The hardness of the ceramic material can be higher than HRC80.
2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
3.Fully ceramic flow path control valve,instead of easily wearing metallic parts in flow path,so you can operate the ball valve in 2 years .
4.Stainless steel valve body material makes the valve can be used in corrosive working condition ,such as seaside projects.
5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
6.The valve body is designed as 3-PCS.
Technical Specification
Nominal Pressure 1.0MPa,Class150
Size Range :DN10~DN 50
Connection type:Thread end,Flange end
Working Temperature ≤200℃
Operating Type:Manual operation, Pneumatic ,Electric
Sealing surface material:Engineering ceramic

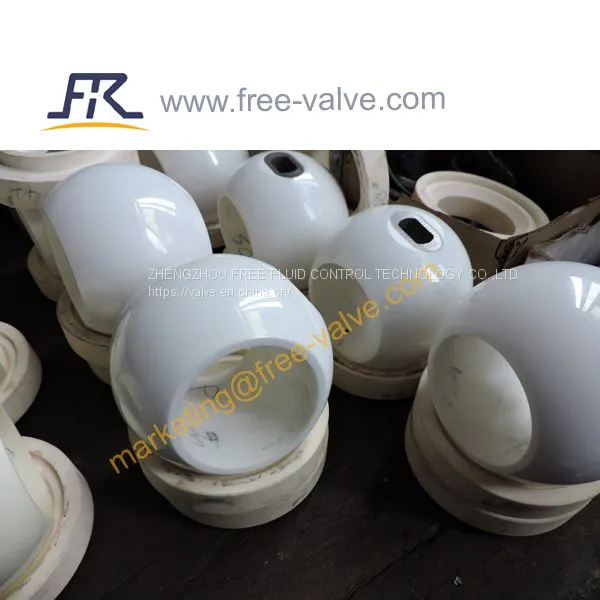

Ball material:Engineer ceramic
Pressure test GB/T13927, API598
Face to Face GB/T12221, ASME B16.10
Application
FREE-VALVE’s fully ceramic flow path ball valves are suitable for any slurries or fluids with hard particles.Such as Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment,Glue industry,chemical industry and food industry.
Model：FRQ11TC,FRQ311TC,FRQ611TC
Price terms:FOB,CIF,FCA,CFR
Price:100-500USD/set
Origin:China
Brand:FREE-VALVE
Zhengzhou Free Fluid Control Technology Co.,Ltd
Wechat ID:Free_Valve
Email:marketing@free-valve.com
Skype:marketing@free-valve.com
WhatsApp:+8613460250295
Mobile:+8619937155563
