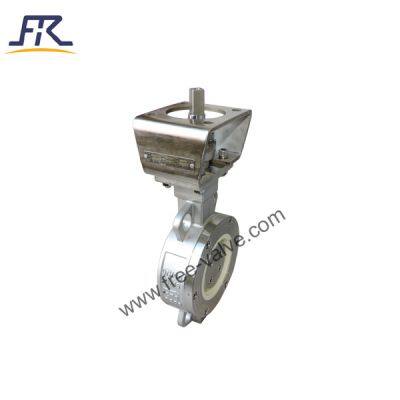

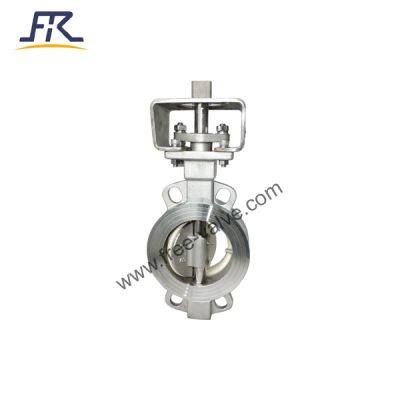

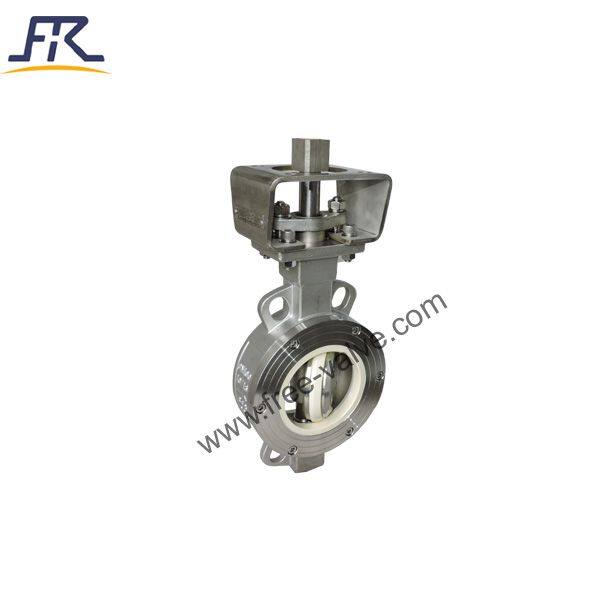

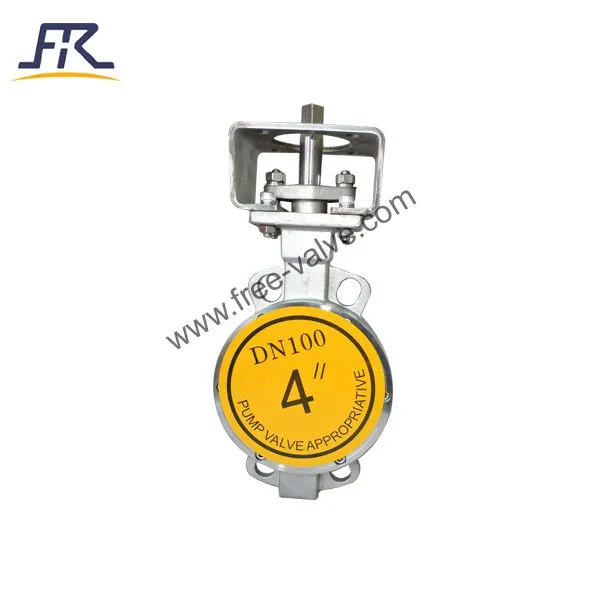

DN100 PN16 Ceramic Lined Butterfly Valve

FREE-VALVE’s DN100 PN16 ceramic lined  butterfly valves were operated in the harshest control environments and offers excellent resistant to cavitation which is major problem for process control valves. The ceramic materials are applied to the most common problem areas within disc of butterfly valve.These ceramic materials are 6-8 times harder than stainless steels and the result is a control valve that functions properly in a harsh, abrasive service environment.

Features

1.Wafer type ceramic butterfly valves are light and easy to install.

2.The disc sealing ring and seat are both high performance ceramics. High pure 99% Alumina, Zirconia and solid Tungsten carbide are used for wafer type ceramic butterfly valves. Different ceramics materials are suitable for different applications.

3.Body materials are selected on different applications.

4.Ceramics are nearly universally chemical resistant.

5.Much longer service life than any other common butterfly valves, and save maintenance cost for customers,due to high hardness and excellent corrosion resistance of high performance ceramics.

6.It has the inherent characteristic of the adjustable performance of butterfly valve.

Technical Specification:

1) Size Range: DN100

2) Pressure Range:PN16

3) Applicable Temperature: 0~200℃

4) Connection Type: Wafer

5) Sealing material: Engineering ceramics

6) Body material:CF8

7) Pressure test:GB/T13927

8) Face to Face: GB/T12221

9) Valve body : GB/T12224,

10)Operating Type: Pneumatic/manual/Electric

Application:

FREE-VALVE’s DN100 PN16  ceramic lined butterfly valves are suitable for all types of abrasive slurry including bauxite, Mining slag,Coal washing ,Ash Slurry, Ash,Grain,Quartz Sand,Metallurgical dust,etc

Price terms:FOB,CIF,FCA,CFR

Price:500-5000USD/set

Payment terms:TT,LC

Origin:China

Delivery time:30 days

Model:FRD71TC

Brand:FREE-VALVE
