Home > Products > Ceramic Valve > 8 inch class 150 Pneumatic Rotating Disc Valve

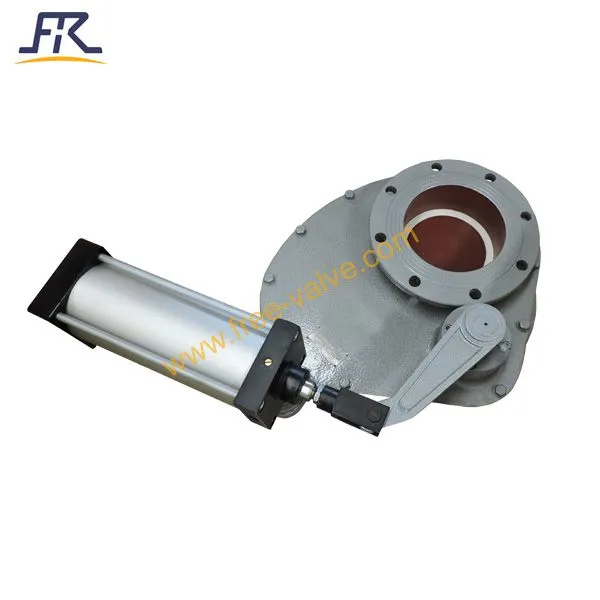

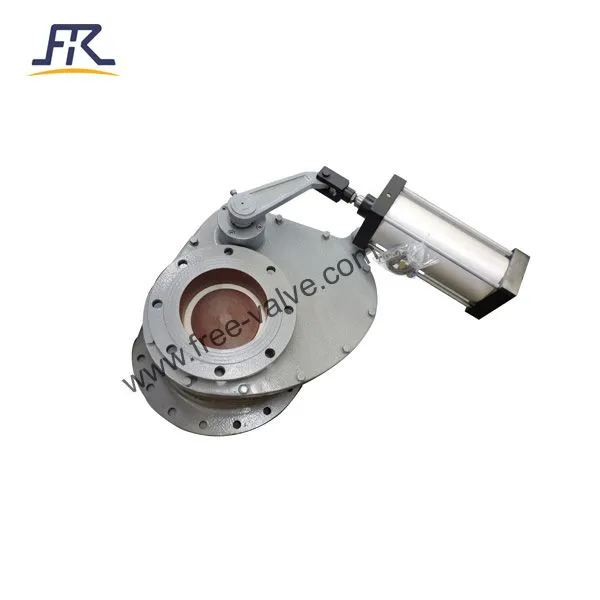

8 inch class 150 Pneumatic Rotating Disc Valve
- 200 Set / Sets per Month
- Shanghai Port
- T/T L/C D/P D/A
- 25 days
- DN80 PN16 Ceramic Lined Butterfly Valve
- DN100 PN16 Ceramic Lined Butterfly Valve
- FRZ73PU manual operation PU lined slurry knife gate valve
- PU Lining Abrasion - Resistant Slurry Knife Gate Valve for mining slurry
- Manual Wear Resistant Polyurethane Pu Seat slurry Knife Gate Valve
- FRZ73TC Wafer Type Ceramic Knife Gate Valve for slurry and fly ash system
Product Details
Brand Name: | FREE-VALVE | Place of Origin: | China | Model Number: | FRZ643TC |
Material: | Casting | Structure: | Other, Rotary Disc Valve | Standard or Nonstandard: | Standard |
Pressure: | Medium Pressure | Power: | Pneumatic | Port Size: | DN100-DN350 |
Media: | Other, Abrasive medium | Temperature of Media: | Medium Temperature |
Packaging Details
Ply-Wooden Box
Product Description
Pneumatic Ceramic Rotary Gate Valve
FREE-VALVE’s 8 inch class 150 pneumatic rotating disc valves are designed for pressurized and vacuum systems including dense and dilute phase pneumatic conveying systems, discharge and vent applications in steel plant and coal power. The double ceramic sealing faces of the valves are well ground and polished, which is ensure a reliable sealing performance of the valve,the valve is used to replace the dome valve in the pipe line of the ash system.
Features
1. The cylinder piston rod does not contact with the medium directly, which greatly prolongs the service life of the cylinder and has a higher service temperature without damaging the cylinder.
2. The sealing faces of the valve are protected and made toughened engineering ceramics with good abrasion resistance and prolonged service life.
3. Product with customized structural length and connection size is available.
4. The valve disc rotational motion can avoid the ash deposition on the sealing surface during opening and closing, so the valves have much longer service.
5. The spring between the disc and disc seat is loaded with a floating connection. The spring force of the disc always matches the valve seat, ensures the sealing of the valve, and also helps to compensate for expanding when heated and contracting when cooled ,and sealing surface wear.
6. The blow sweep port or automatic blow sweep device can be set on the valve body according to different operating conditions.
7.The rotating disc slides across the body of the valve during operation, clearing out process material and cleaning the precision-lapped surface
Technical Specification:
1) Size Range: NPS8
2) Pressure Range: Class 150
3) Applicable Temperature: 0~200℃
4) Connection Type: Flange or threaded hole
5) Sealing material: engineering ceramics
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, ASME B16.10
8) Valve body : GB/T12224,ASME B16.34
9)Operating Mode: Pneumatic
Application:
FREE-VALVE’s Pneumatic Rotating Disc Valves are suitable for coal fired power plant, steel plant, cereals transport system, cement transport systems. In these applications, pneumatic conveying method is used to reduce manpower demand, and improve system efficiency and reliability, and is easy to realize automation.
Model:FRZ643TC
Price:1000-5000USD/set
Origin:China
Payment terms:TT,LC
Price terms:FOB,CIF.FCA,CFR
Delivery time:30 days
Brand:FREE-VALVE
Wechat ID:Free_Valve
Email&Skype :marketing@free-valve.com
Mobile:+86 19937155563 +8613460250295
What’sApp:+8613460250295
