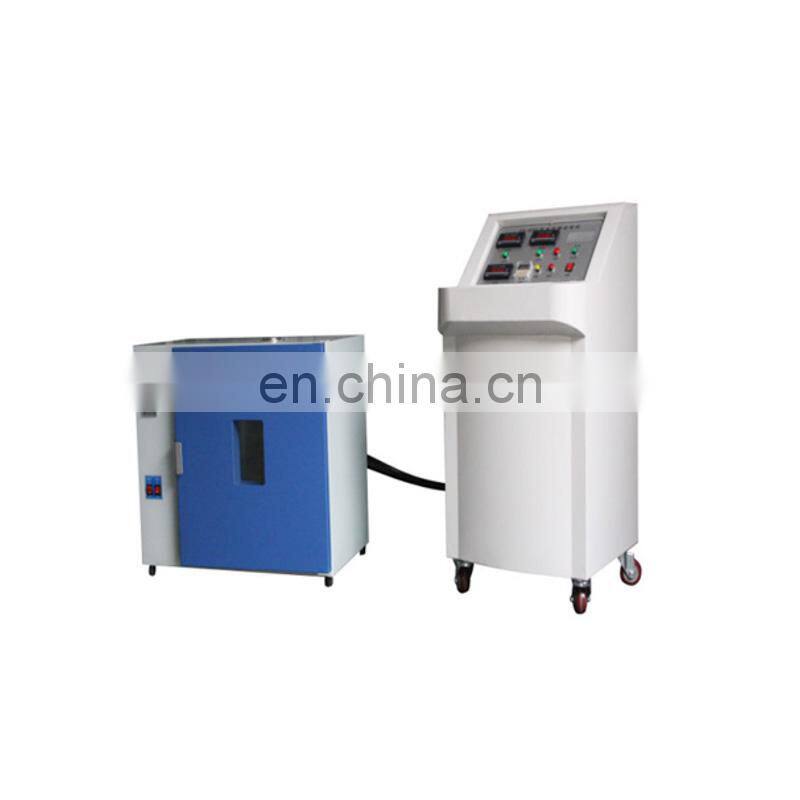

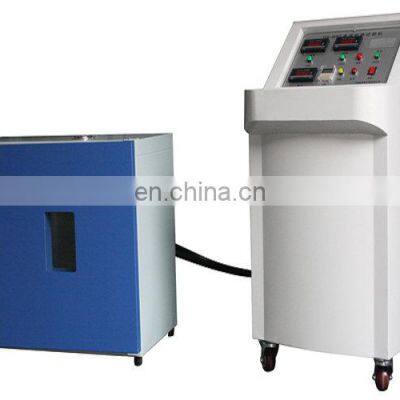

Lithium Ion Battery cells Short-circuit testing machine use industrial-grade DC electromagnetic contactors, all copper terminal posts and internal copper plates to conduct current. Wide copper plates improve heat dissipation, make high-current short-circuit devices safe, reduce test equipment losses, and ensure the accuracy of test data.
Meet the standards
UN38.3 UL 2054,QC/T 744-2006,QC/T 743-2006 GB/T31485
1. Test space: 400x400x400mm (can be customized)
2. Test temperature range:RT~200℃
3. Impulse voltage: AC 1kv / 1.2-50μs (peak) 1min
4. DC response time: ≤5μs
5. Internal resistance of the device: ≤5mΩ
6. Action time: suction time / release time : 30ms
7, operating characteristics: cold-state pull-in voltage,not more than 66% Us
8. Cold state release voltage:not more than 30% Us, not more than 5% Us
9. Weight: about 100Kg
10. Power supply: AC220V, 50 / 60Hz

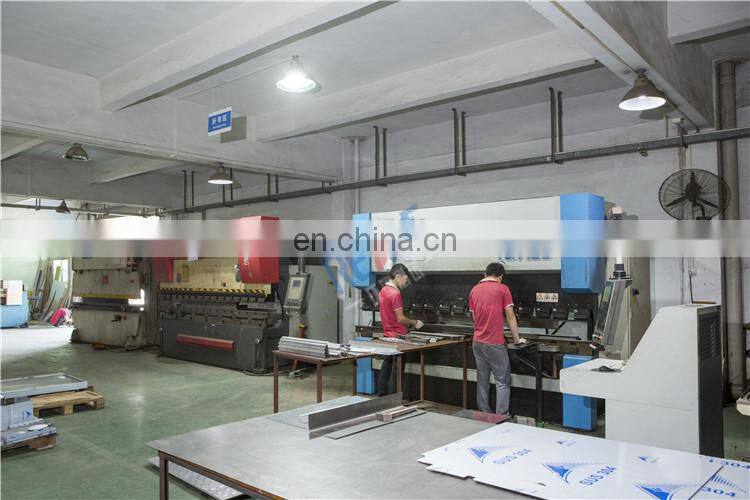

Dongguan Huanrui Environmental Test Equipment Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing,marketing all kinds of environmental equipment.Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
The factory mainly develops and produces environmental reliability test equipment, new energy battery safety testing equipment, automotive parts testing equipment, etc.
Office
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
