HDMI Over IP Extender With Loop Out (150m)
CNY 1333 - 2000
MOQ: 1 Pair
Key Specifications
Get Latest Price
Brand Name:
yueeryuan
Place of Origin:
China
Model Number:
HDMI over IP Extender with Loop Out (150m)
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
7 days
Related Products
-
HDMI USB KVM Extender Over Cat5e/Cat6 (HDBaseT)CNY 3500 - 5500MOQ: 1 Pair -
Extender Can Extend High Definition Video / Audio Signal and One-wayCNY 450 - 550MOQ: 1 Pair
-
HDMI 70M HDBaseT ExtenderCNY 1200 - 1800MOQ: 1 Pair
-
HDMI 1x4 SplitterCNY 1500 - 2200MOQ: 1 Pair
-
HDMI Over IP Extender With Loop Out (150m)CNY 1333 - 2000MOQ: 1 Pair
Brand Name
yueeryuan
Place of Origin
China
Model Number
HDMI over IP Extender with Loop Out (150m)
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
1. Introduction
HDMI over IP Extender is based on AV over IP solution for distribution of
one HD content to one HD display device or to multiple HD display devices
over a standard network switcher, and extends distance up to 492ft / 150m
between encoder and decoder via a CAT5e/6 cable. It offers configurable
high quality, low-bandwidth H.265 compression video. The resolution is up
to 1920x1200@60Hz. It also supports HDMI loop output on transmitter.

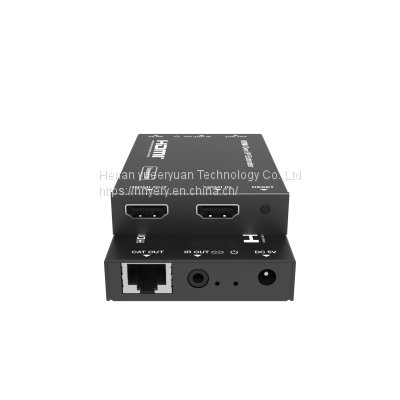

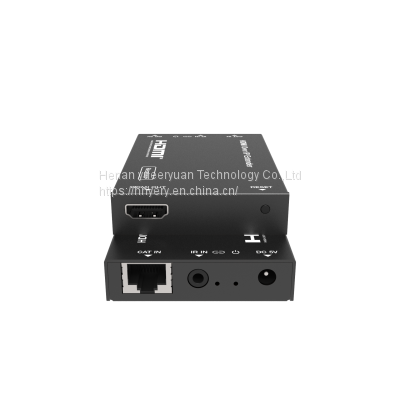

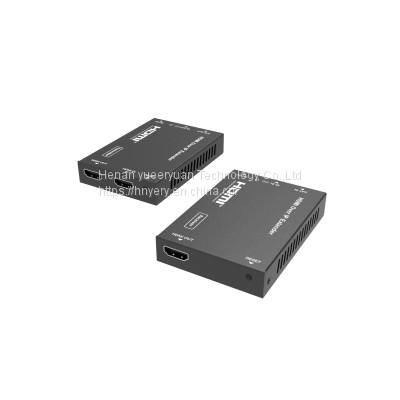

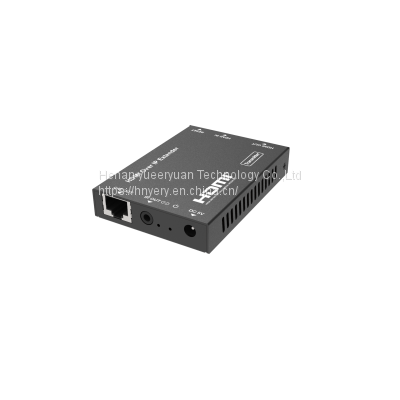

HDMI over IP Extender includes two units: Encoder and Decoder.
Encoder is responsible for obtaining HDMI signals for encoding,
transmitting via CAT5e/6 cables. It supports HDMI loop output; Decoder
is responsible for signal decoding and outputting HDMI signals to HD displays.
The product supports one-way IR control signal transmission. It offers the
most convenient solution for HDMI extension over a single CAT5e/6 cable
and is the perfect solution for any application.
2. Features
☆ HDMI 1.3 and HDCP 1.4 compliant
☆ Support 6.75Gbps video bandwidth
☆ Video resolution is up to 1920×1200@60Hz
☆ Extend distance up to 492ft / 150m between encoder and decoder via a
single CAT5e/6 cable
☆ Adopt standard H.265 encoding / decoding
☆ Support standard IP swticher / router / hub
☆ Support one-way IR control signal transmission
☆ Compact design for easy and flexible installation
3. Package Contents
① 1× HDMI over IP Extender (Encoder)
② 1× HDMI over IP Extender (Decoder)
③ 1× IR Blaster cable (1.5 meters)
④ 1× 20~60KHz IR Receiver cable (1.5 meters)
⑤ 2× 5V/1A Power Adapters
⑥ 1× User Manual
