HDMI 70M HDBaseT Extender
CNY 1200 - 1800
MOQ: 1 Pair
Key Specifications
Get Latest Price
Brand Name:
yueeryuan
Place of Origin:
China
Model Number:
HDMI 70M HDBaseT Extender
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
7 days
Related Products
-
HDMI USB KVM Extender Over Cat5e/Cat6 (HDBaseT)CNY 3500 - 5500MOQ: 1 Pair -
Extender Can Extend High Definition Video / Audio Signal and One-wayCNY 450 - 550MOQ: 1 Pair
-
HDMI 1x4 SplitterCNY 1500 - 2200MOQ: 1 Pair
-
HDMI Over IP Extender With Loop Out (150m)CNY 1333 - 2000MOQ: 1 Pair
-
HDMI 70M HDBaseT ExtenderCNY 1200 - 1800MOQ: 1 Pair
Brand Name
yueeryuan
Place of Origin
China
Model Number
HDMI 70M HDBaseT Extender
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefu
lly before connecting, operating or adjusting this product. Please keep this
manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shook, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
1. Introduction

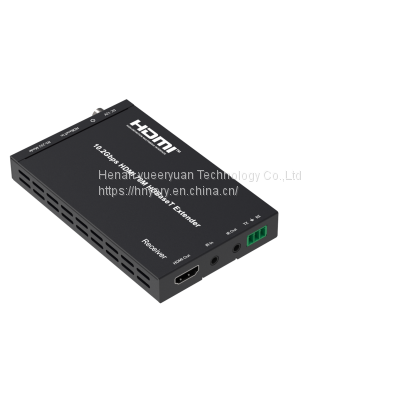

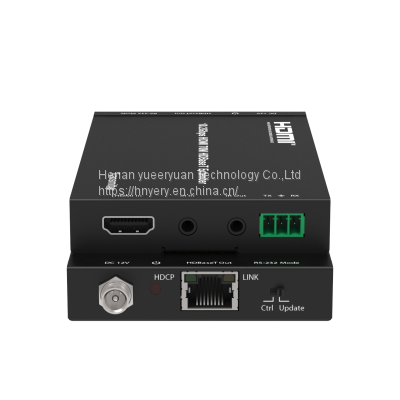

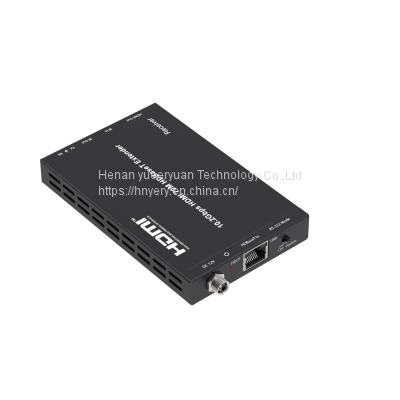

This HDMI 70M HDBaseT Extender uses HDBaseT technology to extend the
HDMI signal and bi-directional IR control signal to 70 meters via a single Cat
5e/6 cable. This product converts the HDMI signal into a standard HDBaseT
signal and then transmits it through the LAN cable. It can easily control the
signal source device or display device from the remote end via bi-directional
IR signal pass-through. It supports RS-232 signal pass-through, and the
resolution is up to 4K×2K@30Hz. This product can be widely used in video
conference system, multimedia broadcasting, HDMI signal extension and
other fields.
2. Features
☆ HDMI 1.4 and HDCP 2.2 compliant
☆ Support video resolution up to 4k2k@30Hz
☆ Support 10.2Gbps video bandwidth
☆ The maximum transmission distance via a single CAT5e/6 cable is:
70 meters: 1080P@60Hz/36bit; 3D 1080P@30Hz/36bit;
40 meters: 1080P@60Hz/48bit; 1080P@120Hz/24bit;
3D 1080P@60Hz/36bit; 4K x 2K@30Hz/24bit.
☆ Support POC (Power Over Cable) function, it means that either the
transmitter or receiver is connected to 12V/1A power supply, the other
doesn’t need power supply.
☆ With bi-directional IR and RS-232 control signal pass-through
☆ Compact design for easy and flexible installation
3. Package Contents
① 1 × HDMI 70M HDBaseT Extender (Transmitter)
② 1 × HDMI 70M HDBaseT Extender (Receiver)
③ 1 × Power adaptor (12V DC,1A)
④ 1 × IR Receiver cable (1.5 meters)
⑤ 1 × IR Blaster cable (1.5 meters)
⑥ 4 × Mounting ears
⑦ 2 × 3-pin Phoenix connectors
⑧ 1× User Manual
