For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of
surge
protection systems is highly recommended in order to protect and extend the life of your equipment.
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

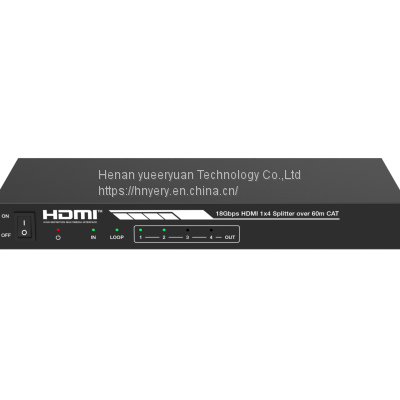

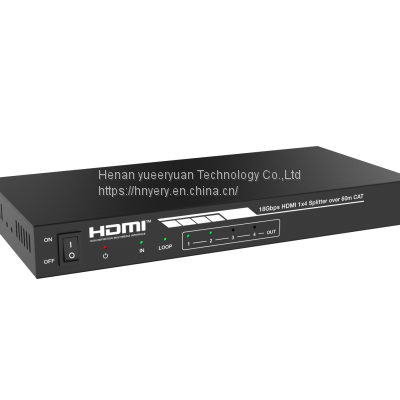

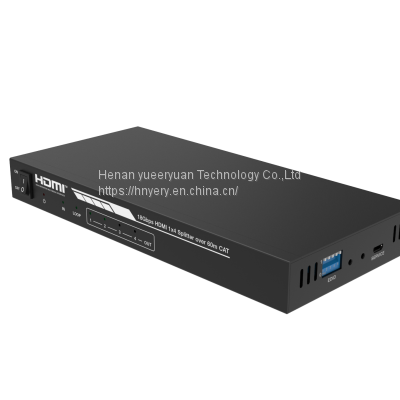

The 18Gbps HDMI 1x4 Splitter can distribute 1 HDMI source signal to any 4 display devices. Support video resolution up to 4K2K@50/60Hz 4:4:4. It is designed wiHDMI 1x4 Splitterth 1 HDMI loop output and 4 CAT outputs. The HDMI signal transmission distance can be extended up to 35 meters at the resolution of 4K2K@60Hz, or 50 meters at 4K2K@30Hz, or 60 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports one-way IR control
signal pass-through, audio extract function and advanced EDID management.
☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
☆ Support 18Gbps video bandwidth
☆ Support video resolution up to 4K2K@50/60Hz 4:4:4
☆ Support HDR, HDR10+, HLG and Dolby vision
☆ Support up to 7.1CH HD audio pass-through
☆ Support digital and analog audio de-embedded output
☆ Extend the signal transmission distance up to 35 meters at the resolution of
4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@60Hz via a
single CAT6/6a/7 cable
☆ Support 1 HDMI input, 1 HDMI loop output and 4 CAT outputs.
☆ Support one-way IR control signal pass-through
☆ Advanced EDID management
☆ Support one-way POC function (only from transmitter to receiver)
☆ Compact design for easy and flexible installation
① 1× 18Gbps 1×4 HDMI Splitter over 60m CAT

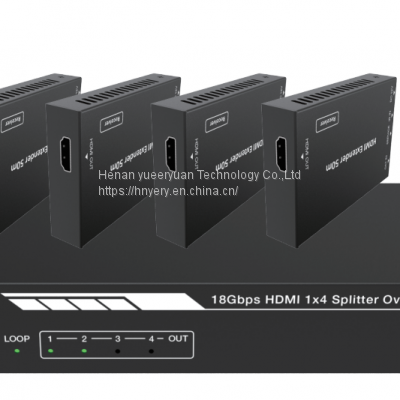

② 4× CAT Receiver
③ 1× IR Blaster Cable (1.5 meters)
④ 4× 20K~60KHz IR Receiver Cable (1.5 meters)
⑤ 1× 12V/2.5A DC Locking Power Adapter
⑥ 1× User Manual
