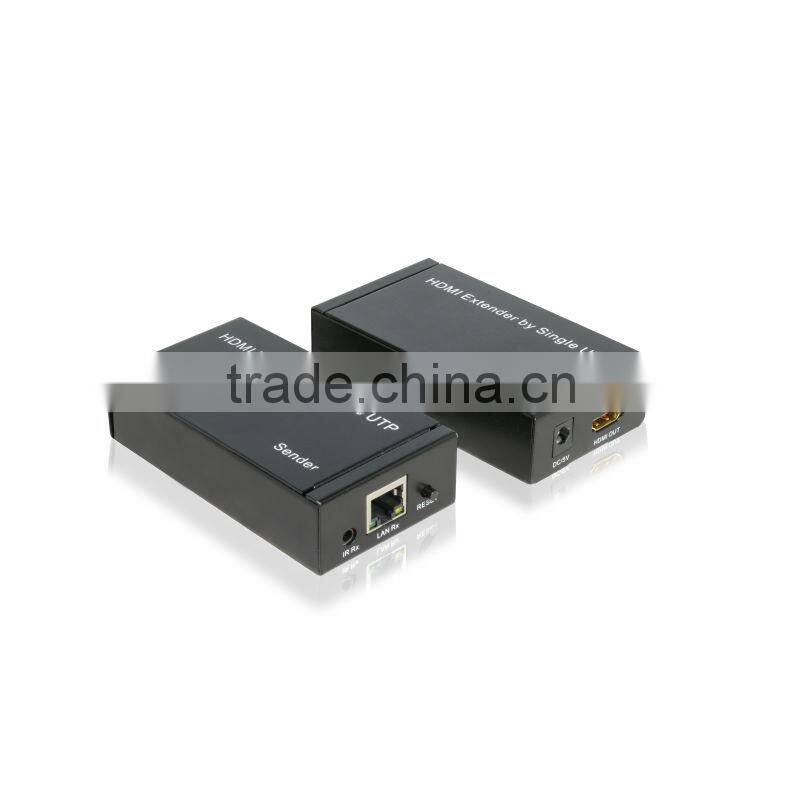

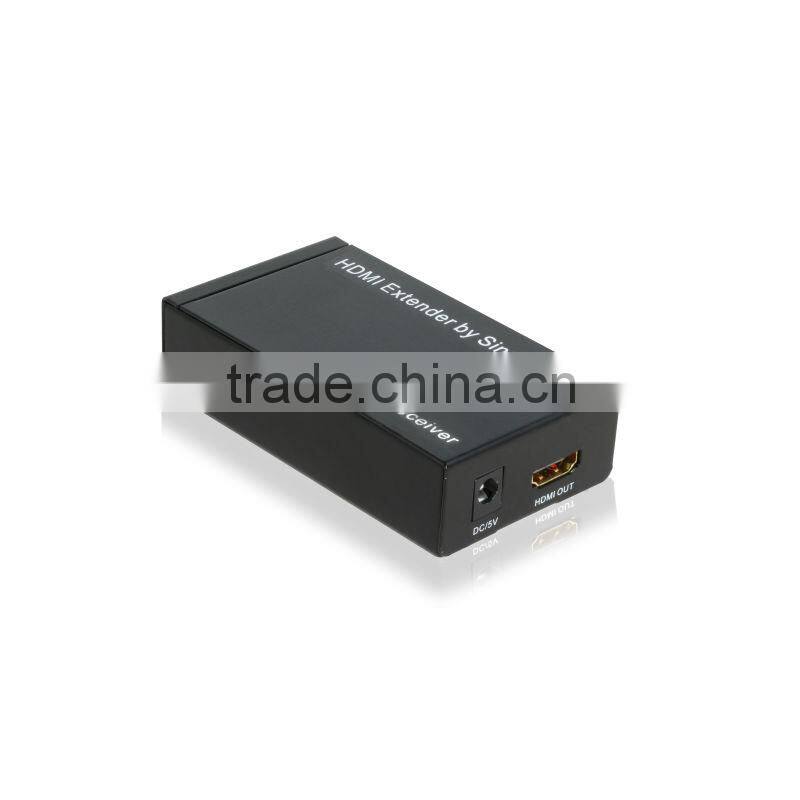

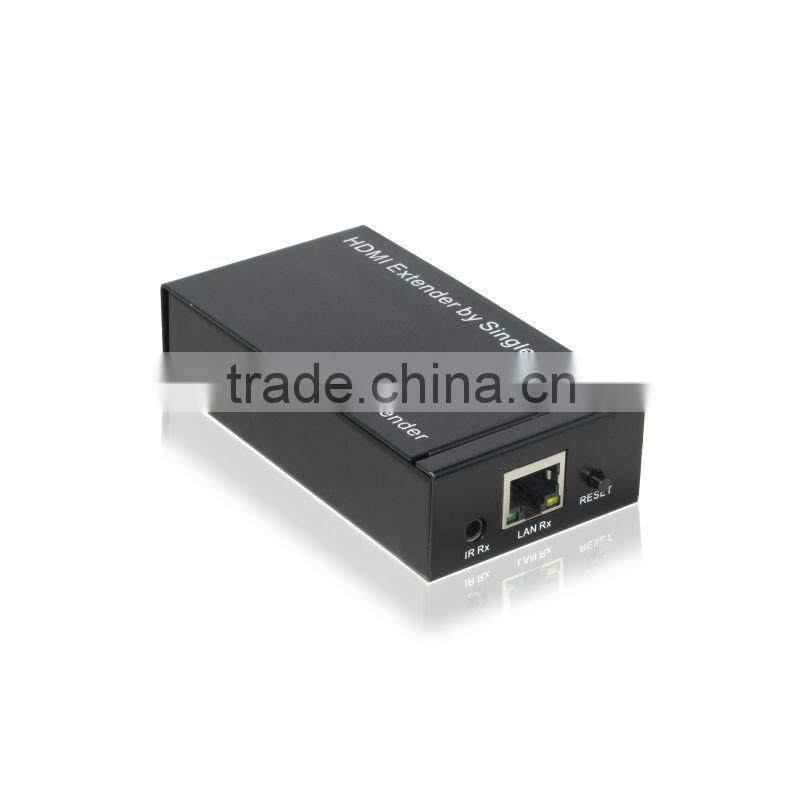

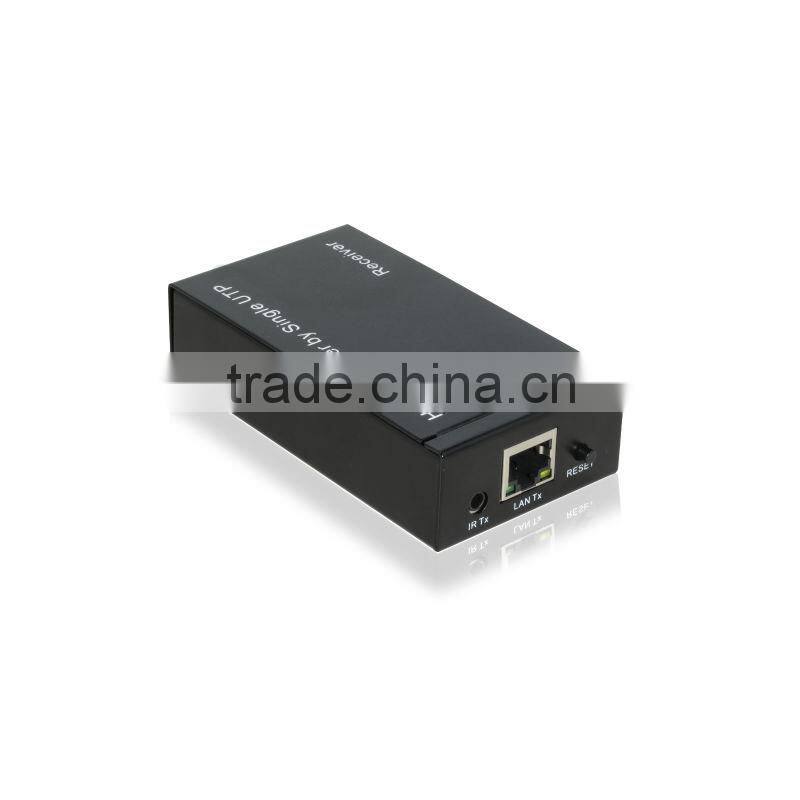

HDMI EXTENDER 120M OVER TCP/IP
Introduction :
HDMI EXTENDER 120M OVER TCP/IP
is based on TCP/IP standard. It extends your display with the resolutions of
1080P/60Hz up to 395feets (120 meters) away from your HDMI source by using one CAT5e/6 cable.
With the advantage of TCP/IP standard, you can extend you HD video to multiple displays by using an
Ethernet router or hub and the total distance can be up to max 660 feets.
Features:
*Following TCP/IP standard
*Supports resolution up to 480P/720P/1080I/1080P
*Supports max video bandwidth to 1.65Gbps/165MHz.
*CAT5e/6 cable follows the standard of IEEE-568B
*Supports 3D
Specification:
| Product Name | HDMI EXTENDER 120M OVER TCP/IP |
Model NO. |
PET120R |
Signal Input |
HDMI signal |
Input Video Signal |
0.5-1.0volts/p-p |
Output video |
HDMI Signal |
CAT-6 cable |
120m for 1080p |
Vertical Frequency Range |
50/60Hz |
Video Amplifier bandwidth |
Max up to 1.65Gbps/165MHz |
Interlaced (50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0°C to +50°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Supply |
5V DC @2A |
Power consumption (Max) |
8W |
Power Supply Cert |
CE,FCC |
AC Power Adapter |
US standard,UK standard and so on |
Converter Unit Cert. |
FCC,CE, |
User Manual |
English Version |

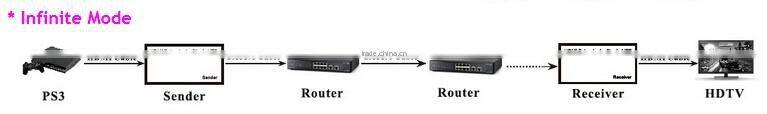

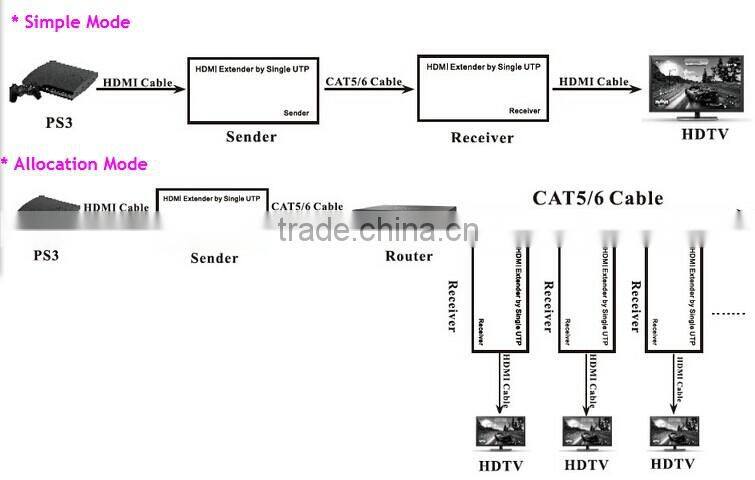

Diagram:
Advantages:
1) We are one member of HDMI Association, export to any country is legal .
2)Specialized in HDMI products manufacture more than 6 years, stronger research and development team
3) 0% Risk for clients.More overseas exhibitions (Hongkong,Americal,Brazil,Germany etc.) are convenient for testing our products
4) Most regular customers from U.S.A , Brazil, Europe countries, Russia, Australia
5) OEM, ODM service avaliable
6) Stronger aftersales (RMA) service as manufacture.
7) Certs : CE, FCC, RoHS, HDMI Power Adaptor
Package Content:
1) Main unit NO.1Sender X1
2) Main unit NO.2Receiver X1
3) User Manual
4)5V DC Power Adapter X2
Packing:
1. Bubble package, save shipping cost
2) Neutral gift box, beautiful in appearance.
