Help CenterHDMI USB KVM Extender Over Cat5e/Cat6 (HDBaseT)
Related Products
-
Extender Can Extend High Definition Video / Audio Signal and One-wayCNY 450 - 550MOQ: 1 Pair -
HDMI 70M HDBaseT ExtenderCNY 1200 - 1800MOQ: 1 Pair
-
HDMI 1x4 SplitterCNY 1500 - 2200MOQ: 1 Pair
-
HDMI Over IP Extender With Loop Out (150m)CNY 1333 - 2000MOQ: 1 Pair
-
KVM Extender/ HDMI USB KVM Extender Over Cat5e/Cat6 (HDBaseT)NegotiableMOQ: 1 Set
1. Introduction
The HDMI USB KVM (Keyboard, Video, Mouse) Extender is a tool which can extend your HDMI signal over 328fts/100meters to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by CAT5e/CAT6/CAT7 cable. It also supports Transfer Bidirectional Infrared control signal and RS232 control signal. With LAN serving connection and external digital and analog audio capability that gives users the convenience of additional audio connection. It also supports the connection of USB host and 2 USB device ports. So you can control the Source in the Sink side which is 328fts outside, also you can control the Sink in the Source side which is 328fts outside using the HDMI Extender.
2. Features
1. Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K@60Hz with YCbCr 4:2:0 ).
2. HDCP2.2 and DVI compatible.
3. Supports HDBaseT 2.0 specification over a single CAT5e/6/7 cable up to 100m/328ft.
4. Supports pass-through of HD audio formats: LPCM2/5.1/7.1 CH, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio and more.
5. POE(Power Over Ethernet)function support, either TX or RX powered 24V@1A,another don’t need power form the DC jack.
6. Full HD support: 1080p@60Hz@24/36/48bit/pixels.
7. Supports USB 2.0 control.
8. Supports external Bi-Directional SPDIF IN/OUT and available for multichannel audio.
9. Supports stereo audio with PCM 2CH.
10. Transfer Bidirectional Infrared control signal together with the HDMI signal.

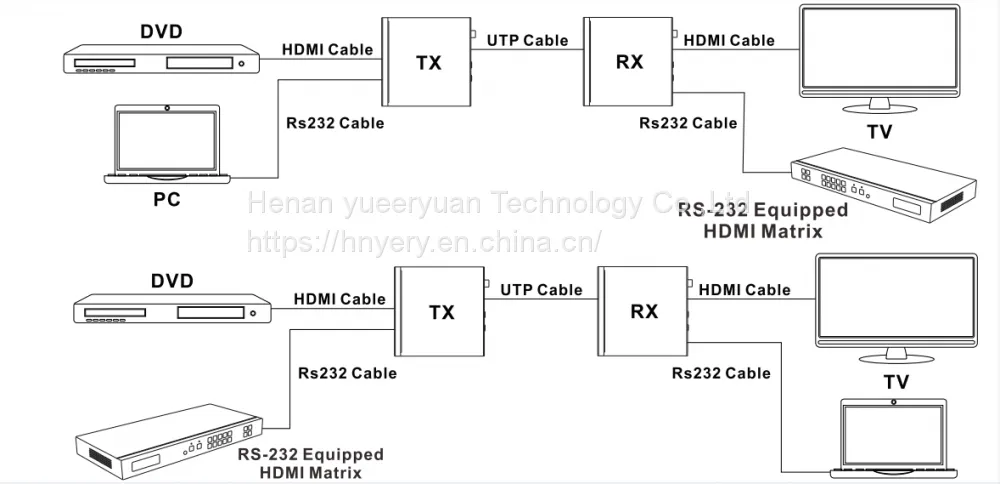

11. Transfer Bidirectional RS232 control signal together with the HDMI signal.
12. Transfer Bidirectional Ethernet signal together with the HDMI signal.
4. Specifications
1. Video Bandwidth 340MHz/10.2Gbps
2. Transmitter
Input Ports 1x HDMI, 1xLAN, 1xUSB-H,
1xIR in, 1x Audio in, 1xRS232,
1xOptical (Spdif in),
Output Ports 1xIR out, 1xOptical (Spdif out),
1xHDBaseT OUT, 2xUSB-D
3. Receiver
Input Ports 1xIR in, 1xOptical (Spdif in),
1xHDBaseT IN, 1xUSB-H
Output Ports 1x HDMI, 1xLAN, 2xUSB,
1xIR out, 1x Audio out, 1xRS232,1xOptical (Spdif out),
4. Power Supply DC 24V 1A
5. ESD Protection ± 8kV (air-gap discharge)
Human Body Model: ± 4kV (contact discharge)
6. Dimensions (mm) 160(W) X 97 (D) X 28 (H)
7. Weight 450g/TX, 450g/RX
8. Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
9. Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
10. Relative Humidity 20~90% RH (Non-condensing)
11. Power Consumption (Max) 12W
