Specifications
4 way HDMI video splitter1 Made by METAL
2 OEM Packaging
3 Suitable for TV HDDplayer
4 CE FCC ROHS HDMI Splitter

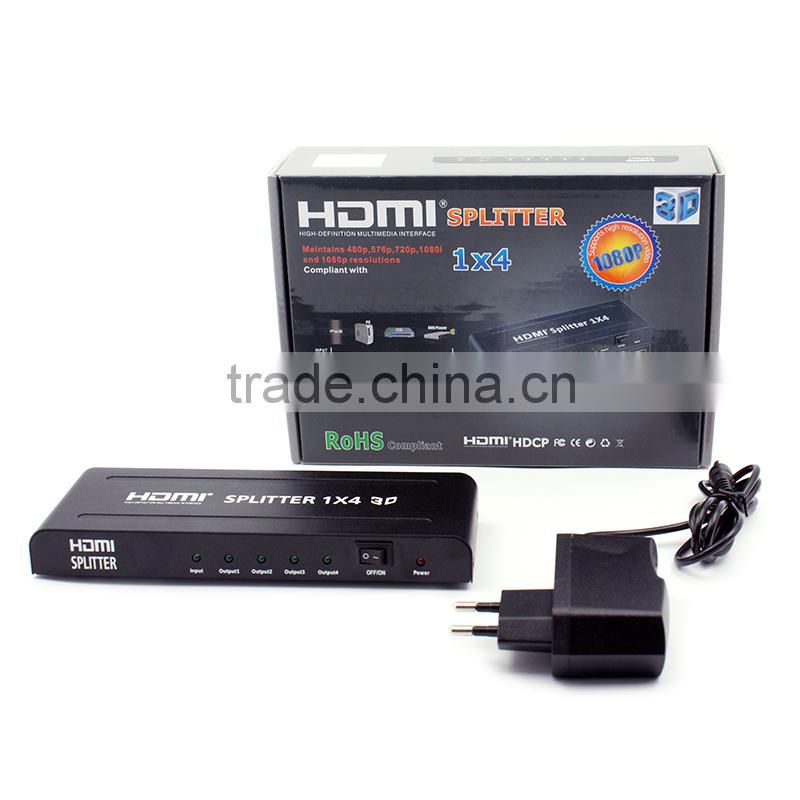

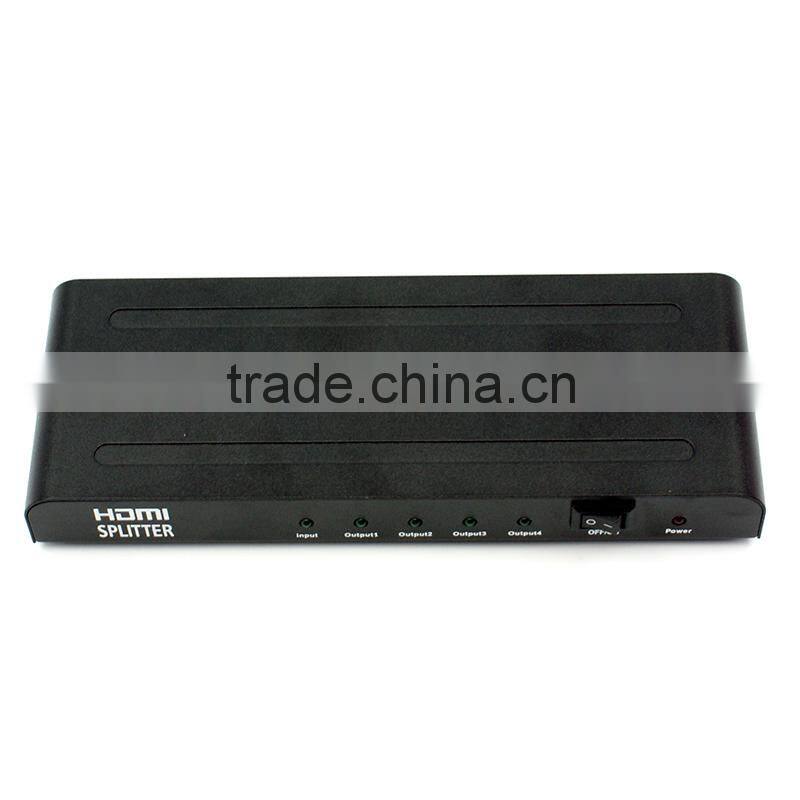

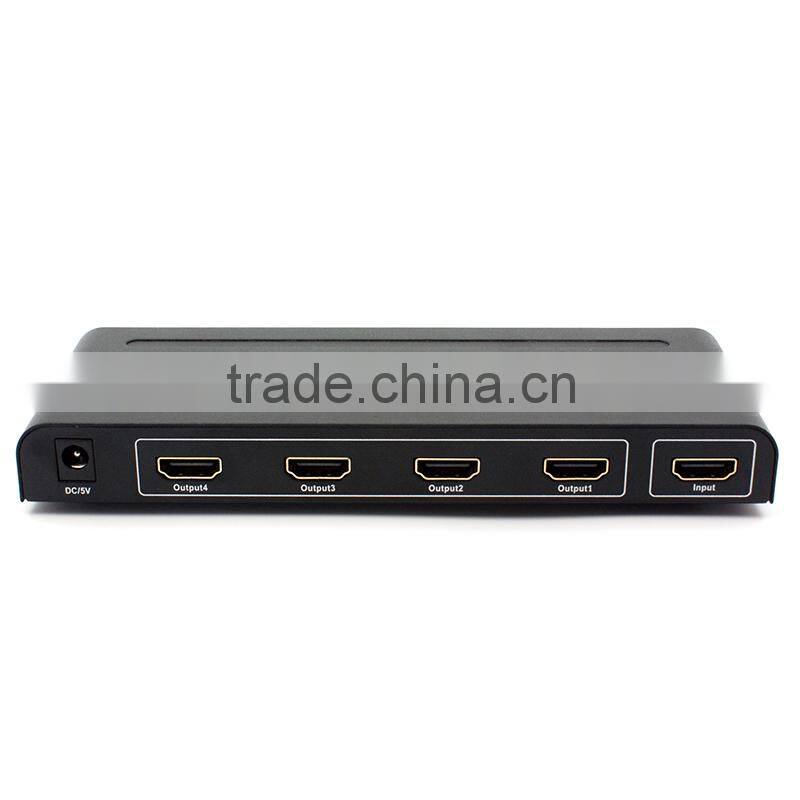

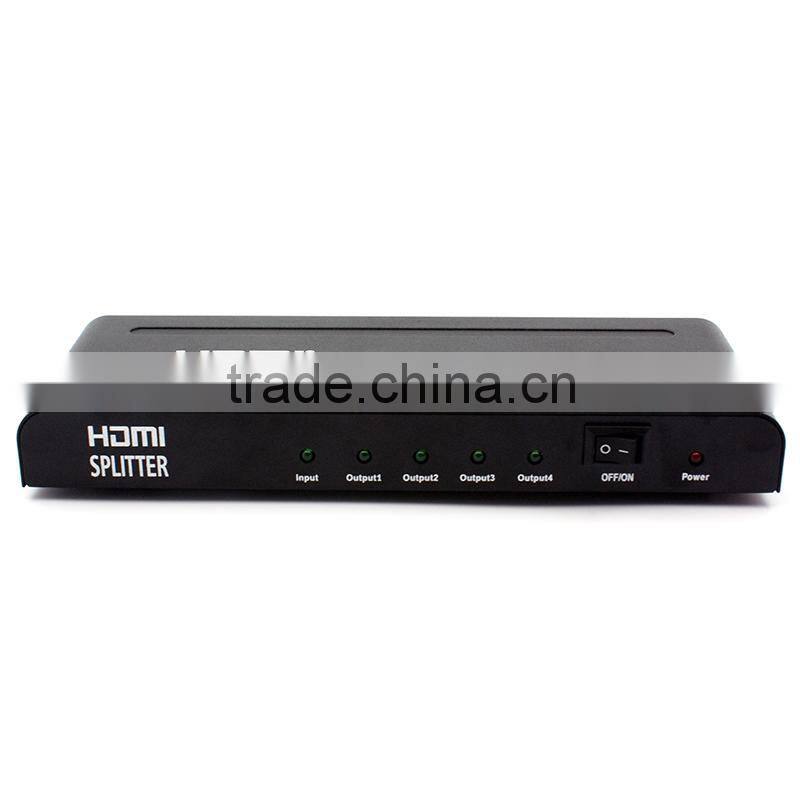

1x4 hdmi splitter with 4 way hdmi splitter
Features:
Support 340MHz video bandwidth, enhance video signals for 80m distance. Allow you to deliver high resolution HDMI video from a single video source to eight monitors simultaneously. The 4 port HDMI splitter is provided in some situations such as broadcasting video imformation to the public(news headlines, stock prices, airlines and train schedules), classroom or company training facilities.
Specifications:
|
HDMI resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support video color format |
24bit/deep color 30bit,36bit, 48bit |
|
Support audio format |
.DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR) Max |
|
bandwidth |
340MHz |
|
Max baud rate |
10.2Gbps |
|
Input/Output TMDS signal |
0.5~1.5Volts p-p(TTL) |
|
Input/Output DDC signal |
5Volts p-p (TTL) |
|
Input cable distance |
.≤15m HDMI AWG26 |
|
Output cable distance |
≤25m AWG26 HDMI standard cable |
|
Max working current |
1200mA |
|
Power adapter format..Inpu |
AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A |
|
Operating Temperature range |
(-15 to +55℃) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
Certificates:
Guarantee:
Warranty period is 12 months from the date of original purchase. If you have any problems with the item received , please let us know within 7 days after receive the items. If problem really exists, an exchange or a refund is available after we receive the items in good condition ; Refund will be made upon receipt of the returned item.
Feedback:
If you are satisfied with our products, please give us a positive feedback. If a problem is with the item, just contact us before you leave any negative feedback here, as we think any problems will be solved after active cooperation and good communication.
