FTTH 1x8 LGX Box Type Splitter SC APC UPC Fiber Optic PLC Splitter ABS Cassette Plug in Type Splitter Single Mode
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1*4 LGX Optic Splitter Box Plc Splitter ModuleNegotiableMOQ: 1 -
Cassette Type FTTH Fiber Optic 1x8 PLC Splitter LGX Box With SC APC ConnectorNegotiableMOQ: 1
-
Good Quality Factory Supply 1*8 Fiber Optical Terminal Box/Splitter Box/Distribution BoxNegotiableMOQ: 1
-
LGX Splitter Box/ PLC Splitter Cassette, 1*8 Fiber Optical PLC SplitterNegotiableMOQ: 1
-
With SC/APC Connectors Cassette Type 1*8 Fiber Optical PLC SplitterNegotiableMOQ: 1
Product Description
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
FTTH 1x8 LGX Box Type Splitter SC APC UPC Fiber Optic PLC Splitter ABS Cassette Plug in Type Splitter Single Mode
APPLICATION
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
FEATURES
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

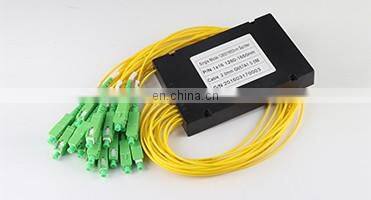

ABS PLC splitter with SC APC connector

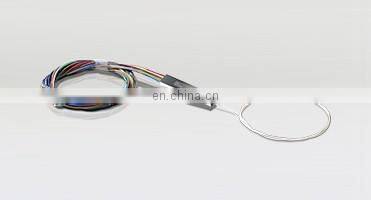

type PLC splitter without connector

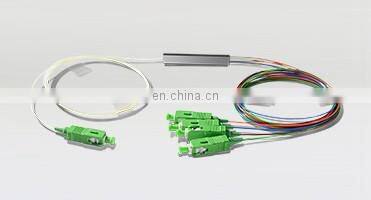

PLC splitter with SC APC connector

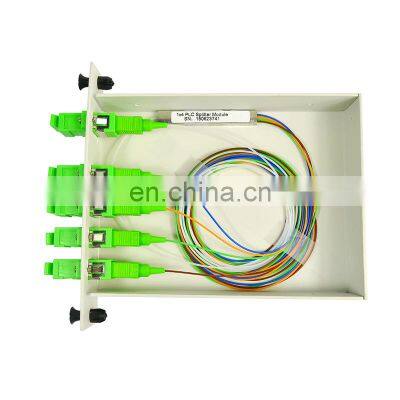

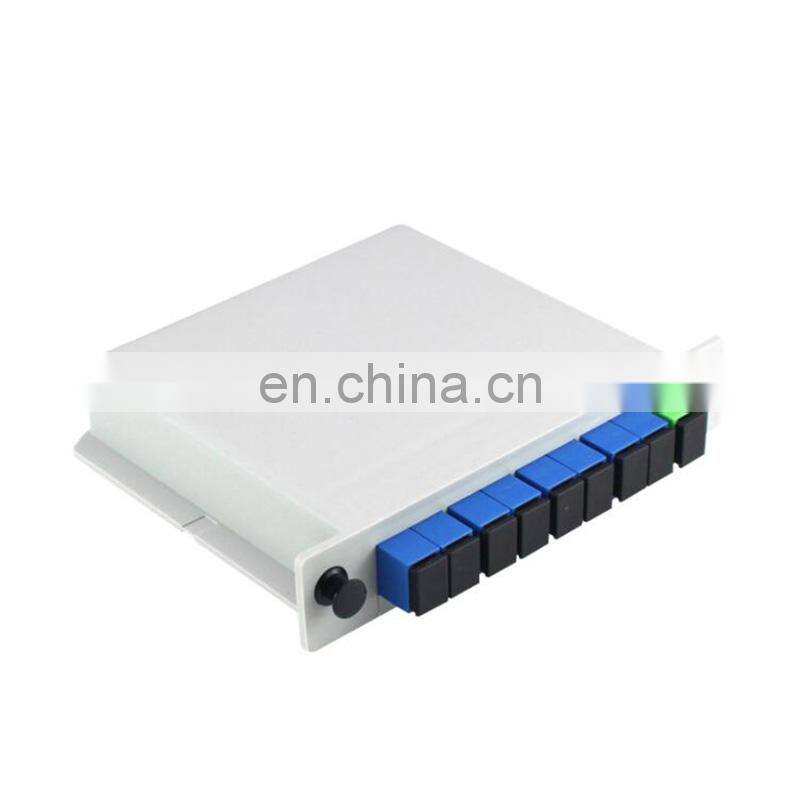

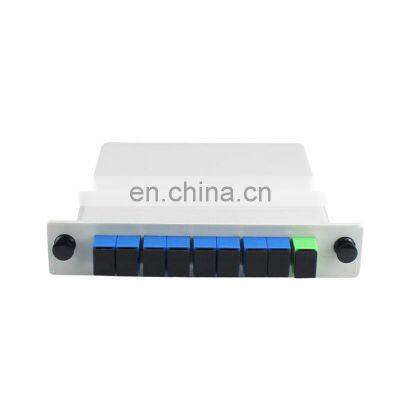

LGX PLC splitter with SC APC connector
Parameter/Type | Nx2(N=1or2) | Nx4(N=1or2) | Nx8(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) | |||||
Fiber | 9/125 um SMF-28e or customer appoint | ||||||||||
Operating Wavelength(nm) | 1260~1650(nm) | ||||||||||
Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB | |||||
Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB | |||||
Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | |||||
Return Loss | UPC≥50dB APC≥60dB | ||||||||||
Directivity | ≥55dB | ||||||||||
Working Temperature(℃) | -40°C to +85°C | ||||||||||
