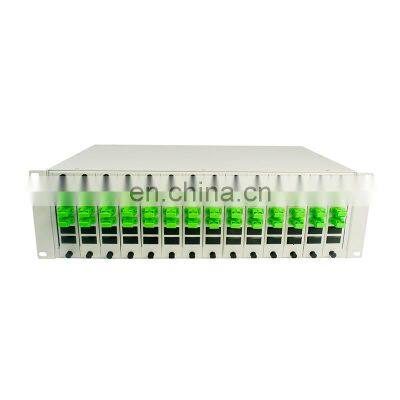

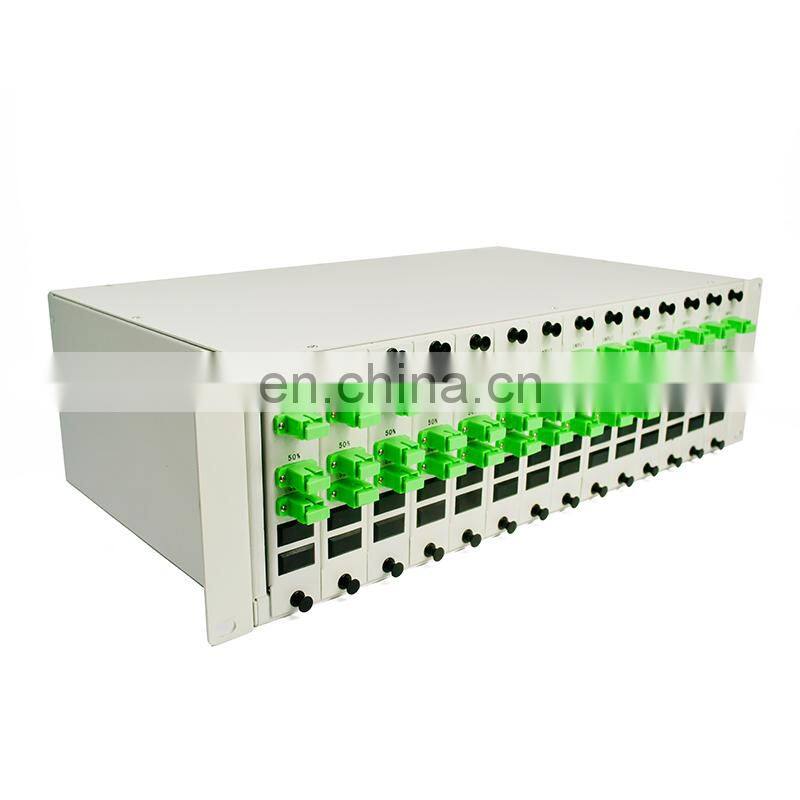

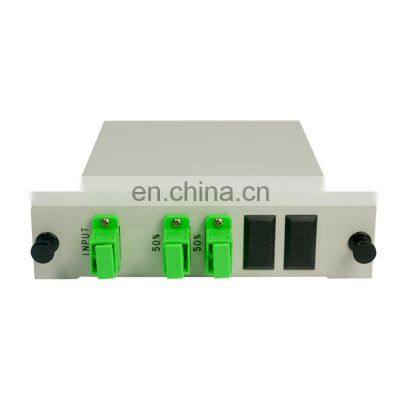

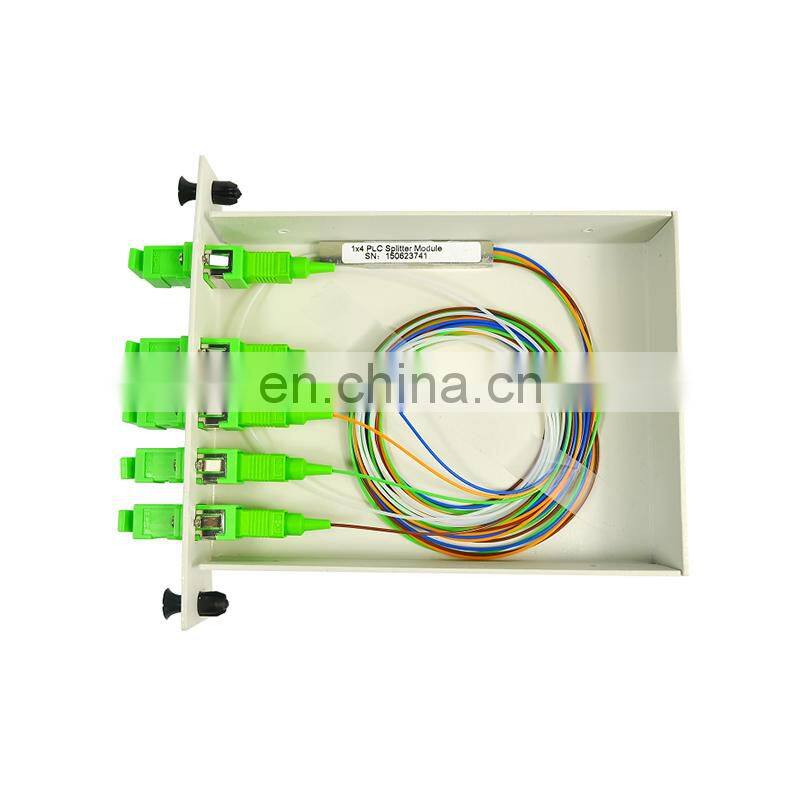

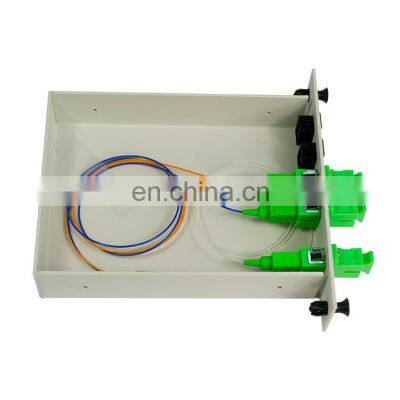

1*4 LGX Optic Splitter Box Plc Splitter Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cassette Type FTTH Fiber Optic 1x8 PLC Splitter LGX Box With SC APC ConnectorNegotiableMOQ: 1 -
Good Quality Factory Supply 1*8 Fiber Optical Terminal Box/Splitter Box/Distribution BoxNegotiableMOQ: 1
-
LGX Splitter Box/ PLC Splitter Cassette, 1*8 Fiber Optical PLC SplitterNegotiableMOQ: 1
-
With SC/APC Connectors Cassette Type 1*8 Fiber Optical PLC SplitterNegotiableMOQ: 1
-
Factory Price 1x2,1x4,1x8,1x16,1x32,SC/APC SC/UPC Fiber Optical LGX Splitter BoxNegotiableMOQ: 1
Product Description
1*4 LGX optic splitter box plc splitter module
APPLICATION
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
FEATURES
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
ABS PLC splitter with SC APC connector
type PLC splitter without connector
PLC splitter with SC APC connector

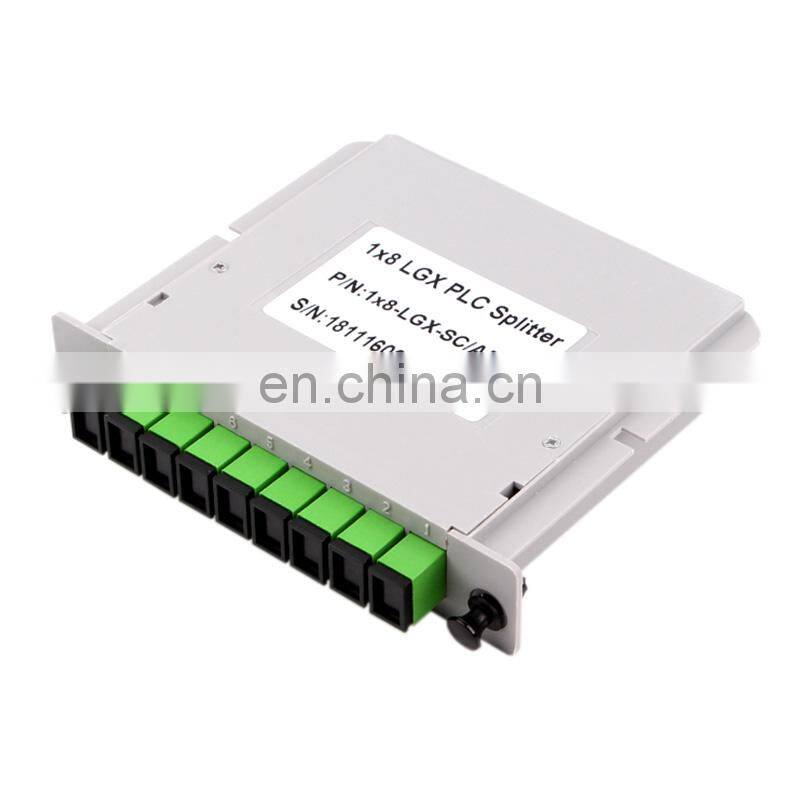

LGX PLC splitter with SC APC connector
Parameter/Type |
Nx2(N=1or2) |
Nx4(N=1or2) |
Nx8(N=1or2) |
Nx16(N=1or2) |
Nx32(N=1or2) |
Nx64(N=1or2) |
|||||
Fiber |
9/125 um SMF-28e or customer appoint |
||||||||||
Operating Wavelength(nm) |
1260~1650(nm) |
||||||||||
Insertion Loss |
≤3.9dB |
≤7.1dB |
≤10.3dB |
≤13.3dB |
≤16.3dB |
≤19.8dB |
|||||
Loss Uniformity(dB) |
≤0.6dB |
≤0.6dB |
≤0.8dB |
≤1.2dB |
≤1.5dB |
≤2.0dB |
|||||
Polariation Dependent Loss |
≤0.15dB |
≤0.15dB |
≤0.2dB |
≤0.2dB |
≤0.2dB |
≤0.3dB |
|||||
Return Loss |
UPC≥50dB APC≥60dB |
||||||||||
Directivity |
≥55dB |
||||||||||
Working Temperature(℃) |
-40°C to +85°C |
||||||||||
