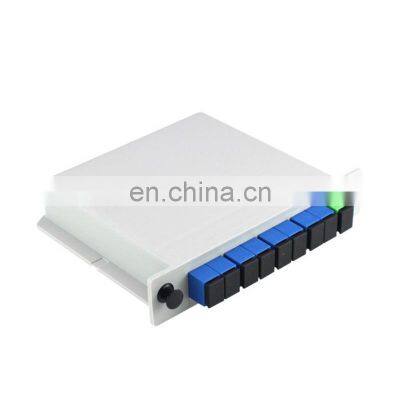

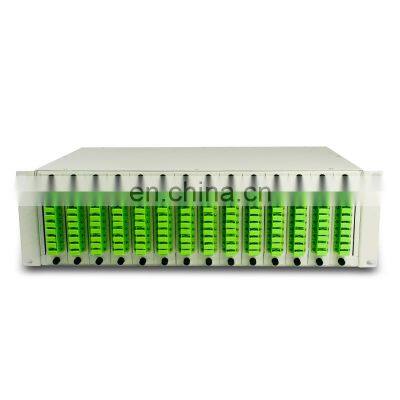

LGX Splitter Box/ PLC Splitter Cassette, 1*8 Fiber Optical PLC Splitter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
With SC/APC Connectors Cassette Type 1*8 Fiber Optical PLC SplitterNegotiableMOQ: 1 -
Factory Price 1x2,1x4,1x8,1x16,1x32,SC/APC SC/UPC Fiber Optical LGX Splitter BoxNegotiableMOQ: 1
-
1X16 Fiber PLC Splitter Fiber Optic Patch Panel SC/APC 1U 19 Rack MountNegotiableMOQ: 1
-
1U 19\" Fiber Optic PLC Splitter 1x16 Rack Mount Patch PanelNegotiableMOQ: 1
-
3U 19\" Fiber Optical 1x2 LGX PLC Splitter Patch Panel /Rack Mount ChassisNegotiableMOQ: 1
Product Description
FTTH 0.9mm Lgx Cassette Type 1x4 1x8 1x16 Sc Upc Fiber Optic Plc Lgx Splitter Box
DYS' PLC splitter quality control, minimizing products risk
1)100% raw material testing
2)Semi-finished products pass the High and low temperature cycle testing
3)Finished product pass the High and low temperature cycle testing again
4)100% performance testing before shipping
Application
FTTx Deployments(GPON/BPON/EPON)
Cable television (CATV)
Local area networks (LAN)
Test equipment
Passive optical networks(PON)
Cable television (CATV)
Local area networks (LAN)
Test equipment
Passive optical networks(PON)
Feature
Excellent Mechanical,Small Size
High Reliability
Low insertion Loss and low Polarization Dependent loss
High channel counts
Excellent Environmental Stability and Widely Used
High Reliability
Low insertion Loss and low Polarization Dependent loss
High channel counts
Excellent Environmental Stability and Widely Used
ABS PLC splitter with SC APC connector
type PLC splitter without connector
PLC splitter with SC APC connector

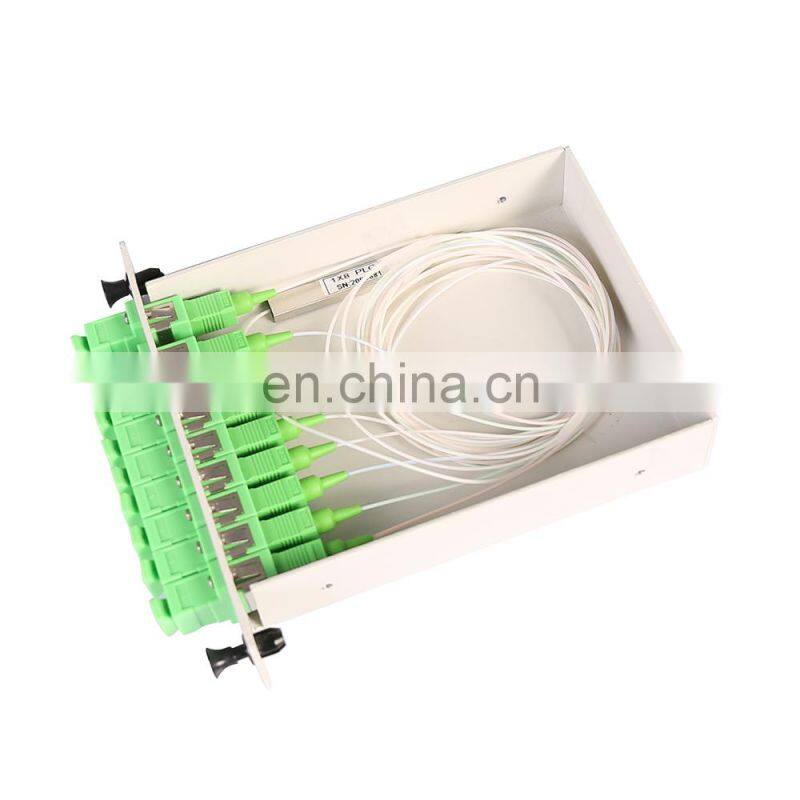

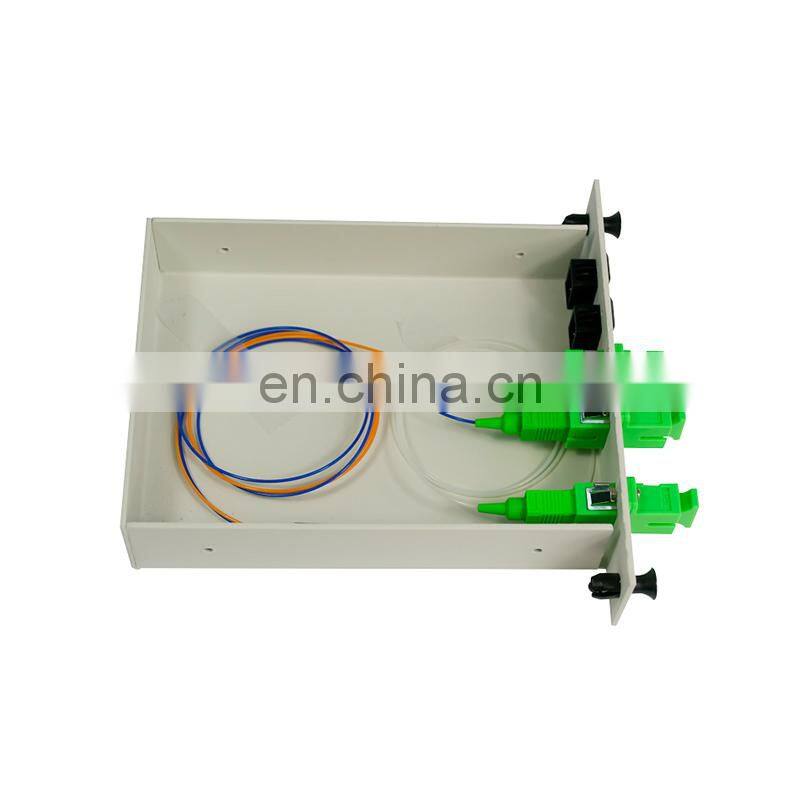

LGX PLC splitter with SC APC connector
Parameter/Type |
Nx2(N=1or2) |
Nx4(N=1or2) |
Nx8(N=1or2) |
Nx16(N=1or2) |
Nx32(N=1or2) |
Nx64(N=1or2) |
|||||
Fiber |
9/125 um SMF-28e or customer appoint |
||||||||||
Operating Wavelength(nm) |
1260~1650(nm) |
||||||||||
Insertion Loss |
≤3.9dB |
≤7.1dB |
≤10.3dB |
≤13.3dB |
≤16.3dB |
≤19.8dB |
|||||
Loss Uniformity(dB) |
≤0.6dB |
≤0.6dB |
≤0.8dB |
≤1.2dB |
≤1.5dB |
≤2.0dB |
|||||
Polariation Dependent Loss |
≤0.15dB |
≤0.15dB |
≤0.2dB |
≤0.2dB |
≤0.2dB |
≤0.3dB |
|||||
Return Loss |
UPC≥50dB APC≥60dB |
||||||||||
Directivity |
≥55dB |
||||||||||
Working Temperature(℃) |
-40°C to +85°C |
||||||||||
