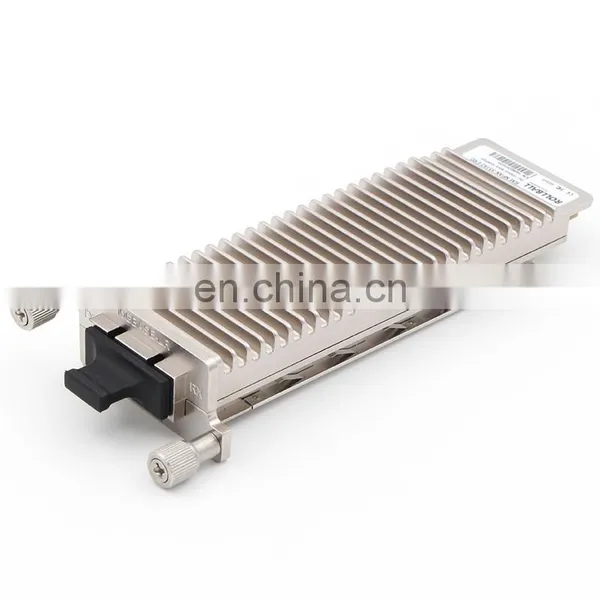

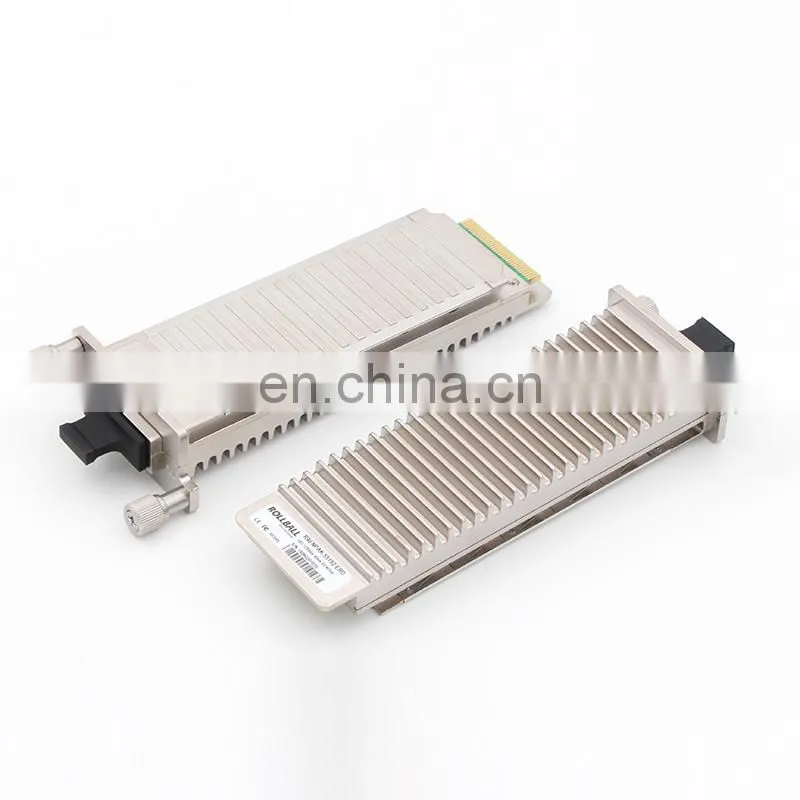

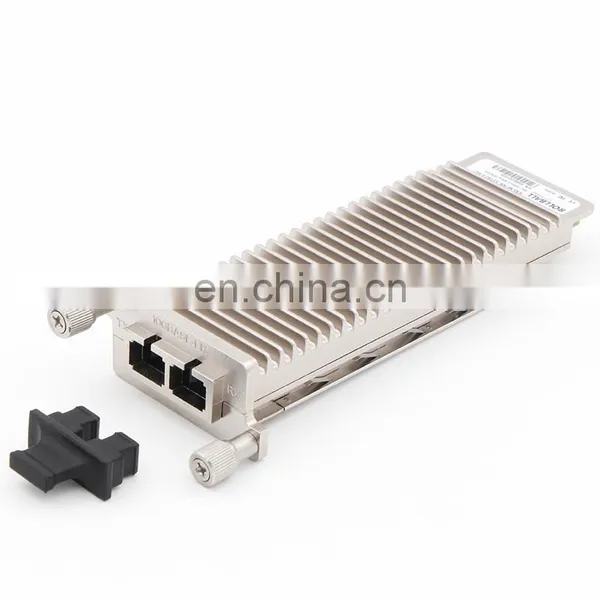

High Quality XENPAK-10G-ER 10G XENPAK Transceiver SM 1550nm 40km
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Compatible Sfp-10g-sr-sNegotiableMOQ: 1 -
High Quality DWDM SFP+ 10G 40KM DDM CH17-CH61 10gb Dwdm Sfp TransceiversNegotiableMOQ: 1
-
25Gb/s SFP28 LAN-WDM 40km Optical Transceiver Module 25G 40km Sfp28NegotiableMOQ: 1
-
1.25G/2.5G GPON/EPON SFP Optical Module Sticker 1310nm-Tx/1490nm-Rx 20km, WDM SC Port, Class B+, With MAC InsideNegotiableMOQ: 1
-
Best Seller 25Gb/s SFP28 DWDM 20km Optical Transceiver Module Wholesales PriceNegotiableMOQ: 1
Product Description
XENPAK-10G-ER 10G XENPAK transceiver SM 1550nm 40km
Description
1). Rollball’s xenpak transceiver module is a highly integrated, Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer/ demultiplexer (SERDES: Serializer / Deserializer).
2). Designing for 10GBASE-SR/LR/ER/ZR Transmission with an uncooled directly modulated 850nm VCESE/1310nm DFB/1550nm DFP Laser. The transponder operates within a wide case temperature range of 0°C to +70 °C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems.
3). A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
Main Feature
1).SC duplex Optical connector
2).Compatible with XENPAK MSA Rev.3.0
3).Support of IEEE802.3ae 10GBASE-SR/LR/ER/ZR
4).Complete metal housing for electromagnetism protection
5).Transmission Distance up to 80km(SMF)
6).Uncooled directly modulated DFB Laser
7).Temperature Range –5 to 70°C
8).Adaptable Power Supply (APS:+1.2V)
9).Hot pluggable 70-pin connector with XAUI electrical interface
10).Management and control via MDIO 2-wire interface
11).Compatible with RoHS
Products Lists
Part Number |
Specification |
|||||||||||
Data Rate |
Wavelenth |
Fiber |
Distance |
Temp. |
Source |
|||||||
X2 SC Duplex Port |
||||||||||||
RX2-85192-SRD |
10Gb/s |
850nm |
MM |
300m |
0~70 |
VCSEL |
||||||
RX2-31192-LRD |
10Gb/s |
1310nm |
SM |
10km |
0~70 |
DFB |
||||||
RX2-55192-ERD |
10Gb/s |
1550nm |
SM |
40km |
0~70 |
DFB |
||||||
RX2-55192-ZRD |
10Gb/s |
1550nm |
SM |
80km |
0~70 |
DFB |
||||||
