New Original 10GBASE-ER SFP+ 1550nm 40km DOM LC SMF Module 10Gbs Transceiver
- 1000 per Month
- T/T Credit Card
- 10G 10km 40km 80km 120km CWDM SFP+ Telecom Optical Transceiver Module
- 10G SFP+ LC LR 1310nm 10km 20km 40km Transceiver 10G-SFP-LR
- 10G WDM SFP+ BIDI TX-1490nm/RX-1550nm 80km BIDI SFP+ Transceiver Module
- Best seller 10GBASE-BX SFP+ 1270/1330nm 20km LC DOM Module
- SFP+ BIDI 10G SMF LC 20km 40km 60km 80km 100km optical transceiver modules
- Brand compatible 10gbps SFP+ module SR TRx 850nm 300m transceiver
Product Description

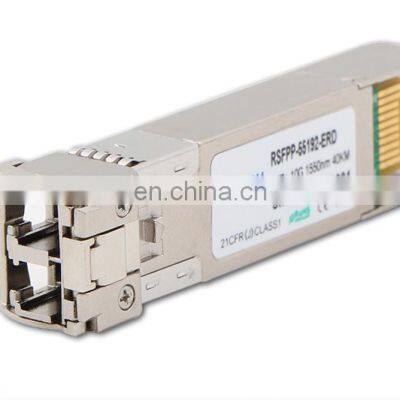

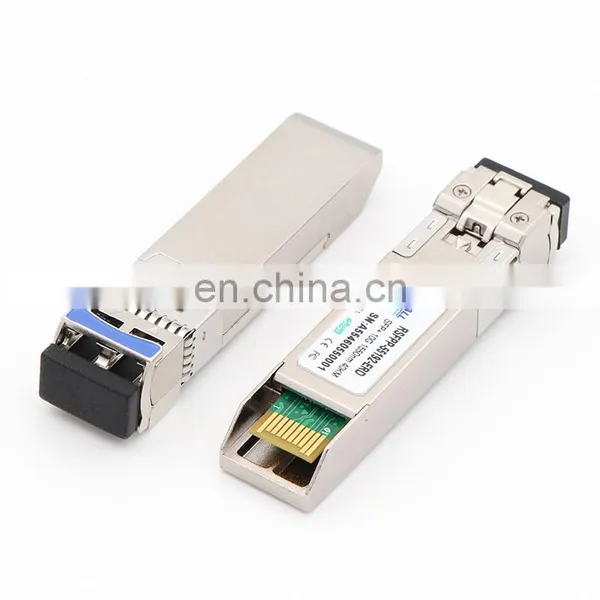

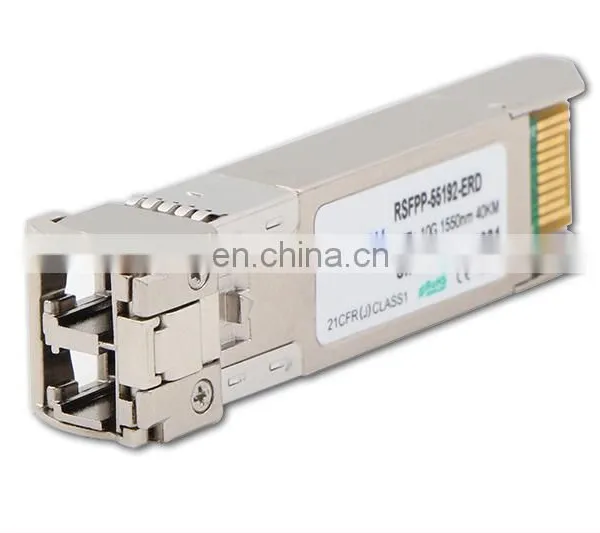

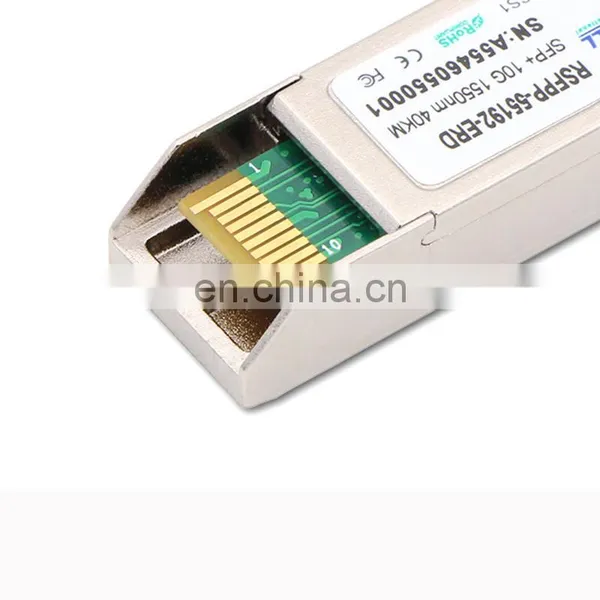

New Original 10GBASE-ER SFP+ 1550nm 40km DOM LC SMF Module 10Gbs Transceiver
1.This 10g 1550nm DFB 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber 2.For link length 40km.
3.The SFP+ LR module electrical interface is compliant to SFI electrical specifications.
4.The transmitter input and receiver output impedance is 100 Ohms differential.
5.Data lines are internally AC coupled.
6.The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.
7.SFI typically operates over 200 mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.
Features
1.Optical interface compliant to IEEE 802.3ae 10GBASE-ER
2.Electrical interface compliant to SFF-8431
3.Hot Pluggable
4.1550nm DFB transmitter, PIN photo-detector
5.Operating case temperature: 0 to 70 °C
6.Low power consumption
7.Applicable for 40km SMF connection
Applications
1.10GBASE-LR at 10.3125Gbps
2.10GBASE-LW at 9.953Gbps
3.Other optical links
Specification
Optical characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
|
Unit |
Values |
Operating Reach |
m |
10K |
Transmit |
||
Center wavelength (range) |
nm |
1260 -1355 |
Side Mode Suppression Ratio (min) |
dB |
30 |
Launched power |
||
– maximum |
dBm |
+0.5 |
– minimum |
dBm |
-8.2 Notes1 |
- OMA |
dBm |
-5.2 |
- OMA-TDP (min) |
dBm |
-6.2 |
Transmitter and dispersion penalty |
dB |
0 Notes4 |
Average launch power of OFF transmitter (max) |
dBm |
-30 |
Extinction ratio (min) |
dB |
3.5 Notes2 |
RIN12 OMA (max) |
dB/Hz |
-128 |
Optical Return Loss Tolerance (min) |
dB |
12 |
Receiver |
||
Center wavelength (range) |
nm |
1260-1355 |
Receive overload (max) in average power1 |
dBm |
0.5 |
Receive sensitivity (min) in average power1 |
dBm |
-14.4 Notes3 |
Receiver sensitivity (max) in OMA (footnote 2) |
dBm |
-12.6 Notes3 |
Receiver Reflectance (max) |
dB |
-12 |
Stressed receiver sensitivity (max) in OMA2 |
dBm |
-10.3 |
Vertical eye closure penalty (min)3 |
dB |
2.2 |
Stressed eye jitter (min)2 |
UIp-p |
0.7 |
Receive electrical 3dB upper cutoff frequency (max) |
GHz |
12.3 |
Receiver power (damage, Max) |
dBm |
1.5 |
Order Information
SFP+ (10G) | |||||||
RSFPP-85192-SRD | 10G | 850 | 300M | SFP+ | 0~70 | VSCEL+PIN | |
RSFPP-31192-LRD | 10G | 1310 | 10KM | SFP+ | 0~70 | DFB+PIN | |
RSFPP-55192-ERD | 10G | 1550 | 40KM | SFP+ | 0~70 | EML+PIN |
