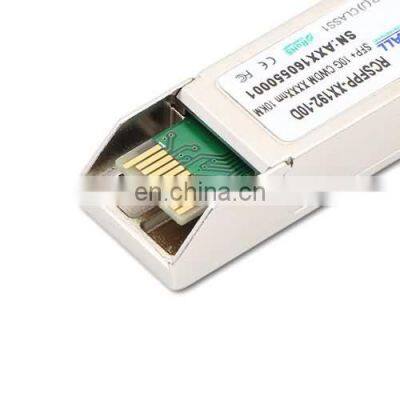

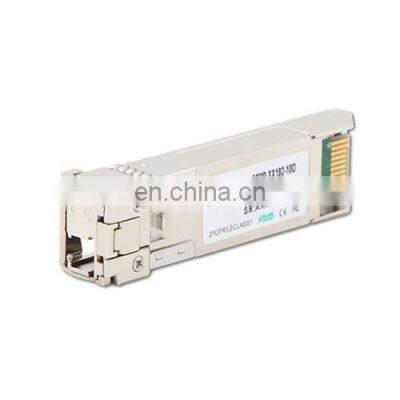

10g module 40km 80km 100km 120km 10gb cwdm sfp+ LC DOM module





1.Description

1).Rollball's 10gb cwdm SFP+ is designed to transmit and receive optical data over single mode optical fiber up to 120km.

2).The sfp+ module elecrical interface is compliant to SFI electrical specifications and the transmitter input and receiver output impedance is 100 Ohms.

3).The transmiter converts 10Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 10GBASE SR/LR/ER standard.

4).The receiver covers 10Gbit/s serial optical data into PECL or CML electrical data.



 2.Applications

1).Rack to rack

2).Premise

3).Metro

4).Data Centers



3.Features

1).10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR/LR/ER

2).Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

3).DFB transmitter, PIN photo-detector

4).2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

5).Operating case temperature: 0 to 70°C

6).All-metal housing for superior EMI erformance

7).Low power consumption

8).Advanced firmware allow customer system encryption information to be stored in transceiver

9).Cost effective SFP+ solution, enables higher port densities and greater bandwidth



 5.Product list

Part Number Data Rate Wavelenth Distance Package Temp. Source
XFP (10G)
RXFP-85192-SRD 10G 850 300M XFP 0~70 VSCEL+PIN
RXFP-31192-LRD 10G 1310 10KM XFP 0~70 EML+PIN
RXFP-55192-ERD 10G 1550 40KM XFP 0~70 EML+PIN
RXFP-55192-ZRD 10G 1550 80KM XFP 0~70 EML+APD
X2 (10G)
RX2-85192-SRD 10G 850 300M X2 0~70 VSCEL+PIN
RX2-31192-LRD 10G 1310 10KM X2 0~70 DFB+PIN
RX2-55192-ERD 10G 1550 40KM X2 0~70 EA-DFB+PIN
RX2-55192-ZRD 10G 1550 80KM X2 0~70 EA-DFB+APD
XENPAK (10G)
RXENPAK-85192-SRD 10G 850 300M XENPAK 0~70 VSCEL+PIN
RXENPAK-31192-LRD 10G 1310 10KM XENPAK 0~70 DFB+PIN
RXENPAK-55192-ERD 10G 1550 40KM XENPAK 0~70 EA-DFB+PIN
SFP+ (10G)
RSFPP-85192-SRD 10G 850 300M SFP+ 0~70 VSCEL+PIN
RSFPP-31192-LRD 10G 1310 10KM SFP+ 0~70 DFB+PIN
RSFPP-55192-ERD 10G 1550 40KM SFP+ 0~70 EML+PIN


DWDM XFP (10G) with DDMI, XX is C-Band and L-Band ITU, XX=17, 18, 19…, which 17=1563.86nm, 18=1563.05nm…
RDXFP-XX192-40D 10G XXXX.XX 40KM DWDM XFP 0~70 DFB+PIN
RDXFP-XX192-80D 10G XXXX.XX 80KM DWDM XFP 0~70 DFB+PIN

CWDM XFP(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm
RCXFP-XX192-10D 10G (1270-1330nm) 10KM CWDM XFP 0~70 DFB+PIN
RCXFP-XX192-40D 10G (1470-1610nm) 40KM CWDM XFP 0~70 EML+PIN

CWDM SFP+(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm
RCSFPP-XX192-10D 10G (1270-1330nm) 10KM CWDM SFP+ 0~70 DFB+PIN
RCSFPP-XX192-40D 10G (1270-1330nm) 40KM CWDM SFP+ 0~70 DFB+PIN





 10g module 40km 80km 100km 120km 10gb cwdm sfp optics10g module 40km 80km 100km 120km 10gb cwdm sfp optics10g module 40km 80km 100km 120km 10gb cwdm sfp optics





Payment & Shippment



1.Payment



10g module 40km 80km 100km 120km 10gb cwdm sfp optics



 2.Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc





 10g module 40km 80km 100km 120km 10gb cwdm sfp optics

.

Why Always Rollball?





Rollball is always at your services with our fiber optical products. We have more than 100 different models for your choices, you are sure to stand out with Rollball advantage: Absolutely no hidden costs and excellent products. You may check the clients feedback from all over the world. We guarantee what we have showed is 100% genuine and what else you are shooting for ?? .
