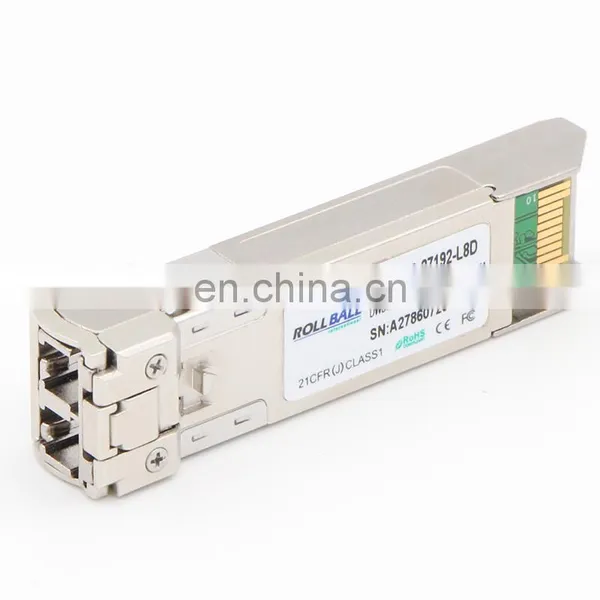

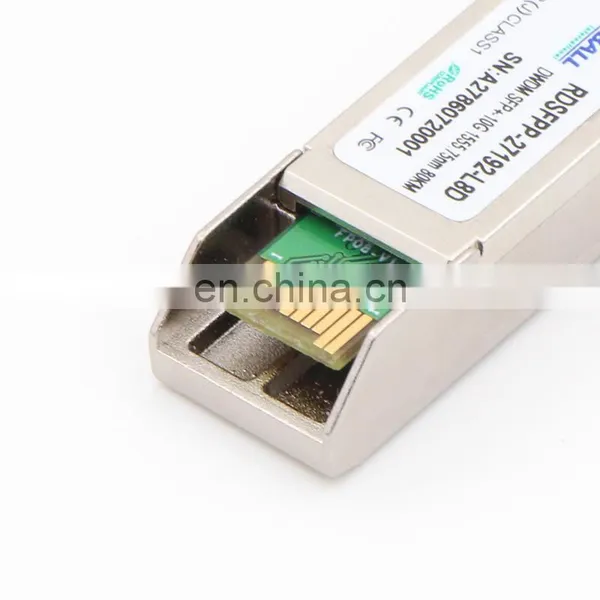

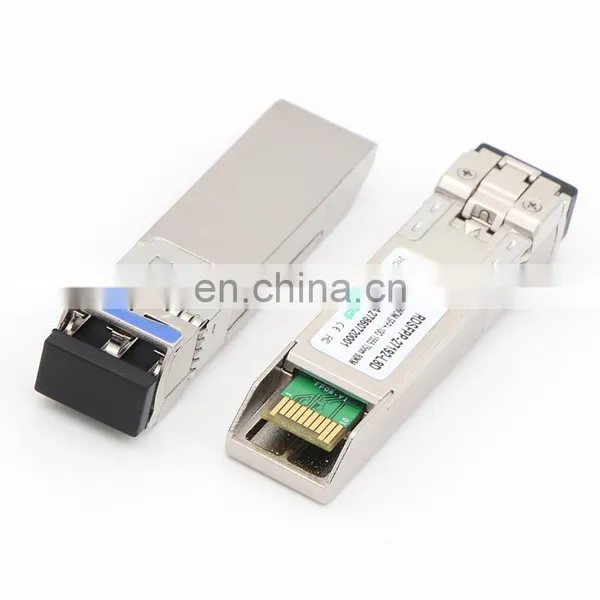

10G 40km 80km SFP DWDM transceiver modules
1.Description
ROLLBALL SFP+ ER/ZR DWDM Transceiver is a “Limiting module”, designed for 10G Ethernet, and 2G/4G/ 8G/10G Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
2.Applications
1).10G Ethernet (with/without FEC)
2). 10G Fiber Channel
3.Features
1).Compliant with SFF-8431,SFF-8432 and IEE802.3ae
2).10GBASE-ER/ZR, and 2G/4G/ 8G/10G Fiber Channel applications.
3).Suitable for use in 100GHz channel spacing DWDM systems
4).Cooled EML transmitter and APD receiver
5).link length up to 80km
6).Low Power Dissipation 1.4W Typical (Maximum:2W)
7).-5ºC to 70ºC Operating Case Temperature
8).Single 3.3V power supply
9).Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
10).RoHS6 compliant and lead free
4.Product list
Part Number |
Product Description |
RDSFPP-XX192-ZR |
XX= ITU Grid 17~61, 10Gbps, DWDM SFP+ 80km, -5ºC ~ +70ºC |
RDSFPP-XX192-ER |
XX= ITU Grid 17~61, 10Gbps, DWDM SFP+ 40km, -5ºC ~ +70ºC |
