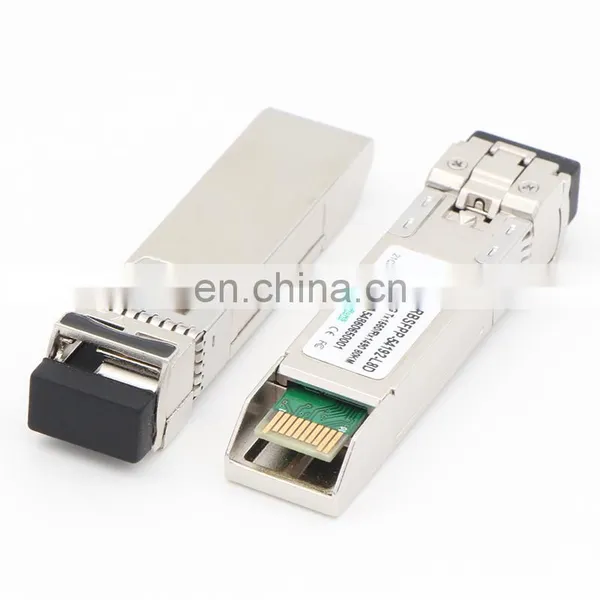

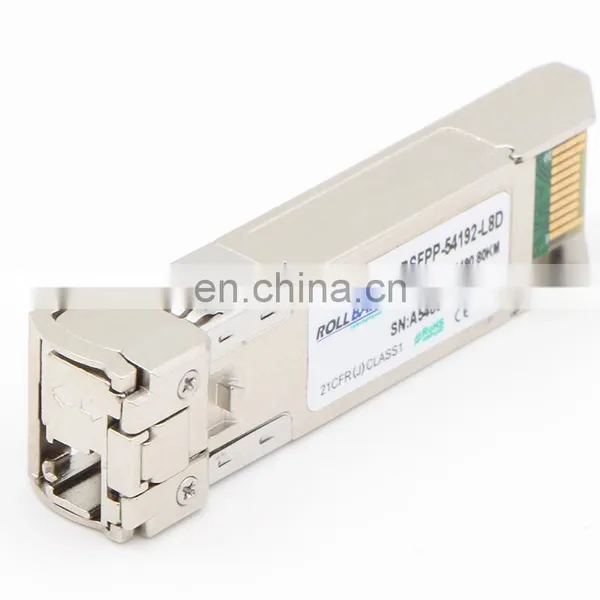

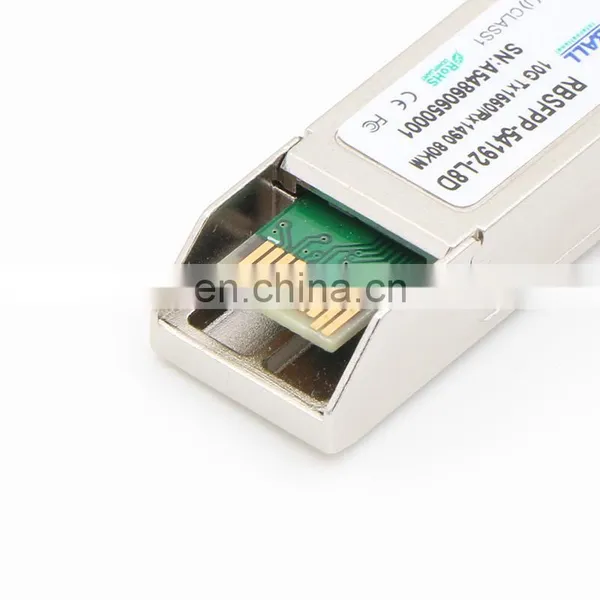

10G BIDI 80KM SFP+ Transceiver 1550nm SMF LC 10G XFP/SFP+ Metro Optical Transceiver

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

10G BIDI 80KM SFP+ Transceiver 1550/1490nm SMF LC/SC /10G XFP/SFP+ Metro Optical Transceiver

1.Description

The bidi sfp+module (RBSFPP-XXXX192-X0R series) single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
The RBSFPP-XXXX192-X0R module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

2.Applications

10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
1G/2G/4G/ 8G/10G Fiber Channel applications.

3.Features

Up to 10.3Gb/s data rates
1G/2G/4G/ 8G/10G Fiber Channel applications.
Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
Single 3.3V Supply
Up to 10km on 9/125um SMF
A:1270nm DFB Laser transmitter,1330nm receiver
B:1330nm DFB Laser transmitter,1270nm receiver
Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
SFP+ MSA SFF-8431 Compliant
Digital Diagnostic SFF-8472 Compliant
RoHS compliant and Lead Free
Operating case temperature: Commercial 0°C to 70°C / Industrial -40℃~+85℃
For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.

4. Order list

Part Number	Product Description
RBSFPP-2733192-10R	1270nm/1330nm, 10Gbps, 10km, 0ºC ~ +70ºC
RBSFPP-3327192-10R	1330nm/1270nm, 10Gbps, 10km, 0ºC ~ +70ºC
RBSFPP-2733192-20R	1270nm/1330nm, 10Gbps, 20km, 0ºC ~ +70ºC
RBSFPP-3327192-20R	1330nm/1270nm, 10Gbps, 20km, 0ºC ~ +70ºC
RBSFPP-2733192-40R	1270nm/1330nm, 10Gbps, 40km, 0ºC ~ +70ºC
RBSFPP-3327192-40R	1330nm/1270nm, 10Gbps, 40km, 0ºC ~ +70ºC
RBSFPP-2733192-60R	1270nm/1330nm, 10Gbps, 60km, 0ºC ~ +70ºC
RBSFPP-3327192-60R	1330nm/1270nm, 10Gbps, 60km, 0ºC ~ +70ºC
RBSFPP-2733192-80R	1270nm/1330nm, 10Gbps, 80km, 0ºC ~ +70ºC
RBSFPP-3327192-80R	1330nm/1270nm, 10Gbps, 80km, 0ºC ~ +70ºC

5. Normal 10G Product list

Part Number

Data Rate

Wavelength

Distance

Package

Temp.

Source

XFP (10G)

RXFP-85192-SRD

10G

850

300M

XFP

0~70

VSCEL+PIN

RXFP-31192-LRD

10G

1310

10KM

XFP

0~70

EML+PIN

RXFP-55192-ERD

10G

1550

40KM

XFP

0~70

EML+PIN

RXFP-55192-ZRD

10G

1550

80KM

XFP

0~70

EML+APD

X2 (10G)

RX2-85192-SRD

10G

850

300M

0~70

VSCEL+PIN

RX2-31192-LRD

10G

1310

10KM

0~70

DFB+PIN

RX2-55192-ERD

10G

1550

40KM

0~70

EA-DFB+PIN

RX2-55192-ZRD

10G

1550

80KM

0~70

EA-DFB+APD

XENPAK (10G)

RXENPAK-85192-SRD

10G

850

300M

XENPAK

0~70

VSCEL+PIN

RXENPAK-31192-LRD

10G

1310

10KM

XENPAK

0~70

DFB+PIN

RXENPAK-55192-ERD

10G

1550

40KM

XENPAK

0~70

EA-DFB+PIN

BIDI SFP+ (10G)

RBSFPP-2733192-10D	10G	1270Tx/1330RX	10KM	SFP+	0~70	DFB+PIN
RBSFPP-3327192-10D	10G	1330Tx/1270RX	10KM	SFP+	0~70	DFB+PIN
RBSFPP-2733192-40D	10G	1270Tx/1330RX	40KM	SFP+	0~70	DFB+PIN
RBSFPP-3327192-40D	10G	1330Tx/1270RX	40KM	SFP+	0~70	DFB+PIN

SFP+ (10G)

RSFPP-85192-SRD

10G

850

300M

SFP+

0~70

VSCEL+PIN

RSFPP-31192-LRD

10G

1310

10KM

SFP+

0~70

DFB+PIN

RSFPP-55192-ERD

10G

1550

40KM

SFP+

0~70

EML+PIN

RSFPP-55192-ZRD

10G

1550

80KM

SFP+

0~70

DWDM XFP (10G) with DDMI, XX is C-Band and L-Band ITU, XX=17, 18, 19…, which 17=1563.86nm, 18=1563.05nm…

RDXFP-XX192-40D

10G

XXXX.XX

40KM

DWDM XFP

0~70

DFB+PIN

RDXFP-XX192-80D

10G

XXXX.XX

80KM

DWDM XFP

0~70

DFB+PIN

CWDM XFP(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm

RCXFP-XX192-10D

10G

(1270-1330nm)

10KM

CWDM XFP

0~70

DFB+PIN

RCXFP-XX192-40D

10G

(1470-1610nm)

40KM

CWDM XFP

0~70

EML+PIN

CWDM SFP+(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm

RCSFPP-XX192-10D

10G

(1270-1330nm)

10KM

CWDM SFP+

0~70

DFB+PIN

RCSFPP-XX192-40D

10G

(1270-1330nm)

40KM

CWDM SFP+

0~70

DFB+PIN
