Home > Light Industry & Daily Use > Exhibition and Advertising Equipment > Truss > HY-ST315 Outdoor Towable Stage Trailer Used for Live Events
HY-ST315 Outdoor Towable Stage Trailer Used for Live Events
US$ 44000 - 48500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HUAYUAN
Place of Origin:
China
Model Number:
HY-ST315
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
30 days
Related Products
-
Outdoor Hydraulic Portable Stage Trailer for Live EventsUS$ 44000 - 48500MOQ: 1 Set -
P4 P5 P6 Full Color LED Screen Billboard TrailerUS$ 35800 - 48500MOQ: 1 Set
-
Outdoor Hydraulic Portable Stage Trailer for Live EventsUS$ 44000 - 48500MOQ: 1 Set
-
HUAYUAN Mobile Stage Manufacturer S455 Semi Trailer Stage for Outdoor EventUS$ 69800 - 129800MOQ: 1 Set
-
HUAYUAN ST315 Hydraulic Portable Events Stage TrailerUS$ 44000 - 48500MOQ: 1 Set
Brand Name
HUAYUAN
Place of Origin
China
Model Number
HY-ST315
| STRUCTURAL PARAMETERS OF WHOLE VEHICLE | ||||||||||||||
| product name | towable stage trailer | Model | HY-ST315 | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 8000×2400×3660 | stage size(mm) | 6600×8000 | Curb weight(tons) | 5000 | |||||||||
| Exterior plate material | Aluminum alloy plate | stage area | 52-81mm | Floor materials | Composite wood floor | |||||||||
| Mesa height(mm) | 1000-1300 | floor loading | 350Kg/mm | Lighting truss | Transverse 7 longitudinal 4 | |||||||||
| framework material | steel structure | Set-up | 2×30 minutes | Light truss load bearing | 450 kg / 1 | |||||||||
| CHASSIS PARAMETERS | ||||||||||||||
| Axle number | 2 | axle | 2.5 tons | Brakes | Electromagnetic brake | |||||||||
| brake system | Removable single lever | Tyre number | 4 | Tire model | 265/70R16LT | |||||||||
| Wheelbase(mm) | 1050 | Suspension type | Plate spring | Drag cover | 70# | |||||||||
| LED SCREEN PARAMETERS | ||||||||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 5760×2400 | 5760×2400 | 5760×2304 | 5760×2400 | 5760×2400 | |||||||||
| Area (mm) | 13.8 | 13.8 | 13.3 | 13.8 | 13.8 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness(cd/m2) | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage(V) | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life(hours) | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
Product Description

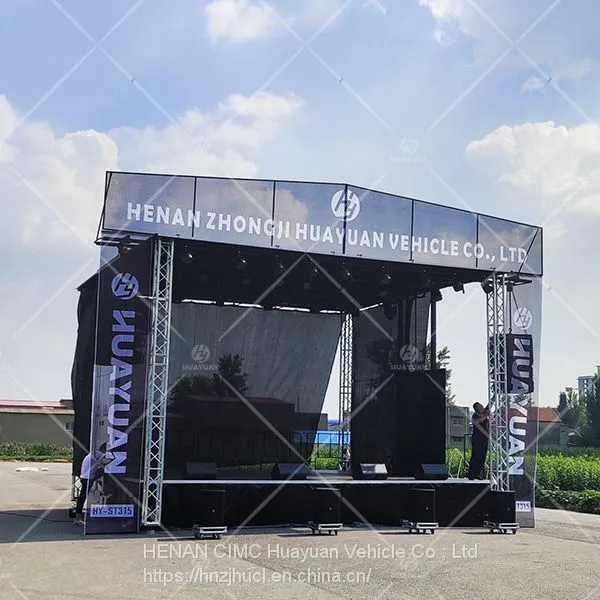

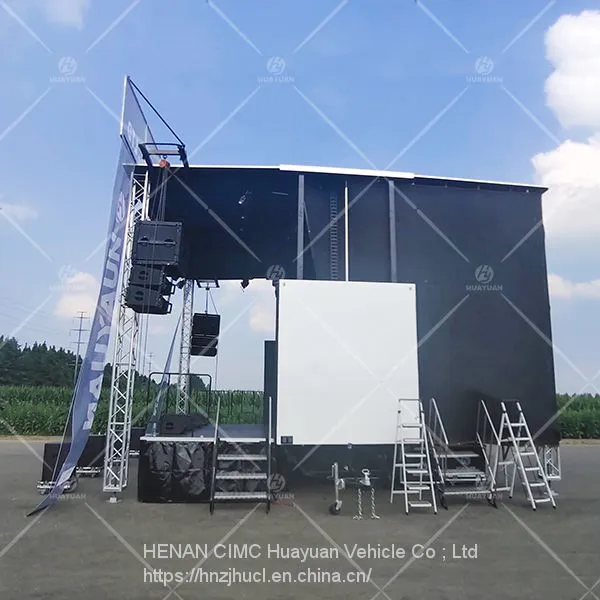

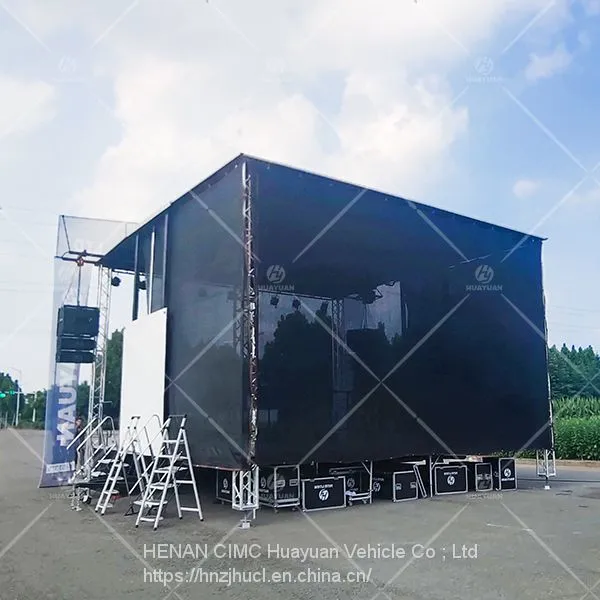

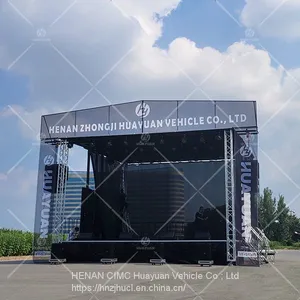

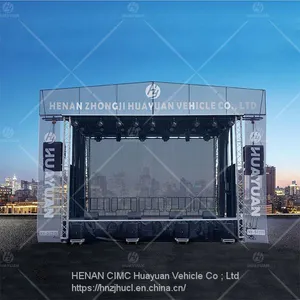

HY-ST315 towable stage trailer, the remote control hydraulic
system can be used to complete the construction of the platform
foundation within 20 minutes, simple, fast, safe and reliable.
The external dimension of the stage trailer is 8m × 2.5m × 3.66m,
and the stage size after expansion is 6.6m × 8m.
After the spread of the roof for the full bearing truss structure, fully
meet the top hanging fixed large capacity light and sound system,
including light and sound, LED screen all car electrical equipment
access power has been set fixed in the car, and a professional
distribution cabinet.
Choose the lighting and sound system, set the top and side advertising
display rack, according to different scenes to create the stage advertising
display and modeling needs you need.
All stage forms of our mobile stage are pre-installed in the car area,
which can be modified to optimize the internal space according to the
characteristics of activities. It is more efficient and rapid without the
defect of time-consuming and exhausting of traditional stage construction
and disassembly, and can be closely combined with other marketing
communication means to achieve functional derivation. Bring new and
better experience for your outdoor activities.
Packaging & Shipping
1. Shipping term:According to different types of products, we recommend bulk cargo, container, frame, roll-on and so on.
2. Delivery time: 30-45 Working days.
3. Terms of delivey: EXW,FOB,CFR,CIF etc.
FAQ
1. Payment method:
TT (Telegraphic Transfer)
2. Do you accept customization?
We accept customization
3. Order processing time:
50% via T/Tas deposit; balanceneedsto be paidbeforedelivery.
4. Mode of transport:
According to different types of products, we recommend bulk cargo, container, frame, roll-on and so on.
5. Quality control
We have our own experienced QC, each order will pass strict inspection and testing before shipment.
Customers can check the goods by video or through third-party testing.
6. Post-service:
A. Our sales team will respond to your questions within 24 hours (except holidays)
B. Provide technical support and video guidance at any time.
Contact us
Dear customer,
Thank you for viewing all my products.
I am Alice, Sales Manager of Henan CIMC Huayuan Vehicle Co., Ltd.
The picture below is my contact information.
I have more than 3 years of working experience in the mobile stage vehicle industry. Will help you solve many professional problems immediately and provide you with the most suitable product suggestions! When you communicate, you will find that I am very sincere and enthusiastic, and I will reply you as soon as possible.
Darling, don't hesitate to contact me. I will always stand by your side to help and think, which will make you feel free. We sincerely welcome you to our factory!
I will be your best partner, come soon!
