| STRUCTURAL PARAMETERS OF WHOLE VEHICLE | |||||
| Product name | Roadshow traliers | Model | HY-LR425-1 | Brand | HUAYUAN |
|
Overall dimension(mm) |
13000*2500*3950 | Totalmass(kg) | 13500 |
Curb weight(tons) |
13500 |
| Lifting way | hydraulic system | framework material | steel structure |
Power distribution |
mains supply/generator |
| Stage size (mm) | 8600×3100 | Expansion size(mm) | 9000×1500(2000)×2300 |
Mesa height(mm) |
1550 |
|
Hydraulic control mode |
Remote controls | Guardrail/handrail | Stainless steel 304 |
Screen lifting structure |
Guide column + hydraulic cylinder |
| Working voltage | 220V |
Hydraulic control voltage |
24V | Screen lift height | 2m |
| SEMI-TRAILER PARAMETERS | |||||
| Axle number | 2 | Axle | 13 tons Fuhua bridge | Brakes | Exhaust brake |
| Brake system | ABS(EBS) | Tyre number | 8+1 | Tire model | 10.00R20 |
| Wheelbase(mm) | 7740 | Suspension type | Plate spring | Traction pin | 90# |
| LED SCREEN PARAMETERS | |||||
| Specifications | P4 | P5 | P6 | P8 | P10 |
| Size (mm) | 5760×2080 | 5760×2080 | 5760×2112 | 5760×2080 | 5760×2080 |
| Area (sqm) | 11.98 | 11.98 | 12.16 | 11.98 | 11.98 |
|
Module specification (mm) |
320*160 | 320*160 | 192*192 | 320*160 | 320*160 |
|
Screen brightness(cd/m2) |
≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 |
|
Working voltage(V) |
5 | 5 | 5 | 5 | 5 |
| Refresh rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Service life(hours) | ≥50000 | ≥50000 | ≥50000 | ≥50000 | ≥50000 |

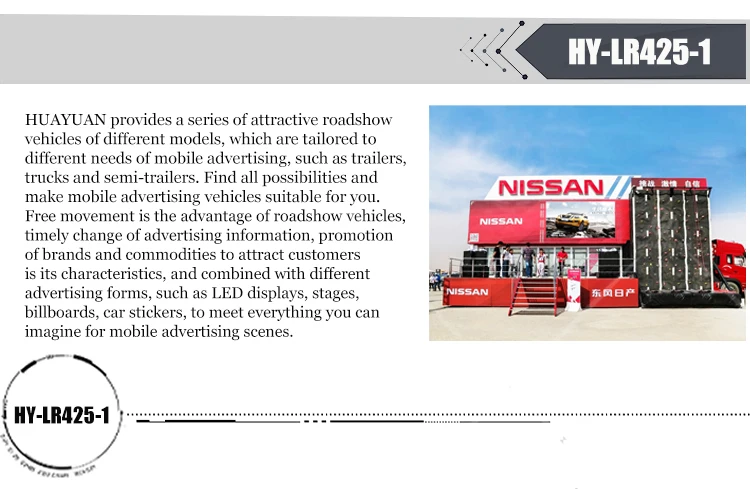

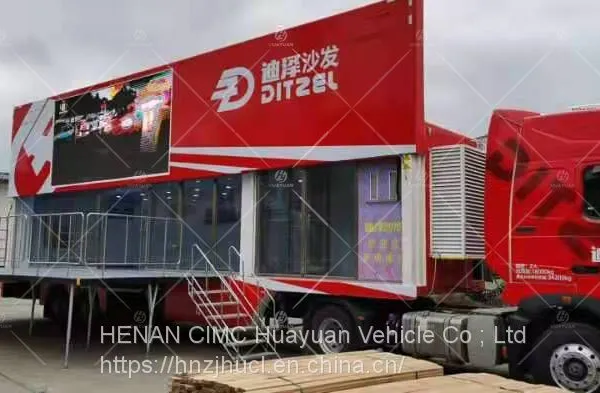

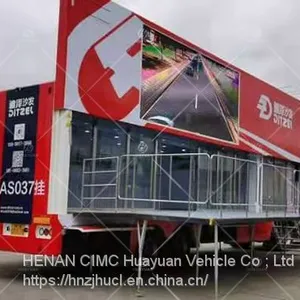

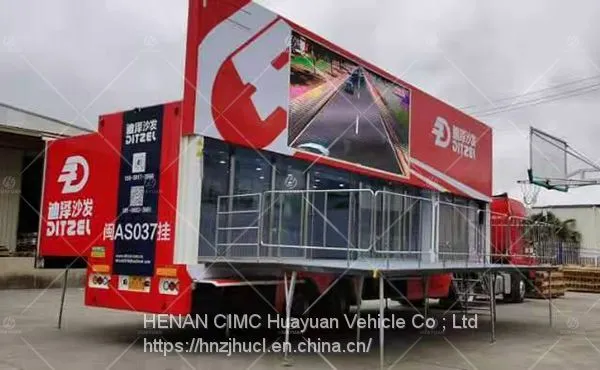

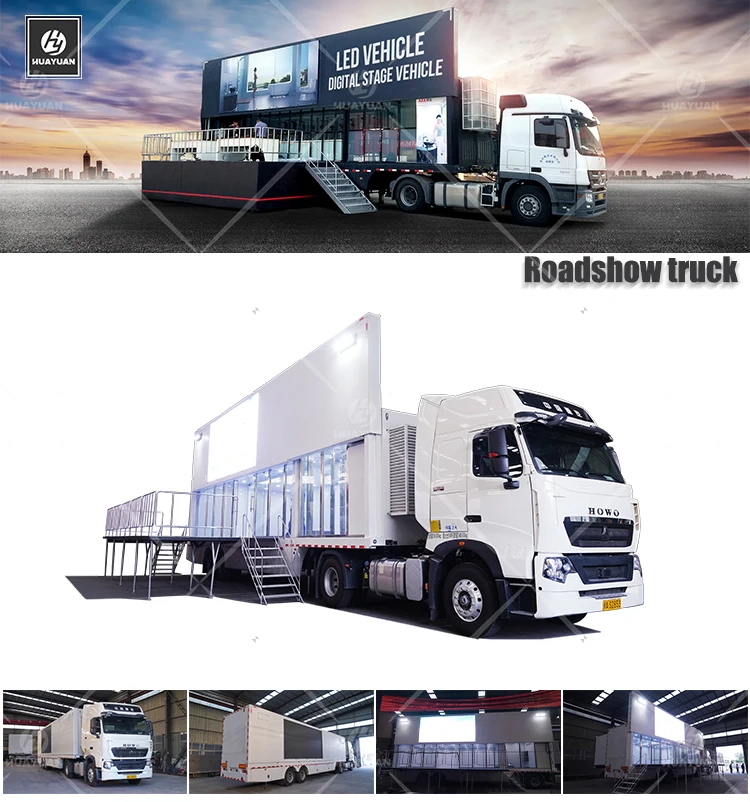

HY-LR425-1 advertising semi-trailer and other Roadshow traliers fleets can be customized to every possible size and space, manufactured to the highest specifications, with flexible and simple operation, one can set up the entire layout of the LR425-1 space in just one hour.
The structure frame of advertisement semi-trailer adopts international standard high quality
steel, the structure is firm; Interior decoration can be customized according to different
mobile advertising needs, beautiful appearance; The interior of the space can be equipped
with suitable electrical facilities to provide you with more convenient indoor functions: waterproof and shockproof outdoor full-color fixed large screen is installed on both sides
of the vehicle, which can be expanded to realize remote playback, timing, interposition, cycle and other playback modes.

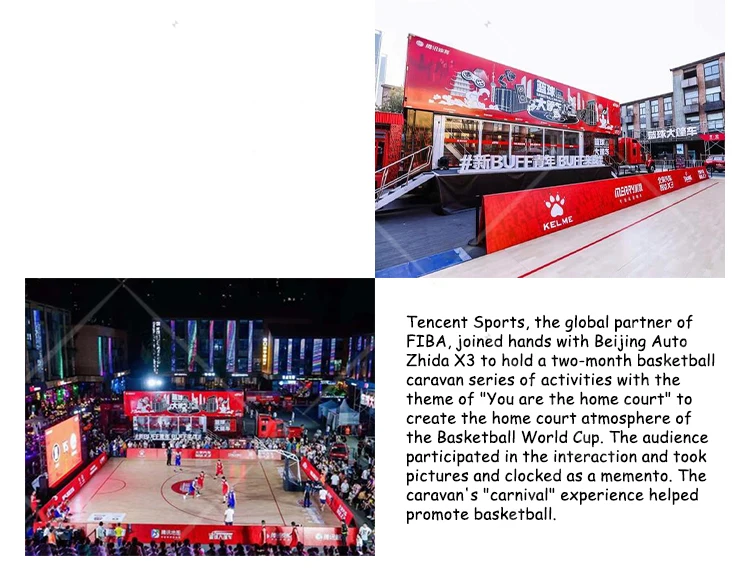

The outside of the advertising semi-trailer can set up a stage of 26-36 square meters according to the demand, you can hold live promotions, speeches, dances, concerts and other atmospheric activities. Give your mobile AD vehicle new traction and your brand and merchandise more clout. Make your ads more exciting and interesting.

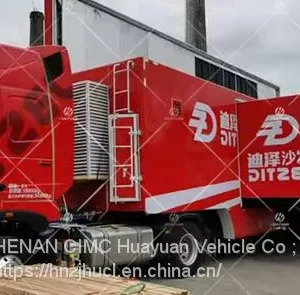

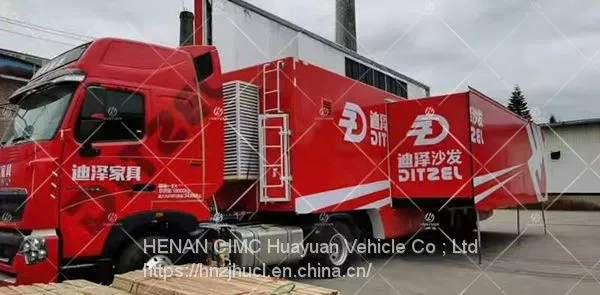

Ultra-quiet generator consumes less oil and has low noise. It is placed in a specially customized generator room inside the advertising semi-trailer to increase the sound
insulation effect. You do not need to worry about the noise of the generator affecting
your on-site atmosphere, providing more than 24 hours of continuous power supply for
your on-site activities and letting your roadshow vehicle go wherever you want.
1. Guarantee the whole car for one year.
2. The professional technical team will provide you and your end users with the services of various product problems.
3. Strong r&d team to meet customer needs.: style, color, steering wheel position, etc.
4. Show your order flow from time to time via photos, video, what-app, or email.
5. Tailor solutions and marketing plans to your local market to expand it.8.
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2.MOQ:
No requirement for testing and trial order
3. Handling time for an order:
Within 10 days supplied from stock
4. Shipping way:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
5. Quality Control:
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
6. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality.
