| STRUCTURAL PARAMETERS OF WHOLE VEHICLE | |||||
| Product name | hydraulic outdoor stage truck with | Model | HY-T255-6 | Brand | HUAYUAN |
| Overall dimension(mm) | 9980×2480×3985 | Stage size(mm) | 12.72M×8.92M | Curb weight(tons) | 10700 |
| Exterior plate material | Honeycomb composite board | Stage area | 61.5-93.5m2 | Floor materials | Composite wood floor |
| Mesa height(mm) | 1300-1550 | Floor loading | 400Kg/m2 | Lighting truss | Optional |
| Framework material | Steel structure | Set-up | 2×1 hours | Light truss load bearing | 450 kg / 1 |
| CHASSIS PARAMETERS | |||||
| Brand | Brand | Chassis models | HFC5161XXYP3K2A47V | Emission standards | Ⅱ,Ⅲ |
| Fuel | Diesel | Engine type | WP6.180E50 | Power (kw) | 132 |
| Displacement (ml) | 6750 | Tire size | 9.00R20 16PR | Axial distance (mm) | 5700 |

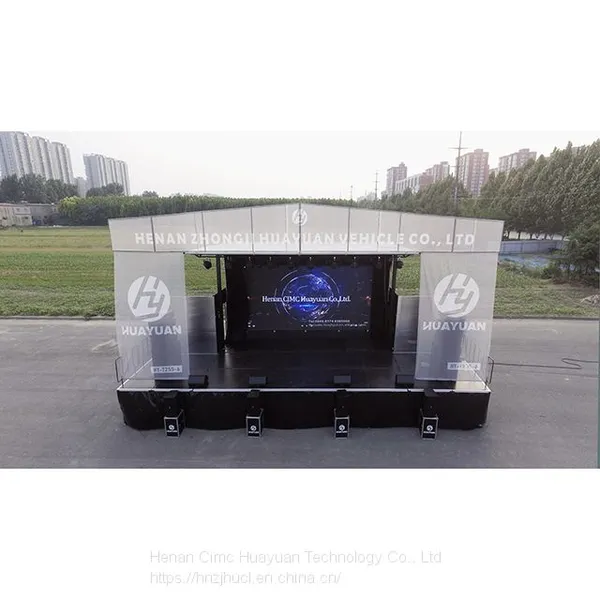

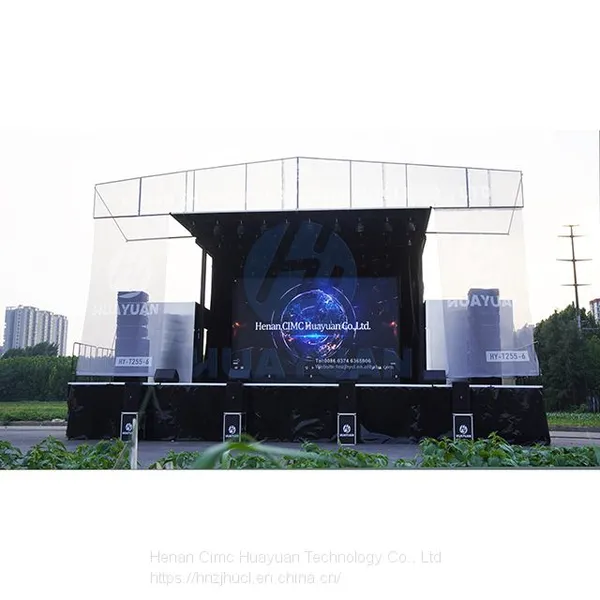

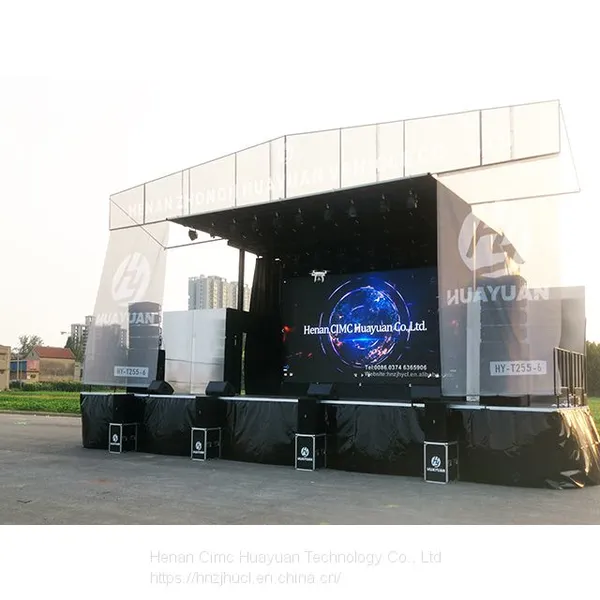

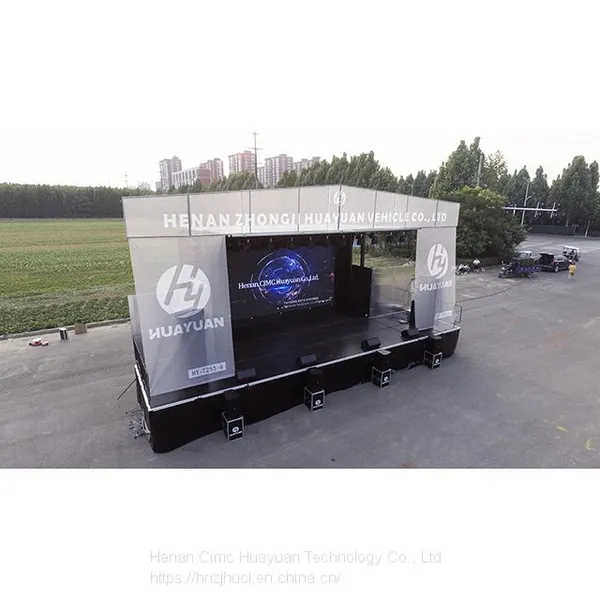

HY-T255-6 7.8m hydraulic stage truck, the remote control hydraulic system can be used to complete the construction of the platform foundation within 20 minutes, simple, fast, safe and reliable.
The external dimension of the stage car is 10m × 2.5m × 3.95m, and the stage size after expansion is 12.72m × 8.92m. The distance from the stage floor to the ceiling can be selected in three sizes: 4.7m, 6m and 9m.
After the spread of the roof for the full bearing truss structure, fully meet the top hanging fixed large capacity light and sound system, including light and sound, LED screen all car electrical equipment access power has been set fixed in the car, and there is a professional distribution cabinet.
The screen size of the car is 6 meters ×3 meters, 3~5 screens can be set according to the needs, to achieve a more cool stage scene display.
Choose the lighting and sound system, set the top and side advertising display rack, according to different scenes to create the stage advertising show and modeling needs you need.
All stage forms of our stage car are pre-installed in the car area, which can be modified to optimize the internal space according to the characteristics of activities. It is more efficient and rapid without the
defect of time-consuming and exhausting of traditional stage construction and disassembly, and can be closely combined with other marketing communication means to achieve functional derivation. Bring new and better experience for your outdoor activities.
