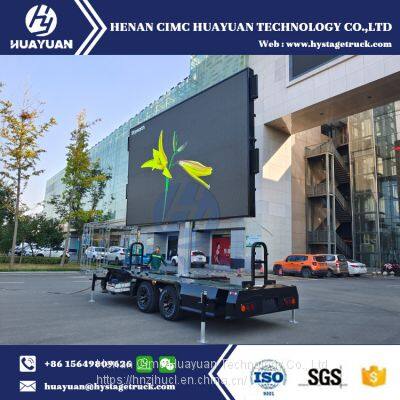

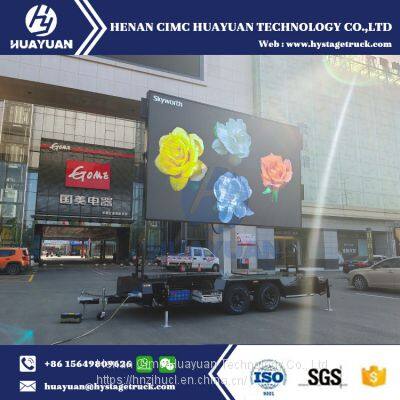

HY-LT185 Billboard Trailer's LED screen for double-sided visual 360° rotation with barrier-free coverage
LED large screen folding technology, bring stunning and varied visual experience:
LED screen can play both sides at the same time when folding, to achieve 360° barrier-free visual coverage;
When expanded, the screen can reach 16.38 Square meters, and the visual effect is greatly improved.
At the same time, due to the effective reduction of the transportation limit height, can meet the special area transportation placement, expand the extension of media coverage.
| VEHICLE PARAMETERS | ||||||||||||||
| product name | LED screen billboard trailer | Model | HY-LT185 | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 6800×2250×2850 | TOTAL MASS | 3800 | Curb weight(tons) | 3300 | |||||||||
| Lifting way | hydraulic system | stable system | Semi-automatic screw type | power distribution | mains supply /generator | |||||||||
| framework material | steel structure | Platform height (mm) | 800 | Screen lift height | 1.4m(360) | |||||||||
| TRAILER PARAMETERS | ||||||||||||||
| TOWING | PICKUP/SUV | Tyre number | 4 | Brakes | electric brake (12v/24v) | |||||||||
| Suspension type | Plate spring | Tire model | 265/70R16LT | Minimum turning diameter(mm) | ≤18000 | |||||||||
| Single wheel bearing(kg) | 1260 | Axle number | 2 | Traction pin | 50# | |||||||||
| LED SCREEN PARAMETERS | ||||||||||||||
| specifications | P3 | P4 | P5 | P6 | P8 | |||||||||
| Size (mm) | 5120×3200 | 5120×3200 | 5184×3264 | 5184×3264 | 5120×3200 | |||||||||
| Area (square) | 16.38 | 16.38 | 16.38 | 16.92 | 16.38 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness(cd/m2) | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage(V) | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | ≥3840 | |||||||||
| Service life(hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | |||||||||
1,Shipping term:whole vehicle or in parts,by container or by bulk,standard seaworthy wooden boxes are available.
2,Delivery time:30-45 Working days.
3,Delivery term:EXW,FOB,CFR,CIF etc.
