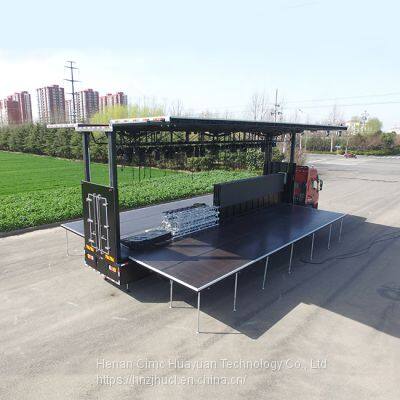

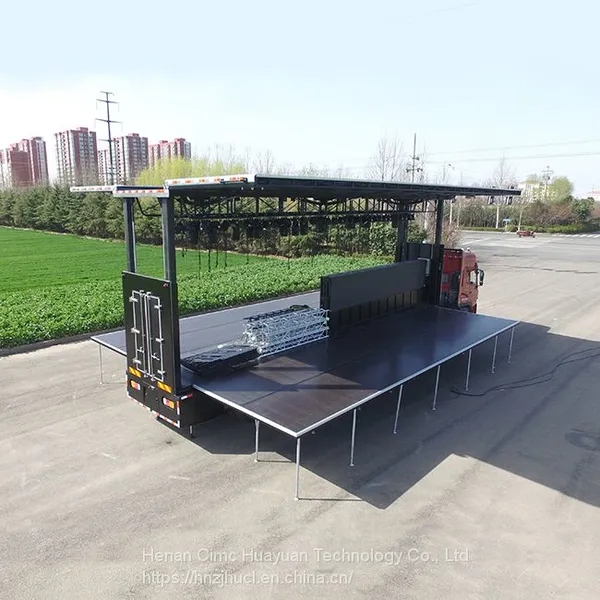

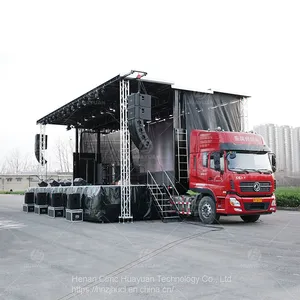

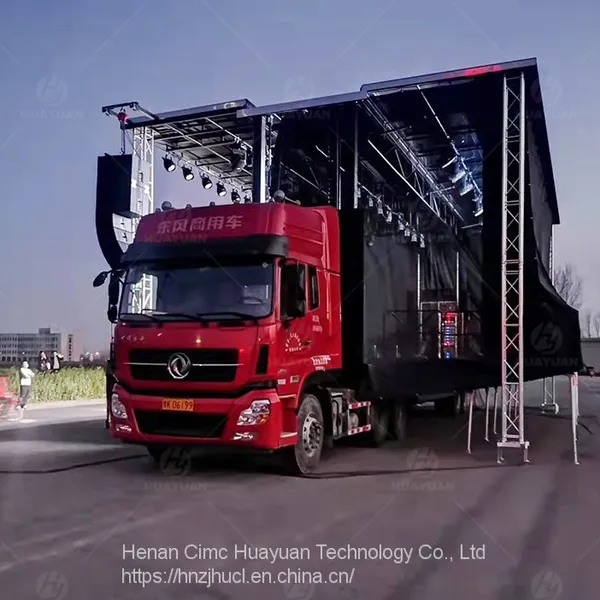

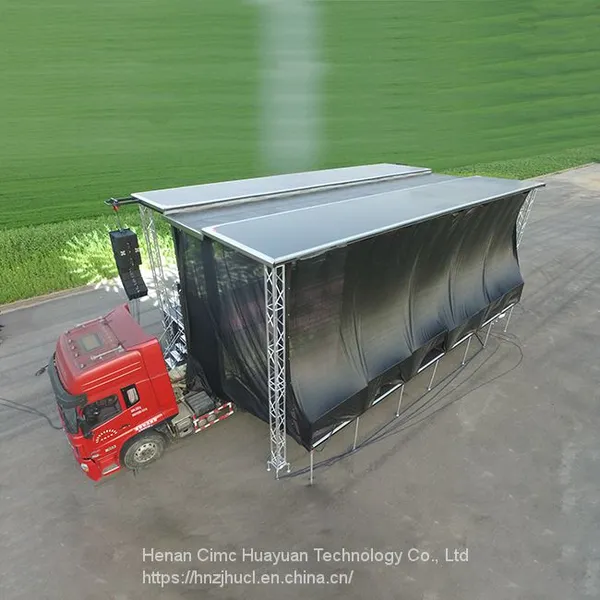

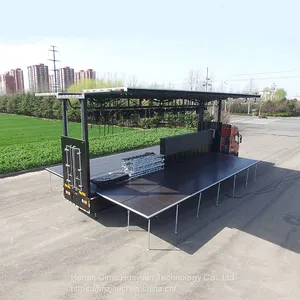

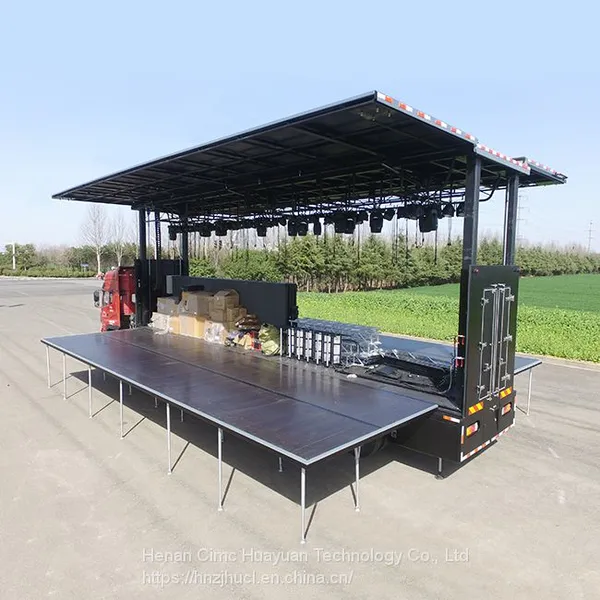

HUAYUAN S455 With Lights and Sound Outdoor Event Podium Concert Stage Truck

 Model

HY-S455

 Brand

HUAYUAN

 product name

Church Gospel truck

 Overall dimension(mm)

13000×2500×4000

 stage  size(mm)

11900×8820

 Curb weight(tons)

14.25

 stage area (m2)

105

 Mesa height(mm)

1600-1900

 Exterior plate material

Honeycomb composite board

 Floor materials

Composite wood floor

 framework material

steel structure

 floor loading(Kg/m2)

400

 Lighting truss

Transverse7 longitudinal 4

 Light truss load bearing kg / 1

450

 Set-up

2×1.5 hours

 Rigging

10tons

 SEMI-TRAILER PARAMETERS

 Axle number

2

 axle

13 tons Fuhua bridge

 Brakes

exhaust brake

 Traction pin

50#

 Tyre number

8+1

 Tire model

10.00R20

 Wheelbase(mm)

7740

 Suspension type

Plate spring

 LED SCREEN PARAMETERS

 Specifications

P4

P5

P6

P8

P10

 Size (mm)

6400×3200

6400×3200

6528×3264

6400×3200

6400×3200

 Area (m2)

20.48

20.48

21.3

20.48

20.48

 Module Specification (mm)

320*160

320*160

192*192

320*160

320*160

 Screen brightness(cd/m2)

≥6000

≥6000

≥5000

≥5000

≥5000

 Working voltage(V)

5

5

5

5

5

 Refresh rate(Hz)

≥1920

≥1920

≥1920

≥1920

≥1920

 Service life(hours)

  ≥50000

≥50000

≥10000

≥50000

≥50000
