Home > Products > promotion products > SMD Coil Inductor 2R2 2.2uH 6A

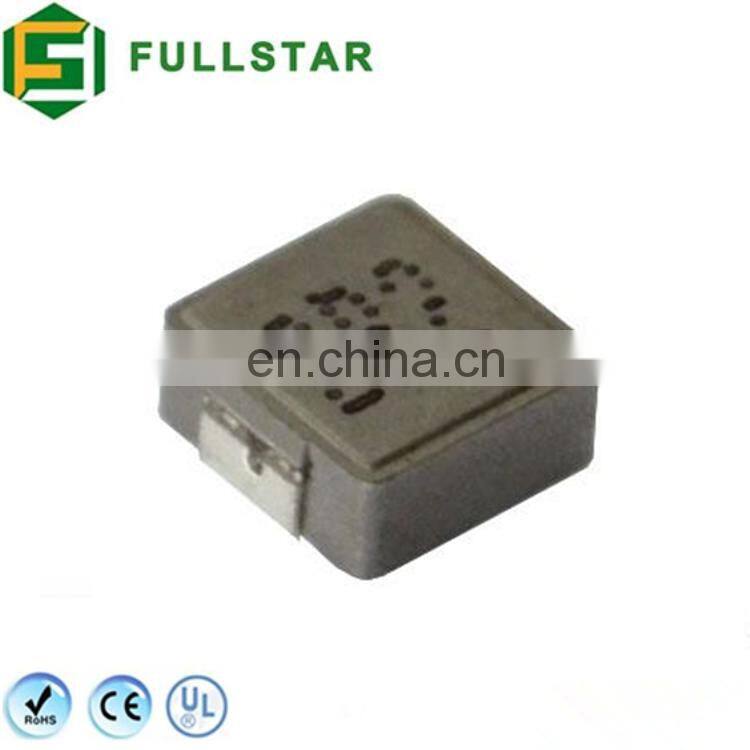

SMD Coil Inductor 2R2 2.2uH 6A
- T/T Credit Card
You May Like
-
100A/5A 150A/5A 200A/5A 300A/5A 400A/5A Strong Anti-magnetic Black Split-core Current Transformers
-
EE80 and EE110 High Quality Flyback Transformer EE TYPE Bobbin
-
5A To 600A TC Line Split-Core Current Transformer Input 333MV
-
5.6KW High Power Transformer Electrical High Frequency Planar Transformer
-
High Frequency Transformer EE25 Horizontal / Vertical Chinese Transformer
-
EI Transformer Plastic Bobbin
Product Description
SMD Coil Inductor 2R2 2.2uH 6A
| Part Number |
L (±20%) uH |
DCR Max mΩ |
Irms Max A |
Isat Max A |
| SMD Inductor PHS 0420-R10M-HG |
0.1 |
4.0 | 12 | 22 |
| SMD Inductor PHS 0420-R22M-HG | 0.22 | 6.05 | 12 | 14 |
| SMD Inductor PHS 0420-R47M-HG |
0.47 |
11.6 | 10 | 12 |
| SMD Inductor PHS 0420-R56M-HG | 0.56 | 16 | 8 | 10 |
| SMD Inductor PHS 0420-R68M-HG | 0.68 | 20 | 7 | 9 |
| SMD Inductor PHS 0420-1R0M-HG | 1.0 | 27 | 4.5 | 7 |
| SMD Inductor PHS 0420-1R2M-HG | 1.2 | 27 | 4 | 6.5 |
| SMD Inductor PHS 0420-1R5M-HG | 1.5 | 42 | 5 | 6 |
| SMD Inductor PHS 0420-2R2M-HG | 2.2 | 58 | 4 | 6 |
| SMD Inductor PHS 0420-3R3M-HG | 3.3 | 87 | 3 | 4 |
| SMD Inductor PHS 0420-4R7M-HG | 4.7 | 115 | 3 | 4 |
| SMD Inductor PHS 0420-6R8M-HG | 6.8 | 123 | 2.5 | 3.5 |
| SMD Inductor PHS 0420-8R2M-HG | 8.2 | 216 | 2 | 2 |
| SMD Inductor PHS 0420-100M-HG | 10.0 | 230 | 2 | 2 |
| Part Number | A | B | C | D | E |
| SMD Inductor PHS 0420 |
4.06±0.25 |
4.45±0.3 | 2.0 MAX | 1.5±0.5 | 1.0±0.5 |
![]() |
![]() |
![]() |
1500 PCS of Inductor on 1 Tape.
9 Tapes in 1 carton box.
Carton Box dimensions: 35*35*15cm.
Carton Weight: 6KG.
SHAANXI FULLSTAR ELECTRONICS CO., LTD is specialized in electronic and magnetic components.
Our main products are power inductors and High-frequency transformers. The products are exported to more than 40 countries and regions.
Our factories have 20 years' experience in electronics field and the annual volume is above 200,000,000 pieces. We are an ISO9001:2008 certified company.
Our operating policy is “Quality comes first, customer foremost”.
Engaging , learning and mastering advanced technology , Fullstar’s excellent team provides high quality products, quick delivery, strong technical support & best service and would help our customers achieve the maximum value.
Customer’s satisfaction is the only benchmark to verify our works.
1. Q: Why choose us?
A: Fullstar has been mamufacturing customized inductors for more than 24 years.
2. Q: Do you have any certificates
A: We have CE, RoHS, CCC, CQC, ISO9001:2015 Certification.
3. Q: How about your products quality inspection?
A: We have professional QA and QC teams. 100% quality inspection is performed before shipment.
4. Q: Can you use our logo?
A: We accept OEM and ODM production.
5. Q: What’s your quality guarantee?
A: We repair or replace parts within 18months if necessary.
