50-60HZ Working Frequency PCB Mount Encapsulated Transformer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
PCB Mount Encapsulated Power Transformer Price
-
High Voltage Ignition Transformer Ozone Transformer For Ozone Generator
-
High Frequency Ferrite Core Electric Transformer Voltage Step Down Transformer For Power
-
12V 24V 230V High Voltage Coil Ignition Transformer For Ozone Generator Water Filters
-
Current Transformer Hall Current Module DC Current Sensor Hall Effect Transformer
-
EER ETD EC High Frequency Transformer Soft Magnetic Mn-Zn Ferrite Black Core
Product Description
Product Description

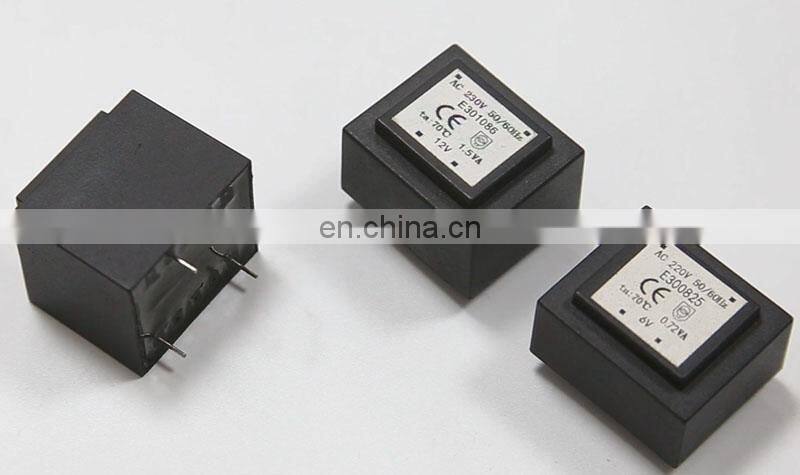

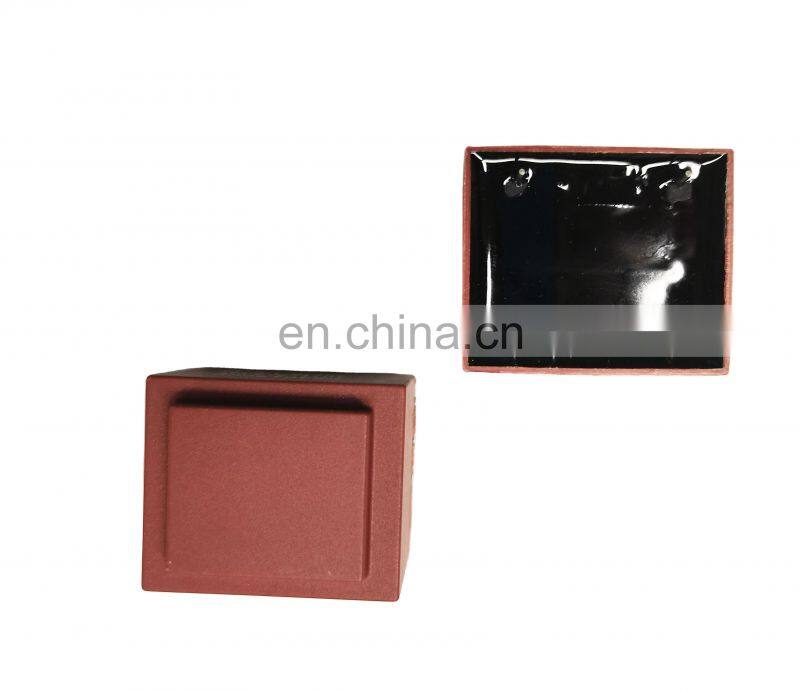

High Quality PCB Mount Encapsulated Transformer fr China
Various transformers used for switching power supplies,chargers,alarm systems,TV/CRT monitor displays, audio equipments, inverter products, Networking and Telecom communication systems.
Product name | High Quality PCB Mount Encapsulated Transformer fr China | ||||
Application | TV/CRT monitor displays | ||||
Material | core, wire, bobbin | ||||
Usage | High Frequency | ||||
Type | EI30 | ||||
Phase | Single | ||||
Inductance Range | Depends on the customer's request | ||||
Certification | ISO9001:2015 | ||||
Shape Types | Vertical;Horizontal;with/without base;shielded/unshielded ;SMD | ||||
MOQ | 1000pcs | ||||
Product features | 1 High frequency 2 Low magnetic leakage 3 Useful various power conversion and line filter application 4 Low radiation noise based on toroidal construction 5 Various material available to meet different frequency requirements 6 Special specifications available upon request 7 Primary competitive advantage: Country of region; small order accepted 8 Experienced technical staff ; Pass ISO ,RoHs,UL;Standard Packing | ||||
Packing & Delivery
Packing
In Cartons
Delivery
Samples -- in 5 working days
Mass production -- in 4~6 weeks
