Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > High Frequency 5.6K Watts Hi-pot 4KV Customized 30UH Planar Transformer

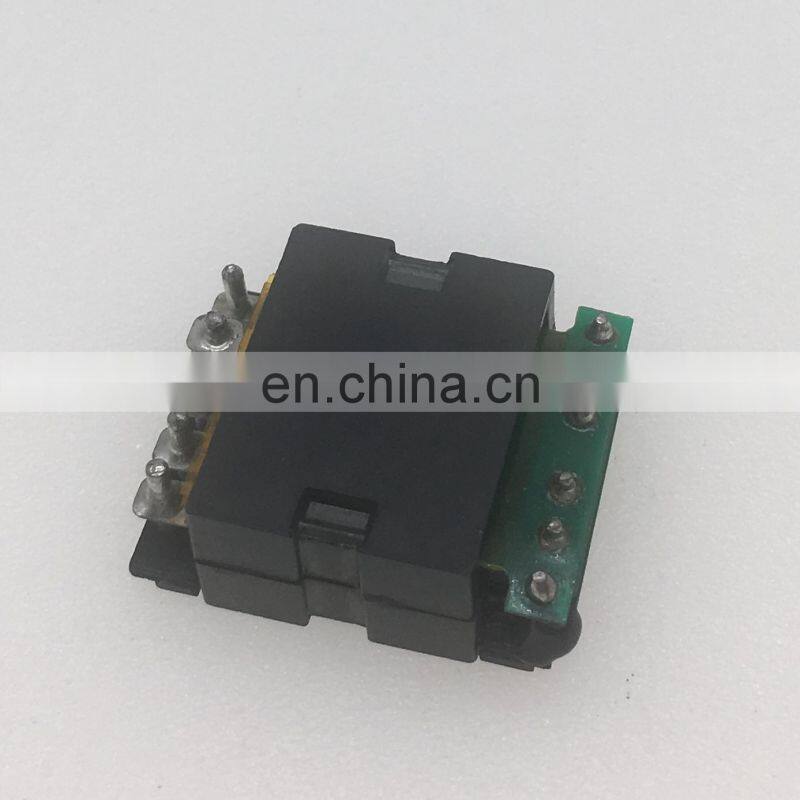

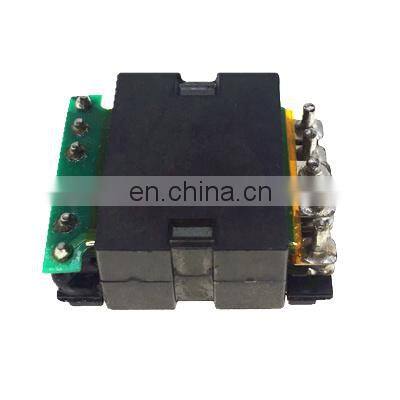

High Frequency 5.6K Watts Hi-pot 4KV Customized 30UH Planar Transformer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Voltage Transformer Ignition Coil TransformerNegotiableMOQ: 1 -
50-60HZ Working Frequency PCB Mount Encapsulated TransformerNegotiableMOQ: 1
-
PCB Mount Encapsulated Power Transformer PriceNegotiableMOQ: 1
-
High Voltage Ignition Transformer Ozone Transformer For Ozone GeneratorNegotiableMOQ: 1
-
High Frequency Ferrite Core Electric Transformer Voltage Step Down Transformer For PowerNegotiableMOQ: 1
Product Description
High Frequency 5.6K Watts Hi-pot 4kv Customized 30uH Planar Transformer
| ELECTRICAL SPECIFICATIONS | |||||||||||
| Part Number |
Primary1 Inductance (uH Min ) |
Leakage2 Inductance ( uH Max ) |
DC Resistance (mΩMax) | Turns Ratio | Pri/Sec Hi-Pot | Figure |
M. Height (mm) |
||||
| Primary | Secondary | ||||||||||
| A | B | AUX. | Primary | Secondary | |||||||

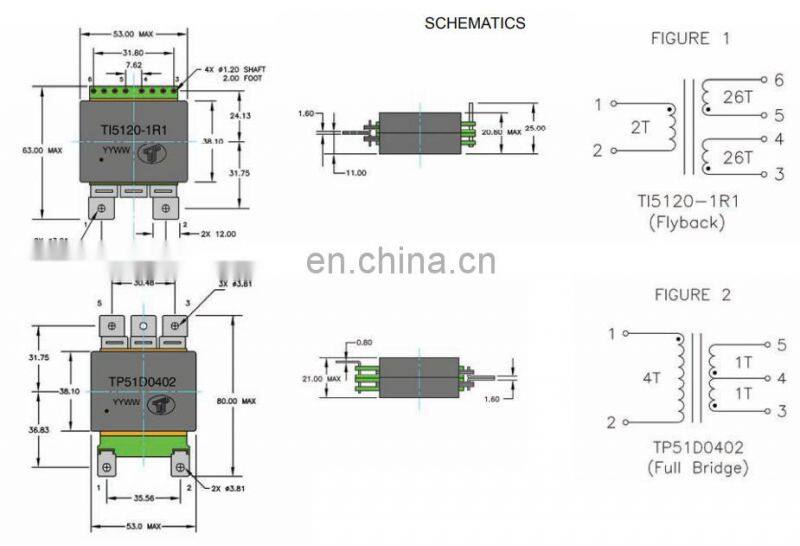

| TI5120-1R1 | 1.1±10% | 6 | 0.36 | 160/160 | 2T | 26T/26T | 1500Vdc | 1 | 21 | ||

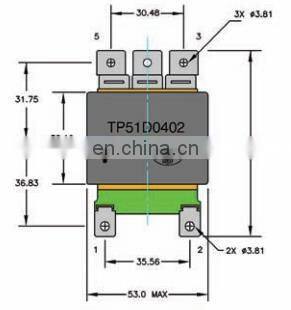

| TP51D0402 | 30 | 0.3 | 2 | 0.2 | 4T | 2T | 4000Vdc | 2 | |||

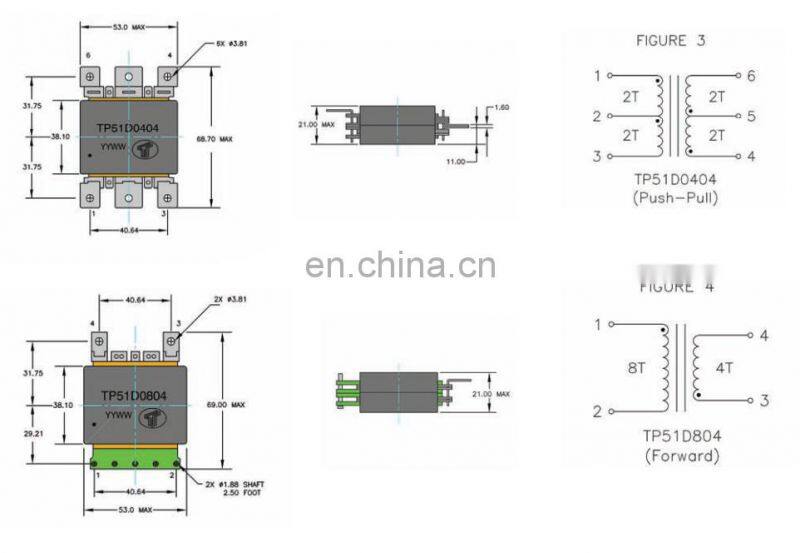

| TP51D0404 | 30 | 0.3 | 0.3 | 0.3 | 4T | 4T | 500Vdc | 3 | |||
| TP51D0804 | 460 | 0.4 | 6 | 8T | 4T | 4000Vdc | 4 | ||||

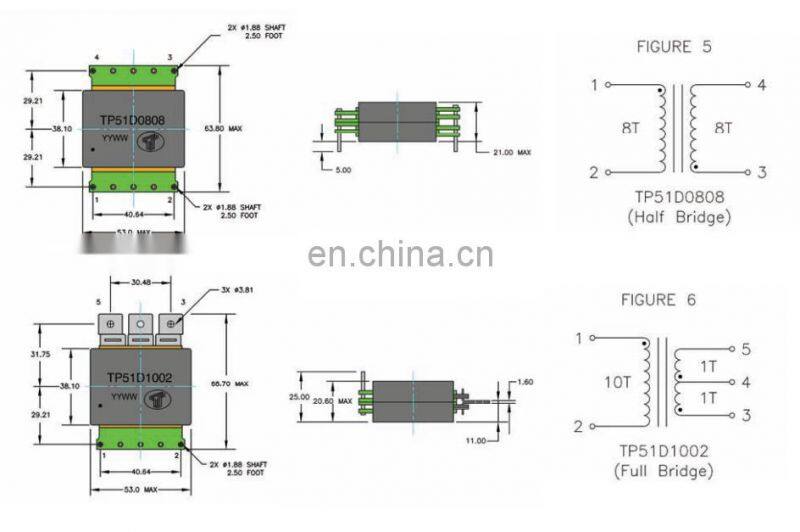

| TP51D0808 | 460 | 0.4 | 6 | 6 | 8T | 8T | 4000Vdc | 5 | |||
| TP51D1002 | 760 | 0.5 | 10 | 0.2 | 10T | 2T | 1500Vdc | 6 | |||

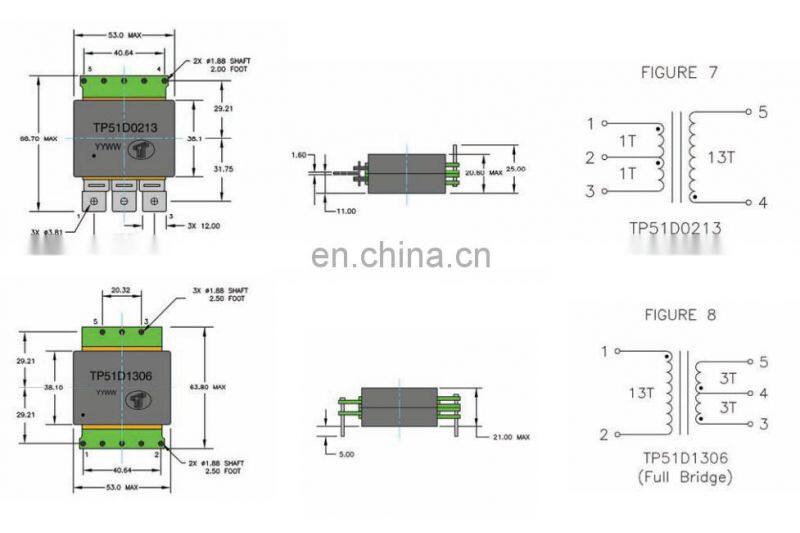

| TP51D0213 | 7 | 1 | 0.36 | 18 | 2T | 13T | 1500Vdc | 7 | |||
| TP51D1306 | 1200 | 0.6 | 25 | 2.3 | 13T | 6T | 1500Vdc | 8 | |||
Related Products
Company Information
Packaging & Shipping
Packing Details : The normal packing is use carton (size: L * W * H),according to the special requirements of the customer.
Delivery Details : 5-20 days
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How do you control the quality?
A:We control product quality by IQC, and 100% quality testing before packing and delivery. We had passed ISO9001 certificate repot.
