Home > Electrical & Electronics > Power Supply & Distribution > Power Distribution Cabinet & Box > JD194-BS4I Single Phase ac 4-20ma Output Current Transducer

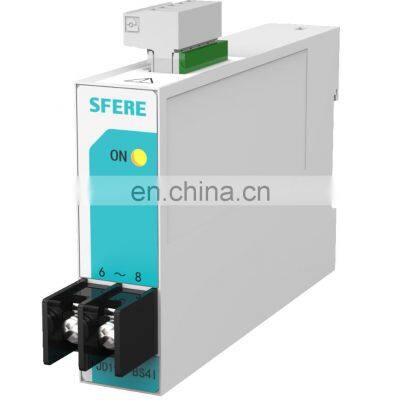

JD194-BS4I Single Phase ac 4-20ma Output Current Transducer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JD194-BS4U Electrical Measuring Analog Output Single Phase ac Voltage TransducerNegotiableMOQ: 1 -
JD194-BS4Q Sfere 3 Phase 3 Wire Reactive Power Transducer SensorNegotiableMOQ: 1
-
JD194-BS4Q Din Rail Transducor Rs485 AC 3phase Reactive Power Data Logger SensorsNegotiableMOQ: 1
-
JD194-BS4H7 3 Phase Digital ac Power Factor Transducer With ModbusNegotiableMOQ: 1
-
JD194-BS5I Electrical Measuring Single Phase Power Rs485 DC Current TransmitterNegotiableMOQ: 1
Product Description
Product Name: JD194-BS4I single phase ac 4-20ma output current transducer
Single-phase current, single-phase voltage transmitter mainly measures the current signal and voltage signal, and outputs 1 or 2 analog signals or outputs digital signals. The working power can be taken from the load.
Technical parameters
Accuracy |
0.5% |
|
Data update rate |
1s |
|
Input |
Current |
Rated value:AC 1A,5A |
Voltage |
Rated value:AC 100v,220v,400v etc |
|
Overload |
RL ≤350Ω |
|
Frequency |
45~65HZ |
|
Safe power supply |
Range |
AC 80~270V 50/60HZ ,DC 24V |
Consumption |
≤3.5VA |
|
Analog output |
0-20mA/4-20mA/0-5V |
|
Communcation |
RS485 port ,modbus-rtu ,2 wire ,up to 9600bps |
|
Operating Temperature |
-40~70℃ |
|
Storage Temperature |
-40~85℃ |
|
Relative Humidity |
≤93%RH |
|
Insulation |
≥2kVAC |
|
Altitude |
≤2500m |
Production Process
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
