GPRS Outdoor Alarm Controller S250,Three-Phase Power Line Protection,NC/NO/EOL Dry Contact,Remote Relay Output

>>>GPRS Outdoor Alarm Controller S250,Three-Phase Power Line Protection Mainframe X1
>>>GSM Antenna X1
>>>User Manual X1
>>>Resistors X8
>>>USB Cable x1

Remote Monitoring Your Outdoor Assets In Anywhere and Anytime!

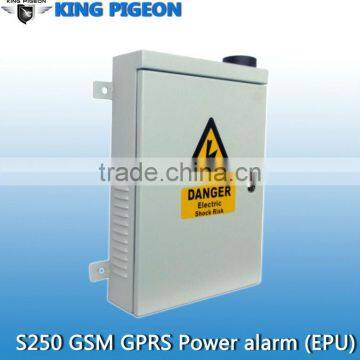

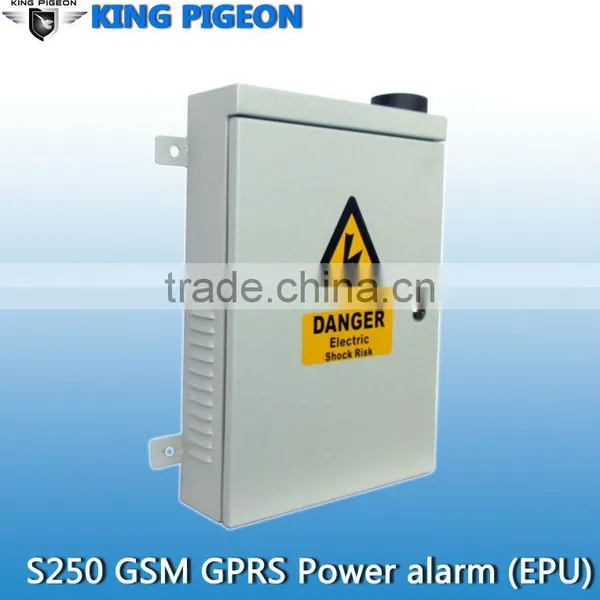

Name: GPRS Outdoor Alarm Controller S250,Three-Phase Power Line Protection,NC/NO/EOL Dry Contact,Remote Relay Output

Model: S250

The GSM GPRS Power Facility Alarm (GSM GPRS Outdoor Alarm Controller) S250 in-built industrial microprocessor inside, with waterproof and weatherproof enclosure, supports solar panel powered up. It provides 2 digital relay outputs (240VA,10A), 8 digital inputs (Dry contact, Lightning protection, Electrostatic protection, Over current protection), 3-Phase AC Power Opto isolated inputs to detect the Electricity A, B, C 3 phase status. It allows you to monitor and control an alarm or remote stations or equipments or machines by SMS (Short Message Service) Or GPRS. It is very suitable for outdoor security protection and Transformer anti theft requirements, Power Transmission Equipments Burglarproof applications as well as power cable anti-theft and so on. When any cable was cut or loss, or and detector activated, the panel will alert the owner immediately by SMS, or call, as well as to Web Based Monitoring Center. Also it will start the siren immediately. The system with intelligent design, it can distinguish the normally power off and cut cable power off. This is very useful for power device transmission devices.

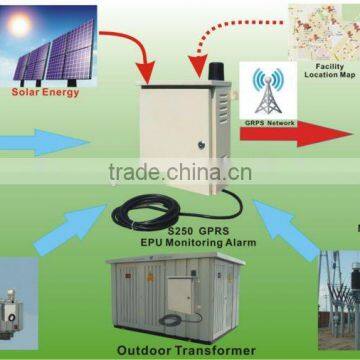

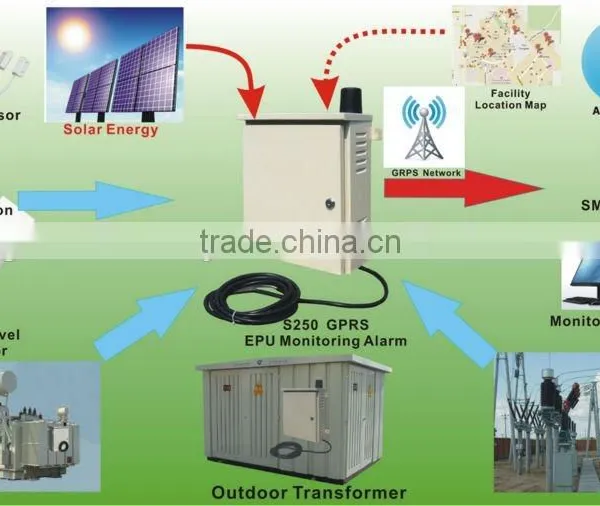

The Applications of GSM GPRS Power Facility Alarm (GSM GPRS Outdoor Alarm Controller) S250:

1.Electricity transformer and Cable anti-theft application;

2.Electrical Power Unit(EPU) Monitoring and Anti-theft applications;

3.Power Plant, transmission Substation, power towers;

4.Distribution Grid, transmission grid, power substation;

5.The switch tower and the main transformer;

6.Outdoor Security Alarm System applications;

7.Supervision and monitoring alarm systems;

8.Outdoor substations, e.g. Mobile tower, field substations and so on;

9.Outdoor Pumping Stations;

10.Transformer stations;

11.Control room application, etc. .

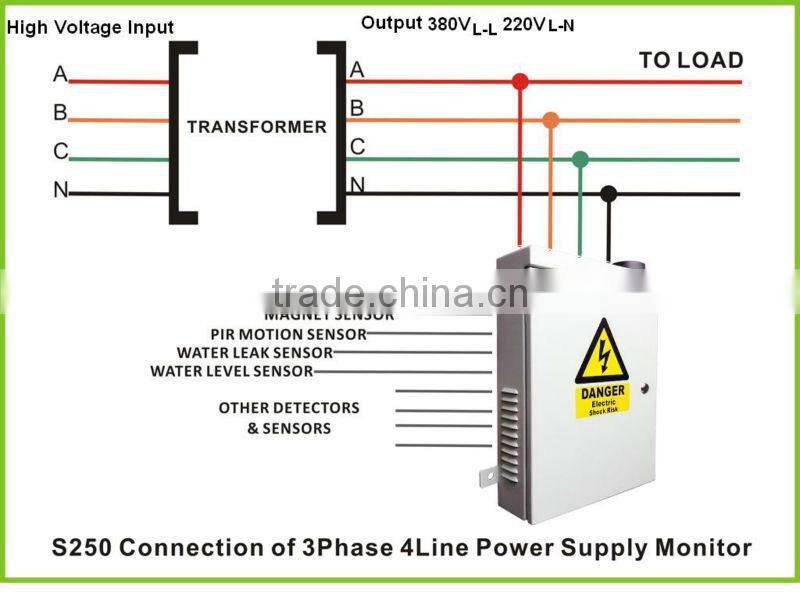

The Connection diagram between S250 and 3Phase 4Line Power Supply:

Functions & Features of the GSM GPRS Power Facility Alarm S250:

1.GSM/GPRS Data Transmission, no distance limitation;

2.Lighting protection design;

3.Weatherproof design, with temperature compensation function for high or low temperature,

waterproof for outdoor applications;

4.Programmable by USB Port or SMS Commands or GPRS from Web Based Monitoring Center;

5.Supports Arm or Disarm by SMS or Web Based Monitoring Center;

6.Power on by 220VAC from any phase of A,B,C;

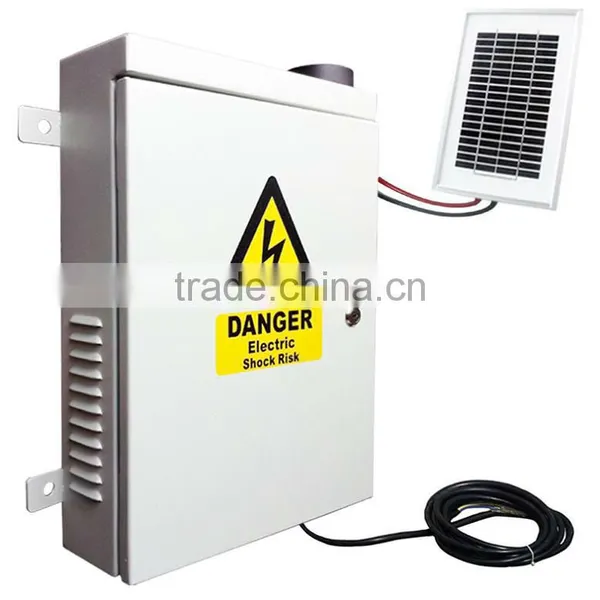

7.Supports Solar Panel powered on as well as includes internal rechargeable battery that can last 24hours,when battery with low voltage will alert user by SMS;

8.Supports 8 digital inputs(NC,NO) for sensors, also supports EOL mode to prevent cut sensor wires and sensor disconnection;

9.Supports 2 output relays(250V,10A), the output relay is programmable to different alarm source;

10.Can send to 6 SMS alarm numbers, distinguish which phase and with input occurrence alarm;

11.Supports two way voice communication;

12.Supports external siren, the siren working time is programmable from 0 to 10minutes;

13.Supports operation logs to distinguish who operated it at what time;

14.Supports automatically report to monitoring center and users from 0 to 240Hours;

15.Supports time stamp for events and operations;

16.Supports GSM interface and GSM Jammer alarm function;

17.Supports 1 Web Based Monitoring Center.

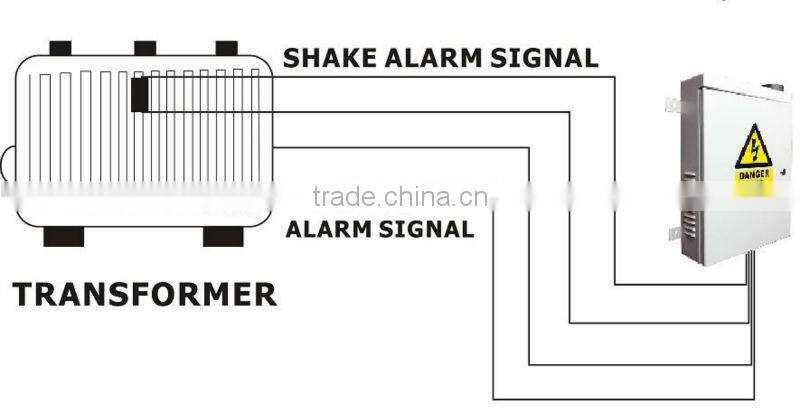

Outdoor Installation and Bind anti-theft of GSM GPRS Power Facility Alarm S250:

Standard Package list of the GSM GPRS Power Facility Alarm S250:

Mainframe X1

GSM Antenna X1

User Manual X1

Resistors X8

USB Cable x1

Specifications of the GSM GPRS Power Facility Alarm S250:

Rated Voltage: 110 to 220VAC,2A

Standby current: 5mA

Working temperature: Negative 35 to Positive 80 degree

Storage temperature: Negative 35 to Positive 80 degree

Digital input: 8 (Dry contact, NC,NO,EOL)

Digital Output Relay: 2 (10A,240VAC)

Solar Panel Input Voltage: 12V DC

Backup Battery: 3 X 1200mAH Rechargeable lithium battery

Standby time Approx.18hours (depending on the network condition)

Relative Humidity: 10 to 90%, No condensation

GSM Band: 850,900,1800,1900Mhz

GSM Emission Power: GSM850,EGSM900 Class4(2W)

DCS1800,PCS1900 Class1(1W)

GPRS Protocol: GSM,GPRS Phase2/2+

GPRS Data: GPRS CLASS12, CS 1,CS 2,CS 3,CS 4.

Size: 20mm*31mm*70mm (LXWXH)

Net Weight: 2.50Kg
