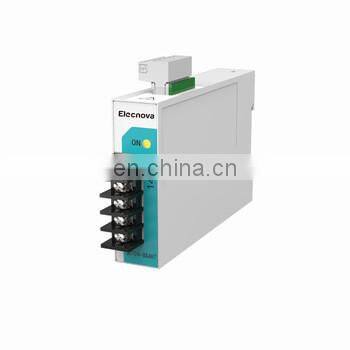

Product Name: JD194-BS4H7 3 phase digital ac power factor transducer with modbus
The integrated power transducer is designed to meet the needs of power system, industrial and mining enterprises, public facilities, intelligent buildings, etc. It can measure the common power parameters in three-phase power grid with high precision, and has the expanded functions of communication interface and analog output.
Accuracy |
0.5%(default),0.2% |
||
Data update rate |
1s |
||
Current |
Rated value:AC 1A,5A |
||
Voltage |
Rated value:AC 100V,220V,400V etc |
||
Overload |
Continuous:2 times of rated value |
||
Frequency |
45~65Hz |
||
Range |
AC 80~270V 50/60Hz,DC 100~350V |
||
Consumption |
≤5VA |
||
Digital Input |
2 dry contact inputs,Isolation:2kVAC |
||
Relay Output |
2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC
|
||
Analog Output |
dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ |
||
Communication Port |
RS485,Modbus-RTU,2-WIRE,up tp 9600bps |
||
Degree of Protection |
Front:IP64,Rear :IP20 |
||
Operating Temperature |
-40℃~70℃(LED),-25℃~70℃(LCD) |
||
Storage Temperature |
-45℃~85℃(LED),-30℃~80℃(LCD) |
||
Relative Humidity |
≤93%RH |
||
Insulation |
≥2kVAC |
||
Altitude |
≤2500m |
||
JD194-BS4H7 can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.
SMT AOI Test Plug-In Mounting
Wave Soldering Assembling Inspection
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
