JD194-BS4Q Sfere 3 Phase 3 Wire Reactive Power Transducer Sensor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JD194-BS4Q Din Rail Transducor Rs485 AC 3phase Reactive Power Data Logger SensorsNegotiableMOQ: 1 -
JD194-BS4H7 3 Phase Digital ac Power Factor Transducer With ModbusNegotiableMOQ: 1
-
JD194-BS5I Electrical Measuring Single Phase Power Rs485 DC Current TransmitterNegotiableMOQ: 1
-
JD194-BS4I Din Rail Electrical Measuring Single Phase Power Rs485 Current TransmitterNegotiableMOQ: 1
-
JD194-BS4U Din Rail Electrical Measuring Single Phase Power Rs485 Voltage TransmitterNegotiableMOQ: 1
Product Description

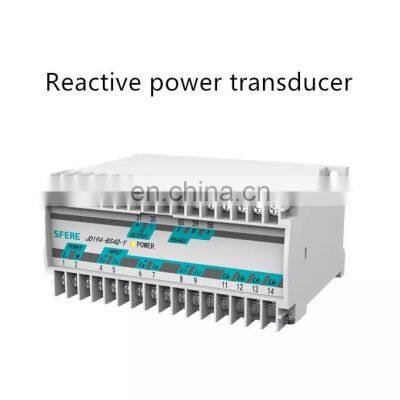

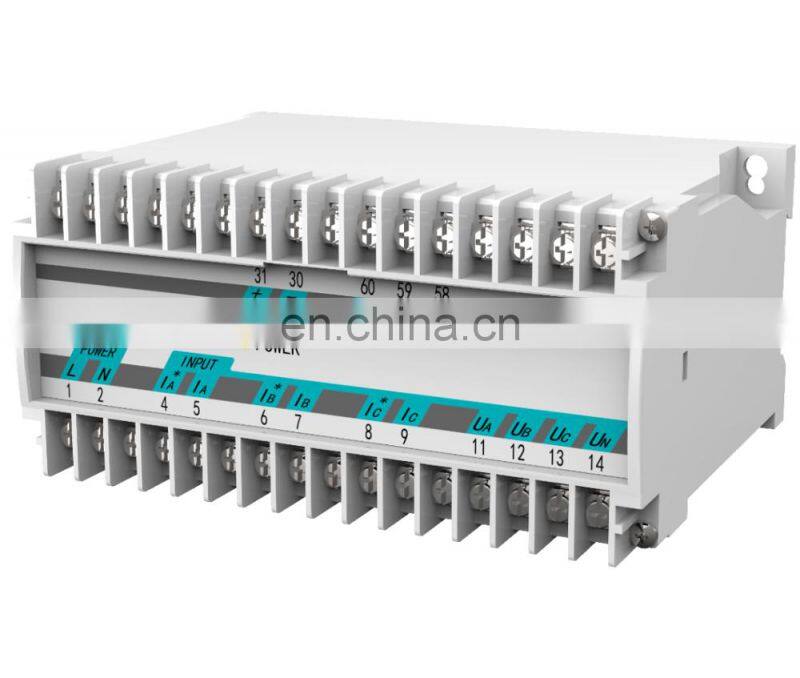

Product Name: JD194-BS4Q sfere 3 phase 3 wire reactive power transducer sensor
JD194-BS4Q is a kind of device to convert the measured parameters such as current, voltage, power, frequency and power factor to DC current, DC voltage and isolate the output analog signal or digital signals. The transmitters accord with the national standard GB/T 13850 – 1998.
Technical parameters
Wiring |
3P3W |
Accuracy |
0.2, 0.5(defaulted) |
Rated current value |
1A, 5A |
Overload |
Continuous:1.2In, Instantaneous:10In/5s |
Rated voltage value |
100V,220V,380V |
Overload |
Continuous:1.2In, Instantaneous:2Un/1min |
Transmitting output |
0-10V/4-12-20mA/4-20mA |
Max. output |
12V/24mA |
Frequency |
45~65Hz |
Power supply working range |
AC/DC 80~270V ,DC19~50V |
Power consumption |
≤5VA |
Response time |
≤400ms |
Advantage
*Wide range of working temperature range
*EMC better than III level
*Small size and din-rail mounted
*High accuracy(0.5, 0.2)
*RS485 communication interface,
*Small size and din-rail mounted
*High accuracy(0.5, 0.2)
*RS485 communication interface,
Modbus-RTU protocol
Production Process

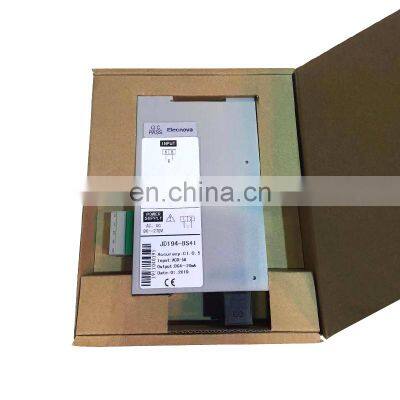

Packing & Delivery
