JD194-BS4U electrical measuring analog output single phase ac voltage transducer
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
JD194-BS4Q sfere 3 phase 3 wire reactive power transducer sensor
-
Sfere720 power line quality and energy analyzer multifunctional ac data logger power cos meter
-
Sfere720 Series Energy Management Modular Design Multifunctional Kwh Data Logger Three Phase Digital Only CE, ISO9001 3.5\" TFT
-
Sfere720 power quality meter analyzer energy multifunctional data logger
-
Sfere720C solar panel meter solar power system
-
Sfere720 solar power system solar charge controller data logger
Product Description
Product Description

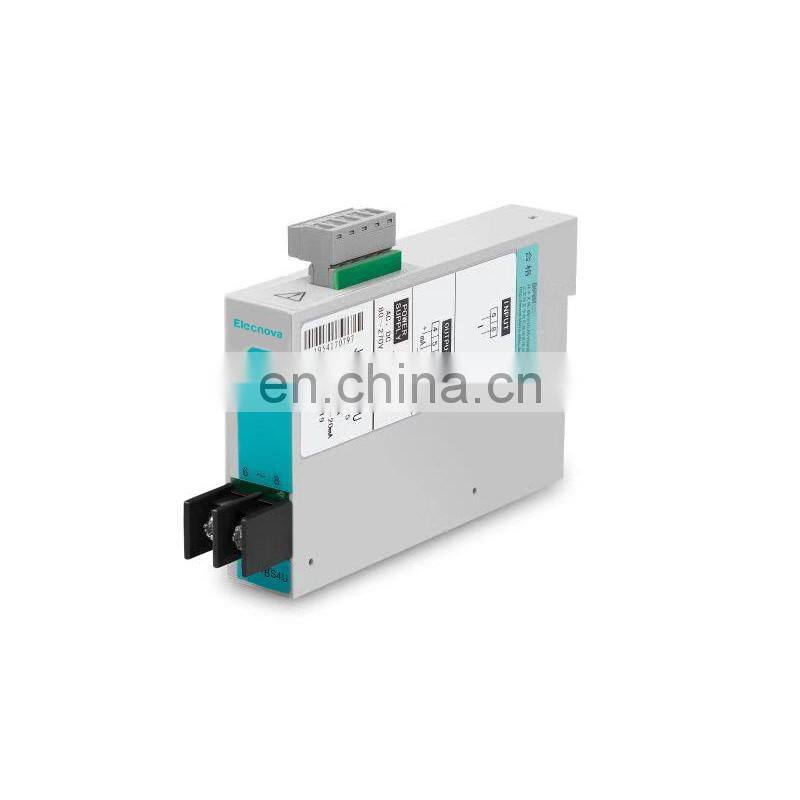

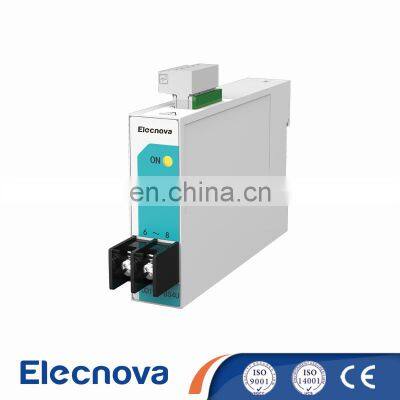

Product Name: JD194-BS4U electrical measuring analog output single phase ac voltage transducer
Single-phase current, single-phase voltage transmitter mainly measures the current signal and voltage signal, and outputs 1 or 2 analog signals or outputs digital signals. The working power can be taken from the load.
Technical parameters
Accuracy | 0.5% | |
Data update rate | 1s | |
Input | Current | Rated value:AC 1A,5A |
Voltage | Rated value: AC 100V,220V,380V etc | |
Overload | RL ≤350Ω | |
Frequency | 45~65HZ | |
Safe power supply | Range | AC 80~270V 50/60HZ ,DC 24V |
Consumption | ≤3.5VA | |
Analog output | 0-20mA/4-20mA/0-5V | |
Communcation | RS485 port ,modbus-rtu ,2 wire ,up to 9600bps | |
Operating Temperature | -40~70℃ | |
Storage Temperature | -40~85℃ | |
Relative Humidity | ≤93%RH | |
Insulation | ≥2kVAC | |
Altitude | ≤2500m |
Related Products
Production Process
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
