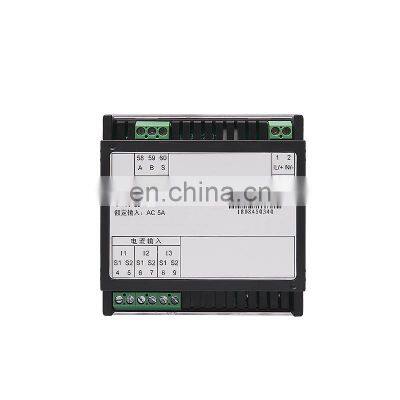

LNF26 LCD Display RS485 Communication 3 Phase Panel Smart Energy Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
S3U96 96x96mm Panel Mounted AC 3 Phase Digital Voltage MeterNegotiableMOQ: 1 -
Solar Energy System Multifunctional High Accuracy DC Volt/current Energy MeterNegotiableMOQ: 1
-
LNF56 Smart Panel Mounted Real-time Measurement RTM Energy MeterNegotiableMOQ: 1
-
LNF66 RS485 Communication Embedded Multifunction Smart Energy MeterNegotiableMOQ: 1
-
LNF31 72*72mm Digital Single Phase Panel Mounted Energy MeterNegotiableMOQ: 1
Product Description
Product Name: LNF26 LCD display RS485 communication 3 phase panel smart energy meter
This series of digital display AC electrical measurement meters are applied for voltage and current measurement in power distribution system.They support programmable transformation ratio and can be equipped with communcation interface. They are featured with good appearance and compact structure.
Technical Parameter
Accuracy |
0.5% |
|
Data update rate |
1s |
|
Signal Input |
Rated current |
AC 1A,5A |
Rated voltage |
AC 100V,380V |
|
Overload |
Continuous:2In,instantaneous:10In/5sContinuous:1.2Un,instantaneous:2Un/1min |
|
Energy consumption |
≤0.1VA |
|
Fequency |
45~65HZ |
|
Communication |
RS485 interface |
Modbus-RTU protocol, baud rate up to 9600bps |
Energy pulse |
Optocoupler isolation ,pulse width 80ms±20% |
|
Digital Input |
Optocoupler isolation ,passive dry contact |
|
Relay Output |
Contact capacity AC250V 5A or DC 30V 5A |
|
Auxiliary power supply |
Working range |
AC/DC 80~270V |
Energy consumption |
≤3VA |
|
Environment condition |
Working temperature |
-10~55℃ |
Storage temperature |
-25~70℃ |
|
Relative humidity |
≤93%RH |
|
Altitude |
≤2500m |
|
Safety |
Insulation |
Signal power supply output terminal to case resistance ≥100MΩ |
Withstand voltage |
Power supply，input and output ≥2kv |
|
Protection level |
IP54 |
Module selection
LNF31 |
LNF33 |
LNF32 |
LNF36 |
|||||
Dimension(mm) |
72x72x44.5 |
72x72x44.5 |
96x96x34 |
96x96x34 |
||||
Real-time measurement |
single-phase current |
three-phase current |
single-phase current |
three-phase current |
||||
LCD display |
■ |
■ |
■ |
■ |
||||
RS485 |
□ |
□ |
□ |
□ |
||||
Note：“■”Yes，“□”Optional |
||||||||
Application
■ Data Acquisition
■Limit Value Monitoring
■Measured Value Transducer
■AC current measurement
■Panel Meter
■Limit Value Monitoring
■Measured Value Transducer
■AC current measurement
■Panel Meter
Production Process
SMT AOI Test Plug-In Mounting
Wave Soldering Assembling Inspection
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
