Solar Energy System Multifunctional High Accuracy DC Volt/current Energy Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LNF56 Smart Panel Mounted Real-time Measurement RTM Energy MeterNegotiableMOQ: 1 -
LNF66 RS485 Communication Embedded Multifunction Smart Energy MeterNegotiableMOQ: 1
-
LNF31 72*72mm Digital Single Phase Panel Mounted Energy MeterNegotiableMOQ: 1
-
LNF32 Ultra-thin Single Phase RTM Real-time Measurement Smart Energy MeterNegotiableMOQ: 1
-
LNF33 Three Phase Current Panel Mounted Smart Energy MeterNegotiableMOQ: 1
Product Description
Product Name: Solar energy system multifunctional high accuarcy DC volt/current energy meter

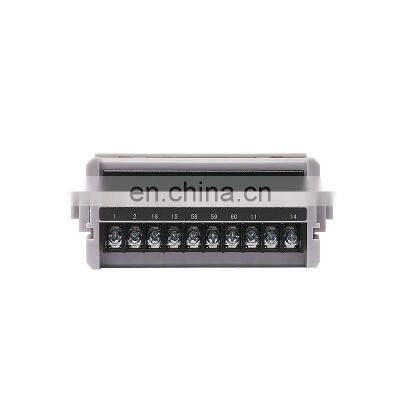

PD195E-5SY1 DC multi-function power meter can be widely used in DC working conditions. It can measure DC voltage, current, power, electric energy and other parameters. It can be used for continuous monitoring and control of DC system. Support switch state quantity monitoring, the same can be controlled remotely through the relay.
Technical parameters
Aaccuracy |
0.5% |
||
Date Update Rate |
1s |
||
Input |
Current |
DC ±4V、10A、75mV |
|
Voltage |
DC 1000V、1500V |
||
Overload |
Continuous:1.2 times of rated value |
||
Frequency |
45~65Hz |
||
Auxiliary power |
Range |
AC、DC (80-270)V |
|
Consumption |
≤5VA |
||
Digital Input |
Dry contact inputs,Isolation:2kVAC |
||
Relay Output |
Contact capacity (resistive) AC 5A/250V、DC 5A/30V
|
||
Analog Output |
DC 4~20mA, DC 0-20mA, load ≤350Ω DC 0~5V, DC 1-5V, load≥20kΩ
|
||
Communication Port |
RS485,Modbus-RTU,2-WIRE,up tp 9600bps |
||
Degree of Protection |
Front:IP64,Rear :IP20 |
||
Operating Temperature |
-10℃~55℃ |
||
Storage Temperature |
-25℃~70℃ |
||
Relative Humidity |
≤93%RH |
||
Insulation |
≥AC 2kV |
||
Altitude |
≤2500m |
||
Application
■ Programmable
■ Wide range of working temperature
■ High protection level
■ High DC voltage input
■ Panel Meter
■ DC parameter measuring
