Active Filter Power Quality Improvement Module Harmonic Reducer Reactor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
WDH-31-580 Exhasust Fan Measuring Module Monitoring Controlling Motor Protection
-
WDH-31-500 380V ac Protection Circuit Breaker/thermal Switch Motor Protection
-
Water Supply Water Treatment Industrial Control Full Protection Water Pump Motor Protection
-
WDH-31-500 380V ac Protection Circuit Breaker/thermal Switch Stepper Motor Controller
-
WDH-31-500 Modbus Interface Overload Protection Stepper Motor Controller
-
Elecnova Industrial Automation Intelligent Motor Controller Siemens Automation
Product Description
Product Description

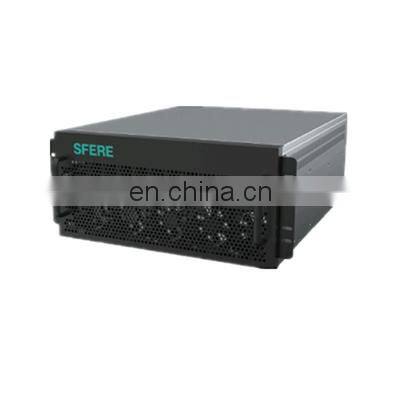

Product name: Active filter power quality improvement module harmonic reducer reactor

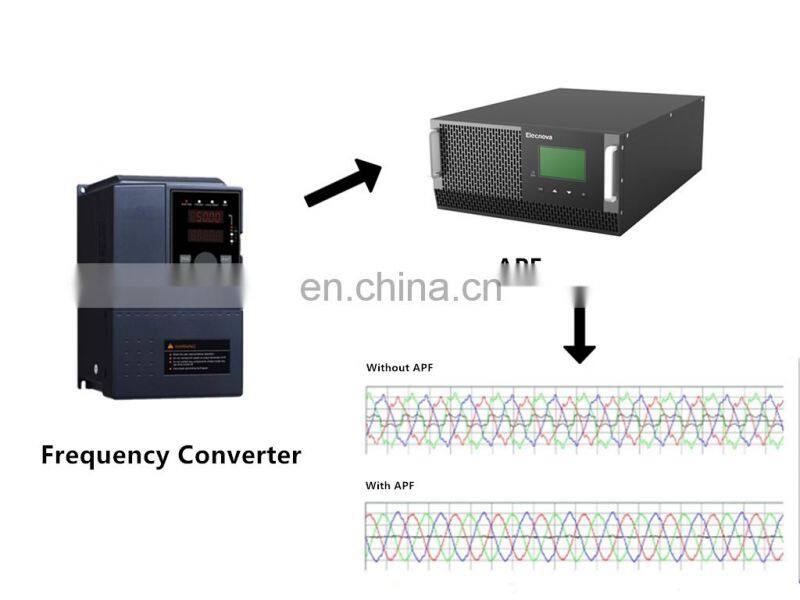

Active power filter is a new type of electronic device for dynamic filtering of harmonic wave and reactive power compensation. It can conduct real-time filtering and compensation to harmonic wave (both size and frequency are changed) and dynamic reactive power, and is used to overcome disadvantages of traditional harmonic suppression and reactive compensation methods of traditional filters,thus realizing systematic harmonic filtering function and reactive power compensation function. In addition, it is widely applied into power,metallurgy. petroleum, port, chemical and industrial and mining enterprises.
Product Paramenters

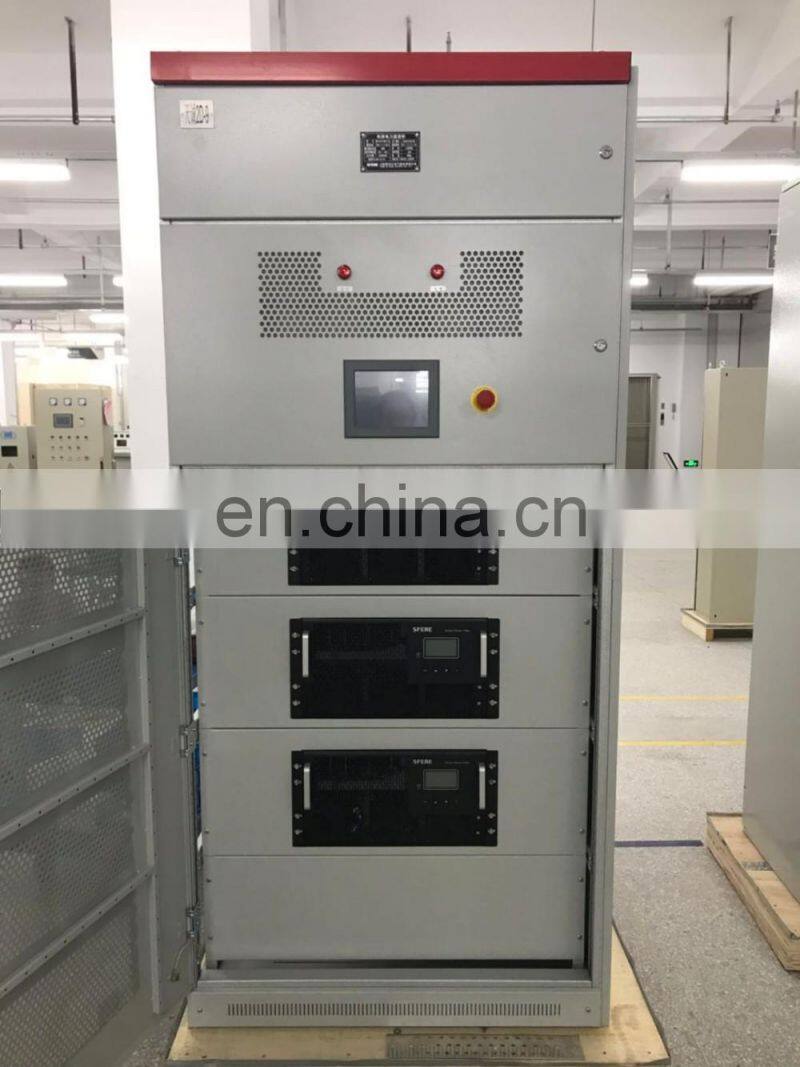

Product Specification | Rack Type Module | Wall-mounting type | Full cabinet type | ||
Power grid voltage | 400/690V（-40%~+20%） | ||||
Power gird frequency | 50/60±hz | ||||
Wiring pattern | Three-phase three-wire，Three-phase four-wire | ||||
Capacity | 25A 50A 75A 100A 50A 75A 100A 25~400A | ||||
Harmonic order | 2-50 times of harmonic compensation ,eliminating all harmonic waves or harmonic waves of selected number of times | ||||
Setting of harmonic degree | It is allowed to set independently to each time of harmonic wave | ||||
Haimonic compensation efficiency | ≥97% | ||||
Full response time | ≤5ms | ||||
Compensation mode | Harmonic compensation ,reactive compensation and three-phase unbalance compensation | ||||
Parallel running capability | Supporting parallel connection of at most 10 modules | ||||
Active power loss | ＜3% rated output capacity of equipment | ||||
Display function (user interface) | 3in LCD,display real-time data of module,waveform curve ,parameter setting ,record inquiry and manufacturing information | Inquiry system of 7in LCD touch screen (optional),real-time data of parallel connection module ,waveform curve ,parameter setting,record inquiry and manufacturing information | |||
Protection mode | automatic current limit protection for power grid over-voltage and under-voltage ,power grid over-frequency and under-ferquency,inverted sequence of input voltage ,over-current ,over-heating and over-load ,and busbar short-circuit | ||||
Cooling mode | Forced air cooling | ||||
Noise | ≤65dB | ||||
Protection grade | IP20 (higher protection garde can be customized) | ||||
Communication | Remote RS485/RS232/Etherent communication function (optional) | ||||
Model Selection
Transformer Capacity(kVA) | Capacity and Quantity of Active Power Filter(Three-phase Four-wire) | Capacity and Quantity of Active Power Filter(Three-phase Three-wire) |
200 | SFR-APF4-50/0.4 | SFR-APF3-50/0.4 |
250/315 | SFR-APF4-50/0.4 | SFR-APF3-75/0.4 |
400 | SFR-APF4-75/0.4 | SFR-APF3-75/0.4 |
500/630 | SFR-APF4-75/0.4 | SFR-APF3-100/0.4 |
800 | SFR-APF4-100/0.4 | SFR-APF3-150/0.4 |
1000 | SFR-APF4-100/0.4 | SFR-APF3-200/0.4 |
1250 | SFR-APF4-150/0.4 | SFR-APF3-250/0.4 |
1600 | SFR-APF4-200/0.4 | SFR-APF3-300/0.4 |
2000 | SFR-APF4-200/0.4 | SFR-APF3-400/0.4 |
2500 | SFR-APF4-300/0.4 | SFR-APF3-250/0.4 x 2 |

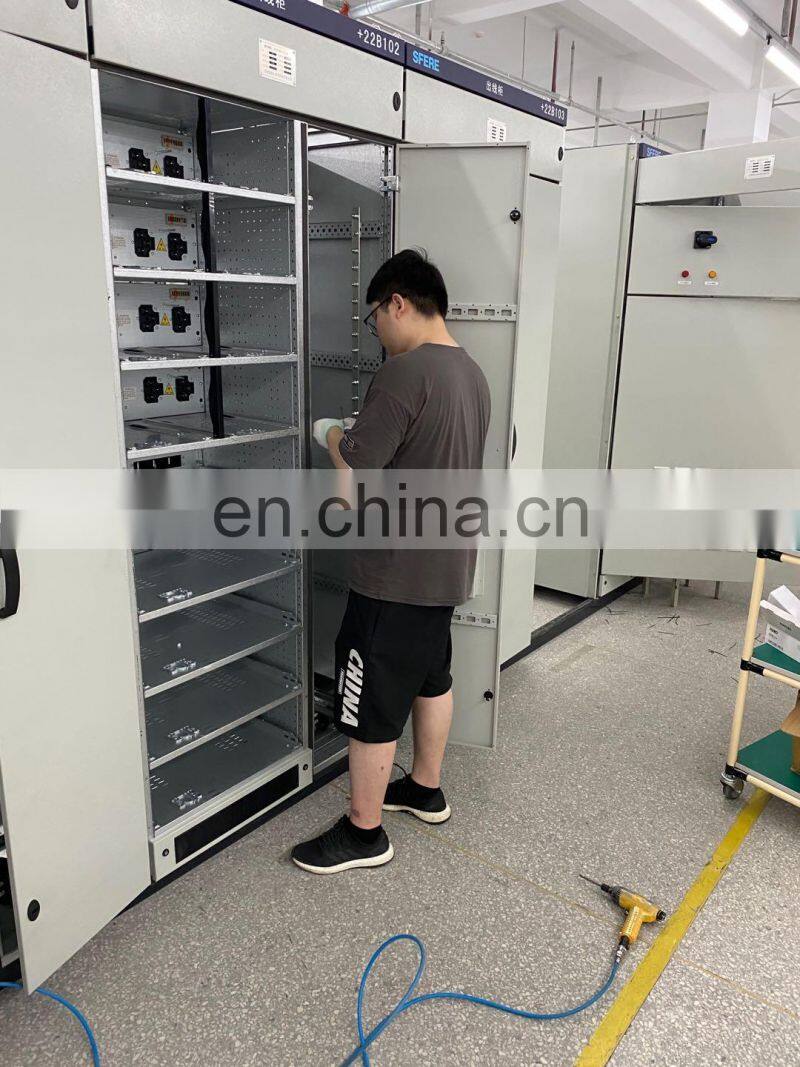

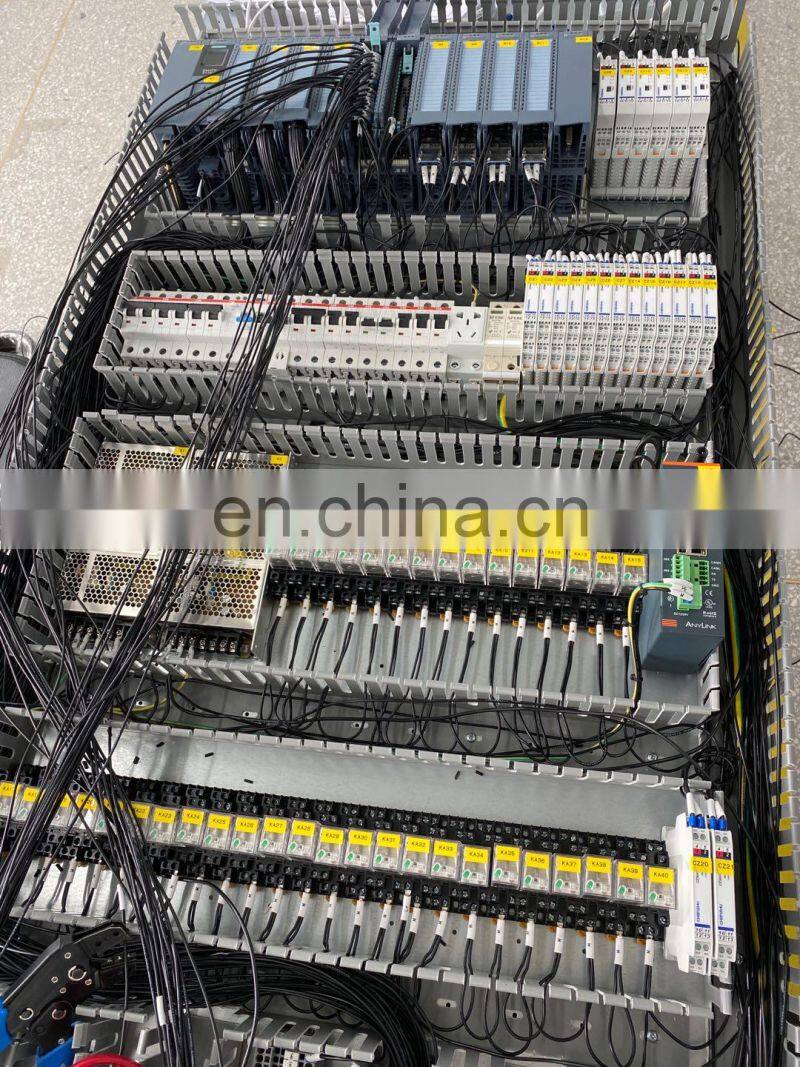

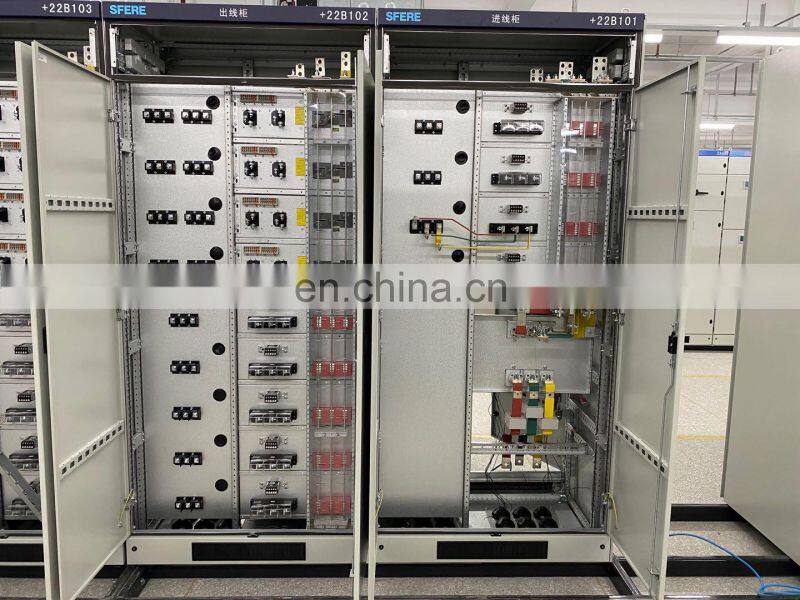

Panel Assembly
Recommend Products

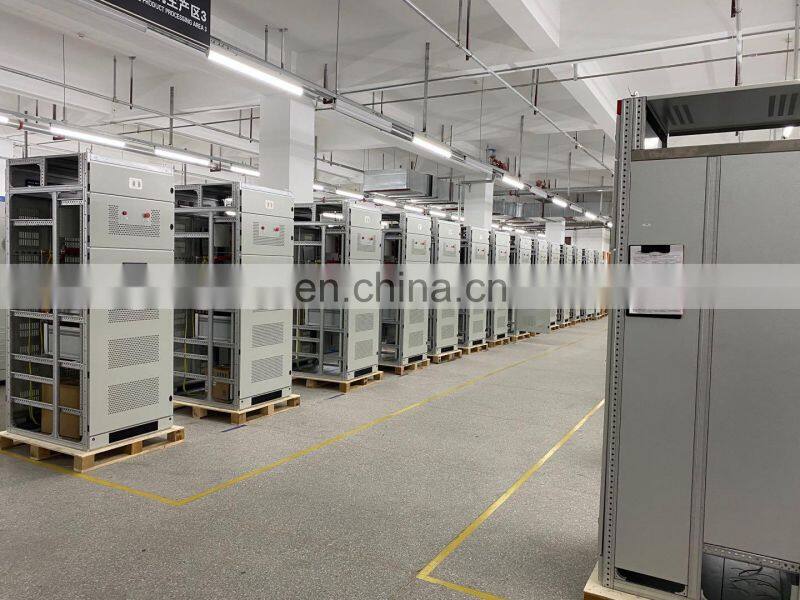

Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 2-4 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide free sample for 1pcs/item, but the customers should take over the freight.
Q: What is your terms of payment ?
A: Small online orders were 100% before delivery, order amount more than $3000, 30% in advance 70% before delivery.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 2-4 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide free sample for 1pcs/item, but the customers should take over the freight.
Q: What is your terms of payment ?
A: Small online orders were 100% before delivery, order amount more than $3000, 30% in advance 70% before delivery.
