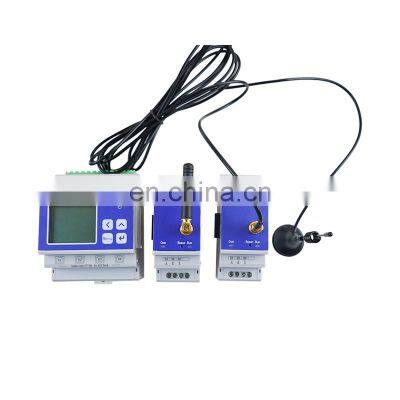

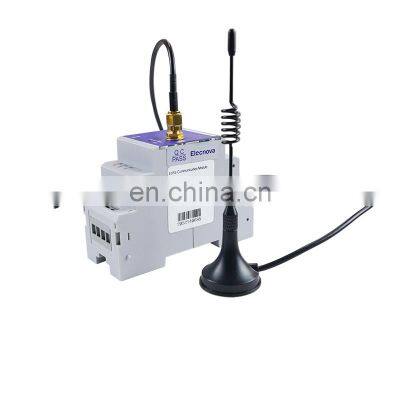

Din Rail Mounted Rs485 Interface Power Meter Lora Wireless Transmission Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PD194Z-E14D Din Rail Mounted Lora Wireless Transmission Energy MeterNegotiableMOQ: 1 -
S15 Nb-iot Gateway Wireless Communication Module Iot Device Wireless Transmission, Industrial CE CCC No Corrosive Gas IP20NegotiableMOQ: 1
-
Wireless Transmission rs 485 Communication Industrial Nb-iot ModuleNegotiableMOQ: 1
-
Wireless Data Transmission Communication GPRS Iot Equipment ModuleNegotiableMOQ: 1
-
GPRS Wireless Transmission Module Iot Equipment Wireless Data TerminalNegotiableMOQ: 1
Product Description
Product Name: din rail mounted rs485 interface power meter lora wireless transmission module
EC2 as PD1946-E series of supporting modules, mainly to achieve lora and slot channel transmission function, through the external RS485 can set the parameters of the lora and slot serial port, IAP program upgrade, state monitoring.Can configure the frequency band and channel through the upper computer, and can also configure the parameters such as lora frequency, spread spectrum factor, bandwidth and coding rate manually.
Advantage
■ Power supply：from meter
■ Launch frequency：100MW
■ Communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters
Data flow
Product Paramenters
Working environment conditions | ||
Working temperature | -40°C -- 70°C | |
Storage temperature | -40°C -- 85°C | |
Relative humidity | ≤95%RH，without condensation | |
Working altitude | ≤2500m | |
Antifouling level | No corrosive gas | |
Protection class | IP20 | |
Insulation | Signal, power, output terminal to case resistance> 100MΩ | |
Pressure resistance | Input and power ≥2kV, input and output ≥2kV, power and output ≥2kV | |
Communication interface | ||
Physical interface | RS-485 | |
Communication rate | Max communication rate 115200bps （default 9600bps） | |
Communication protocols | Modbus-RTU | |
Isolation voltage | ||
Isolation voltage | ||
Dimensions and wiring diagrams
