MFJ12-54YC Rexroth hydraulic Solenoid Valves Solenoid coil with good quality

Operating Notice

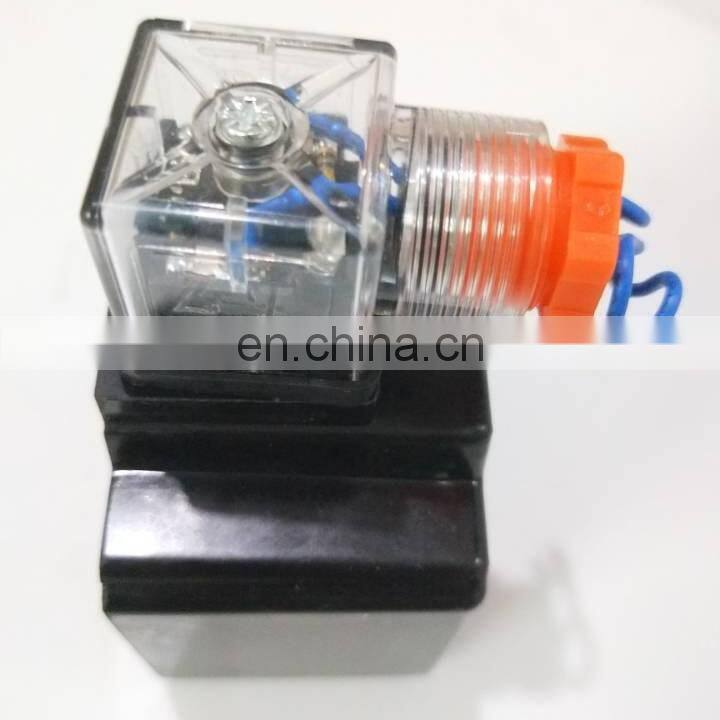

1. The solenoid includes two specifications, i.e. transparent and opaque. You can choose on the basis of your requirement.
2. In case of burning the solenoid and the electrical control component in improper conditions, the over-current protection device should be set up between the electrical control system and solenoid.
3. The manual handspike of the solenoid is used manually in the situations of adjustment or emergency. However, when the backpressure of system is higher, please use cross screwdriver to push it, instead of striking. The wallop can destroy the manual handspike and the surface of leading hole, resulting in oil leak or cannot reposition.
4. The working medium of hydraulic system is mineral oil ,phosphoric acid oil .
5. The vent bolt should be set upwards while installing .Making sure that the air exhausted from solenoid.
6. The solenoid fits for continuous duty.
