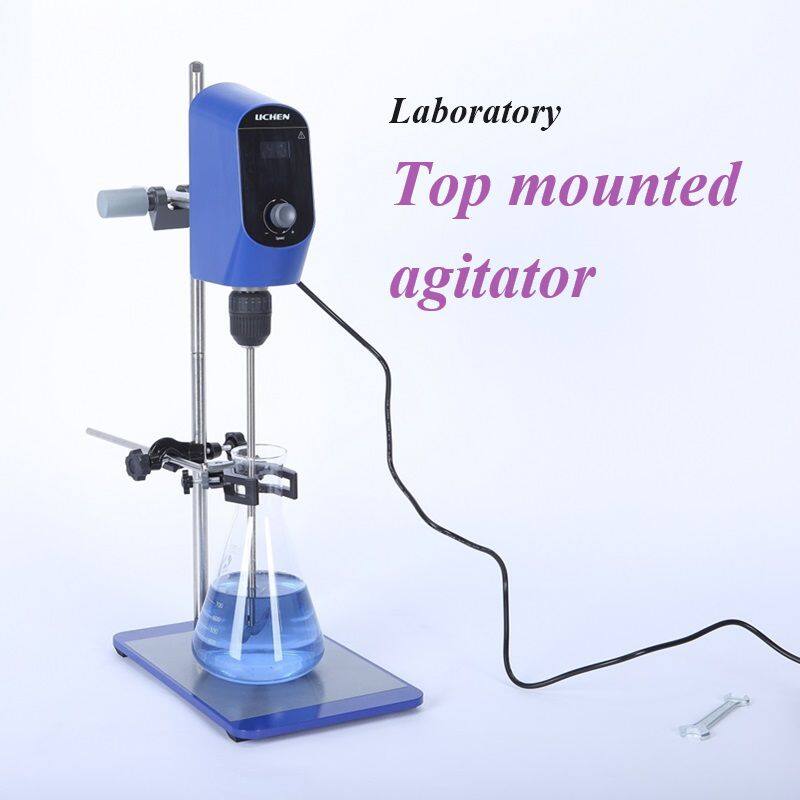

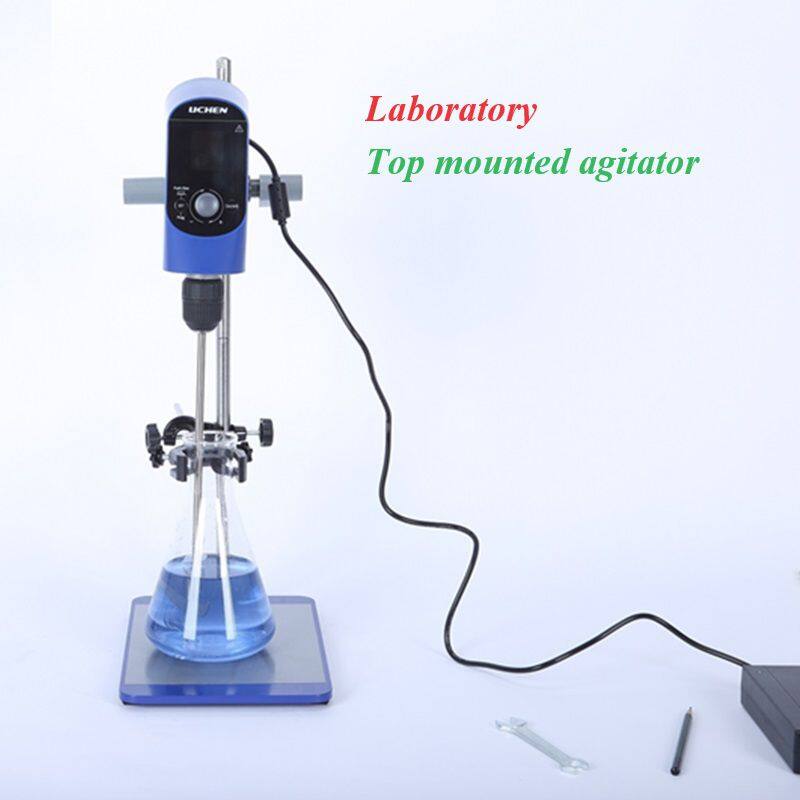

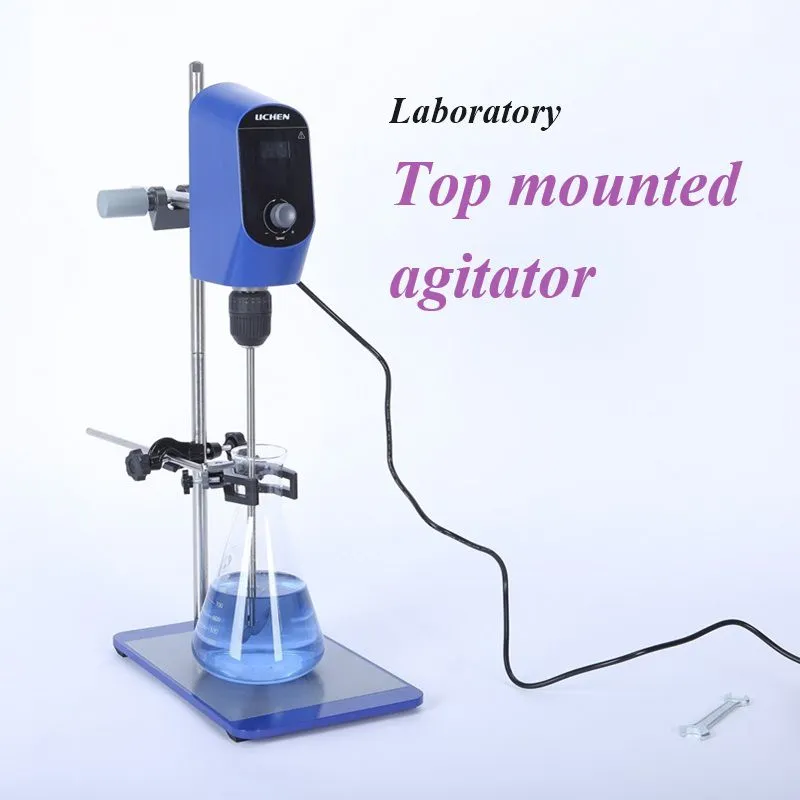

Product Name: OES electric mixer
Product model: lc-oes-60
Input power V: ac100-240
Power frequency Hz: 50-60
Overall power W: 72
Speed range rpm: 100-2000
Speed control accuracy: ± 5%
Maximum mixing volume (H Ω o) l: 20
Recommended mixing volume (H Ω o) l: 5
Maximum viscosity of stirring MPa. S: 10000
Lifting stroke mm: 300-600
Motor type: DC permanent magnet motor
Timing function: None
Net weight kg: 7.5
Overall dimension (w * D * h) mm: 315 * 200 * 610
Working principle: This equipment directly displays the rotating speed of the rotating shaft. It can adapt to different test needs in the laboratory, and can directly calculate the relationship between stirring, dispersion, linear speed and chemical reaction rate according to the displayed rotating shaft speed, so as to provide correct process data for large-scale production. Under the high-speed drive of the motor, the mixing head of the machine generates the rotating tangential high-speed speed. Under the action of huge centrifugal force, the materials produce strong hydraulic shear and high-frequency mechanical effects, so that the fluid materials can bear thousands of shear and high-frequency mechanical effects per minute, so as to achieve the effect of efficient mixing, dispersion and.
Application: suitable for mixing water and various agents and stirring in reaction process.
Application: mainly used in chemical synthesis, biology, physical and chemical analysis, cosmetics, health products, food, reagents and other experimental fields.
Product features:

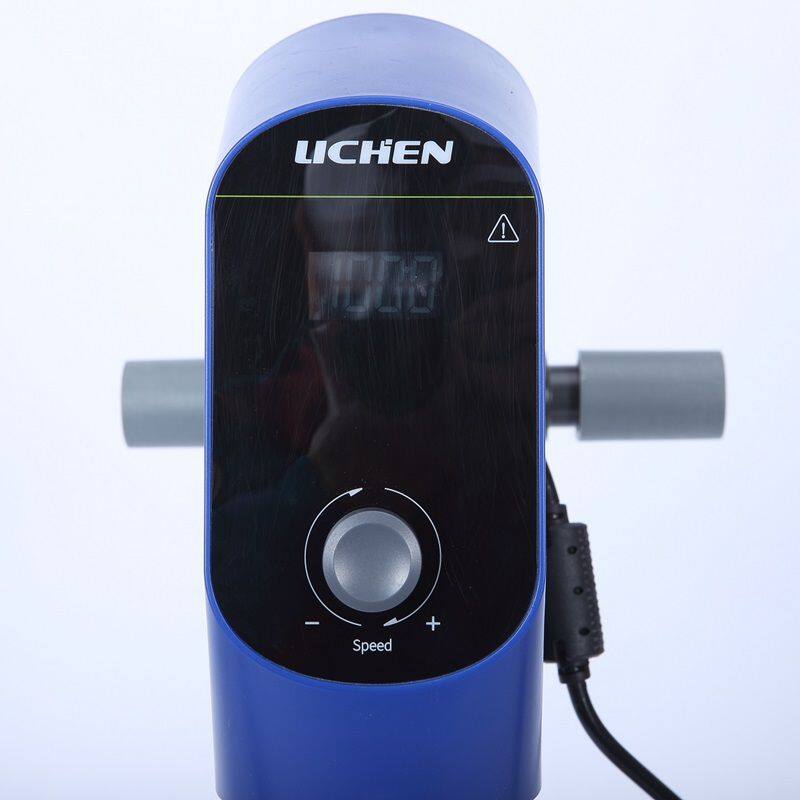

1. LCD displays the set speed and actual speed, which is intuitive and clear (SH Series);
2. DC permanent magnet motor, low noise, maintenance free, stable operation;
3. Constant rotating speed, the torque can be automatically adjusted according to the change of sample viscosity;

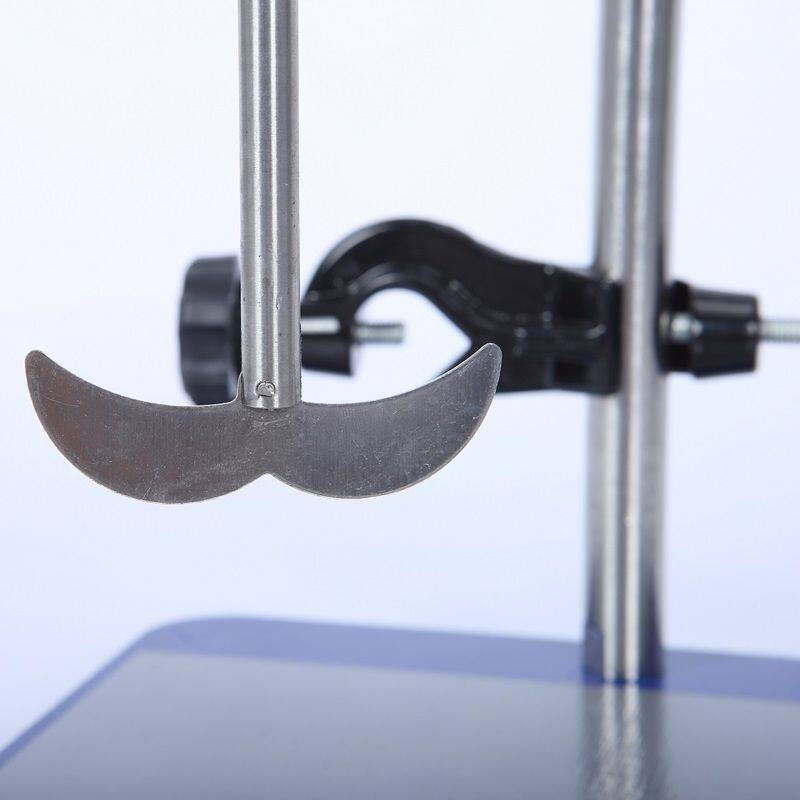

4. Adjustable mixing rod chuck, easy to assemble and disassemble;
5. Overload stops automatically to ensure safe operation;
6. Automatically switch the circuit under abnormal conditions to ensure safe use;
7. Start stably and effectively prevent sample overflow;
8. Automatic memory of the final set working parameters, multi-stage programming control
