Laboratory constant temperature oscillator mixer

1

Laboratory constant temperature oscillator/mixer

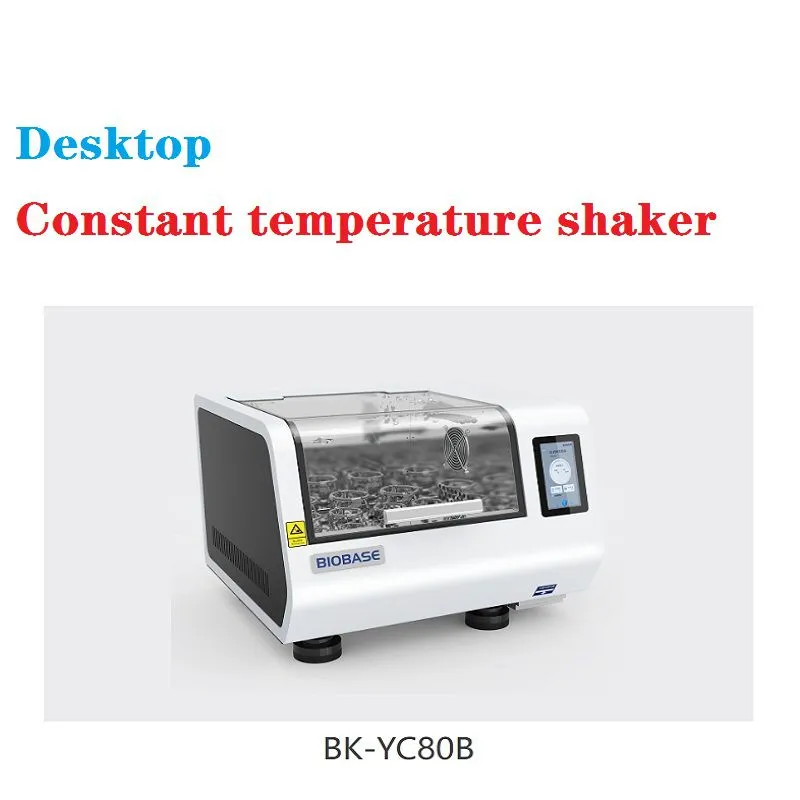

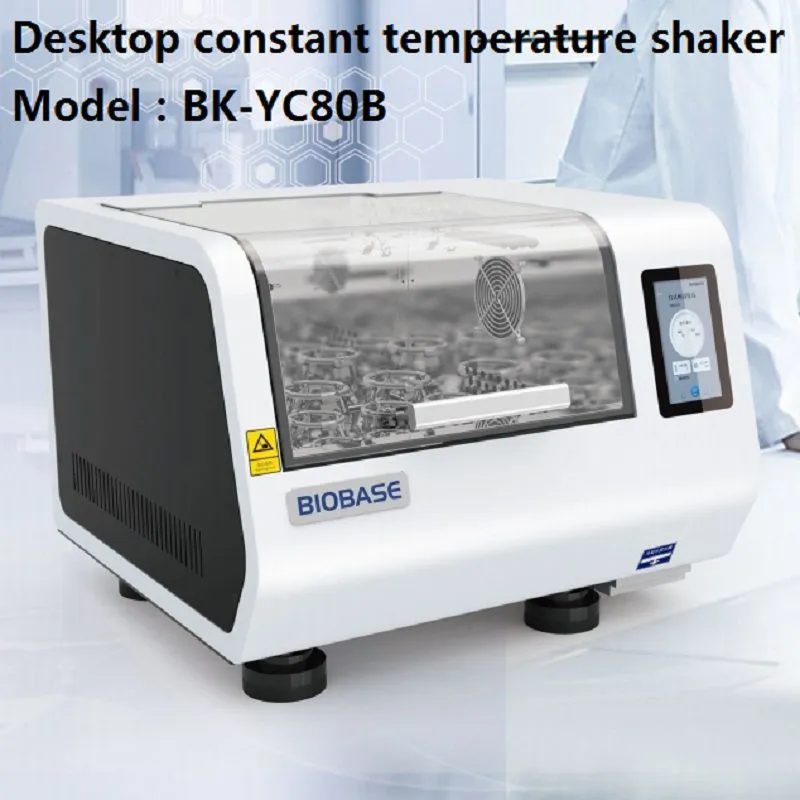

Product model: BK-YC80B

Control method: P.I.D (microcomputer intelligent control)

Convection method: forced convection by fan

Vibration mode: Whirl

Display method: 7-inch capacitive screen

Data processing: internal storage

Control mode: Standard mode; Program control mode (multi stage temperature control, multi stage speed control, time control)

Rotation frequency: Φ 26mm/35~300rpm

Frequency accuracy: ± 1rpm

Maximum configuration: 100ml * 23 or 250ml * 15 or 500ml * 9 or 1000ml * 6 or 2000ml * 4

Standard configuration: 50ml * 5, 100ml * 5, 250ml * 4, 500ml * 3

Timing range: 0-999 (hours/minute)

Temperature control range: 4~65 ℃ (ambient temperature 25 ℃)

Temperature control adjustment accuracy: ± 0.1 ℃

Temperature uniformity: ± 1 ℃ (37 ° effective working surface)

Number of pallets: 1 piece

Volume: 80L

Power: 650W

External dimensions: (WXDXH) 720MMX700MMX580MM

Net weight: 90kg

Tray size: 450 * 410mm

Inner liner size: 500mm * 450mm * 350mm

Power supply: AC220V~240V 50Hz~60Hz

Optional features: remote control of the shaking table program on the mobile phone, UV lamp disinfection, lighting, tray board configuration according to user needs for easy overall replacement, USB storage

Auxiliary functions: timed pre heating/cooling, ultra-low speed start, monitoring timer, process parameter storage and call, power-off memory

Automatic defrosting, safety doors, parameter settings viewing, historical recording, temperature monitoring, and compensation for ambient temperature.

Product Introduction: A constant temperature shaker is a biochemical instrument that combines a heating and cooling bidirectional temperature control system, a temperature controlled incubator, and an oscillator. It is widely used in biological and chemical reactions, bacterial culture, fermentation, hybridization, enzyme and cell tissue research that have high requirements for temperature and oscillation frequency. It can be used as a scientific research instrument for both dynamic and static cultivation of microbial cells and various bacterial strains.

Product features:

1. Equipped with operating parameter memory function

2. Operating parameter memory, automatic temperature regulation, automatic dehumidification, and power-off memory functions

3. After the power is turned on, the device can automatically run according to the original set program

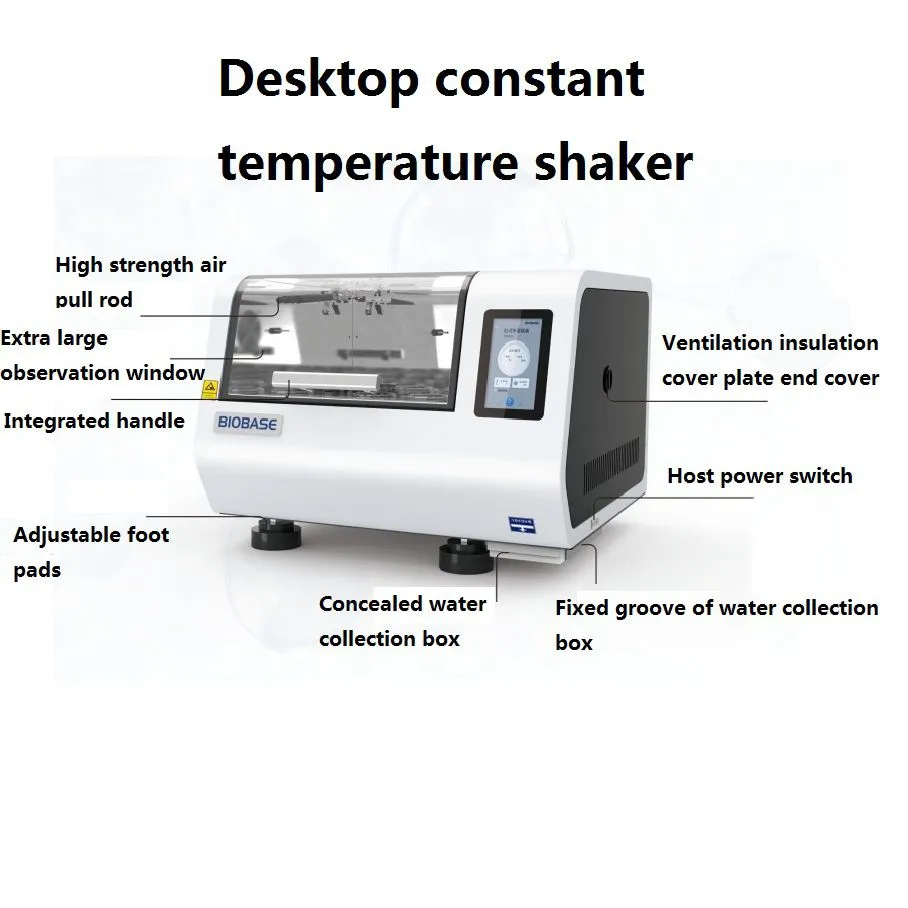

4. Large window, small size, concealed water collection box

Auxiliary functions: timed pre heating/cooling, ultra-low speed start, monitoring timer, process parameter storage and call, power-off memory

Automatic defrosting, safety doors, parameter settings viewing, historical recording, temperature monitoring, and compensation for ambient temperature.
