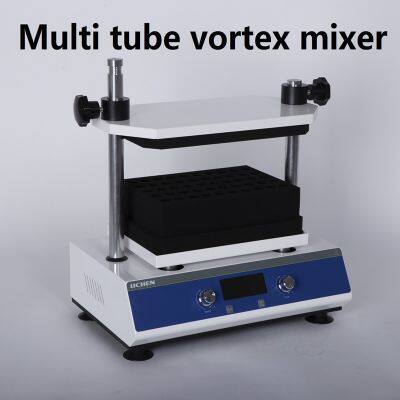

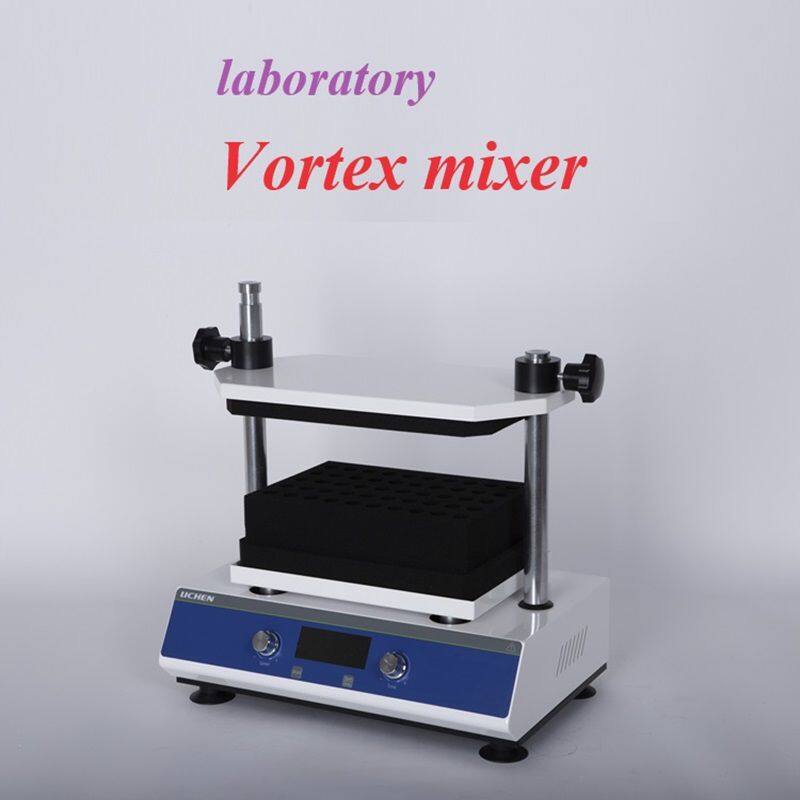

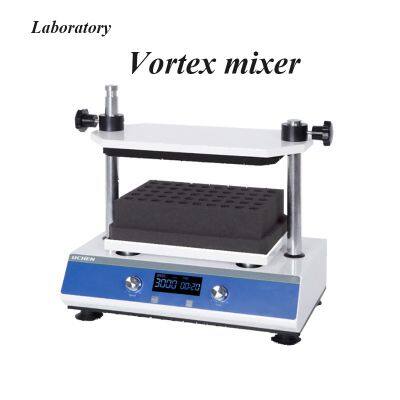

Multi Tube Vortex Mixer Laboratory Mixer

Daoran Trade (Jilin) Co., Ltd

Address: 88 Cambridge Road, Jingkai District, Songyuan City, Jilin Province, China

General manager：Frank

Tel. + 8618004388885(WeChat）

WhatsApp：+8613904365630

Email：xiaofengwu@drsmjlwwgc.onexmail.com

             frank_xiao_china@163.com

             415826980@qq.com

Working principle: use eccentric rotation to make the liquid in test tube and other containers produce eddy current, so as to fully stir the solution.

Application: suitable for mixing chemical reagent, sample tissue, dye and various agents and stirring in reaction process.

Application: biology, physics and chemistry, cosmetics, health products, food, reagents and other experimental fields.

Product features:

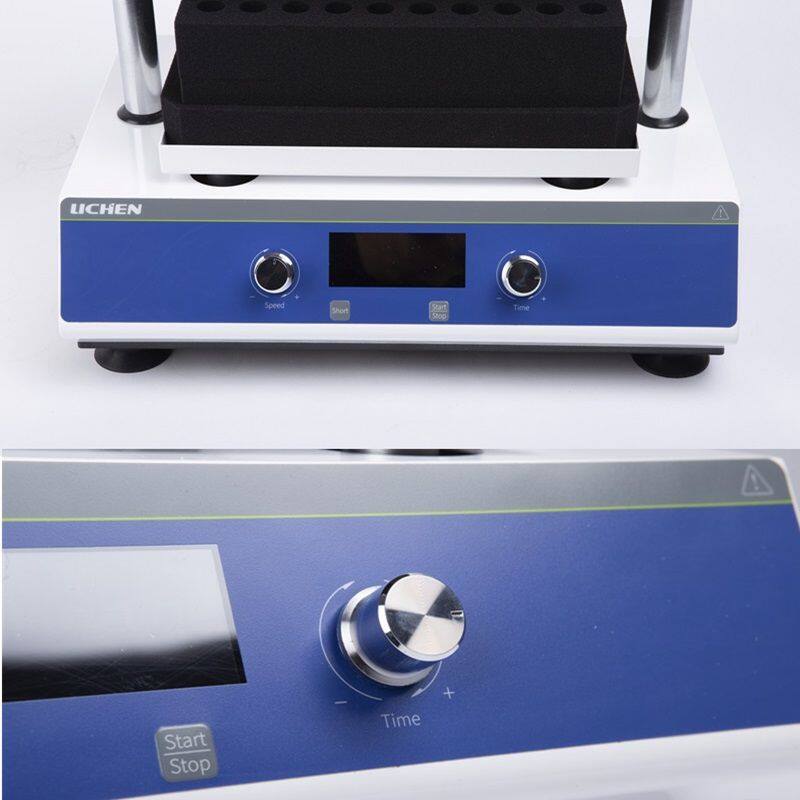

1. LCD display, adjustable speed and time, intuitive and clear

2. Brushless DC motor, stable at low speed and strong at high speed

3. Soft start, softer start to avoid sample splashing

4. Eccentric bearing design, circumferential mixing, uniform and fast mixing

5. Pulse intermittent mode operation, suitable for applications requiring high accuracy and repeatability

6. Suction cup foot, suitable for high-speed work

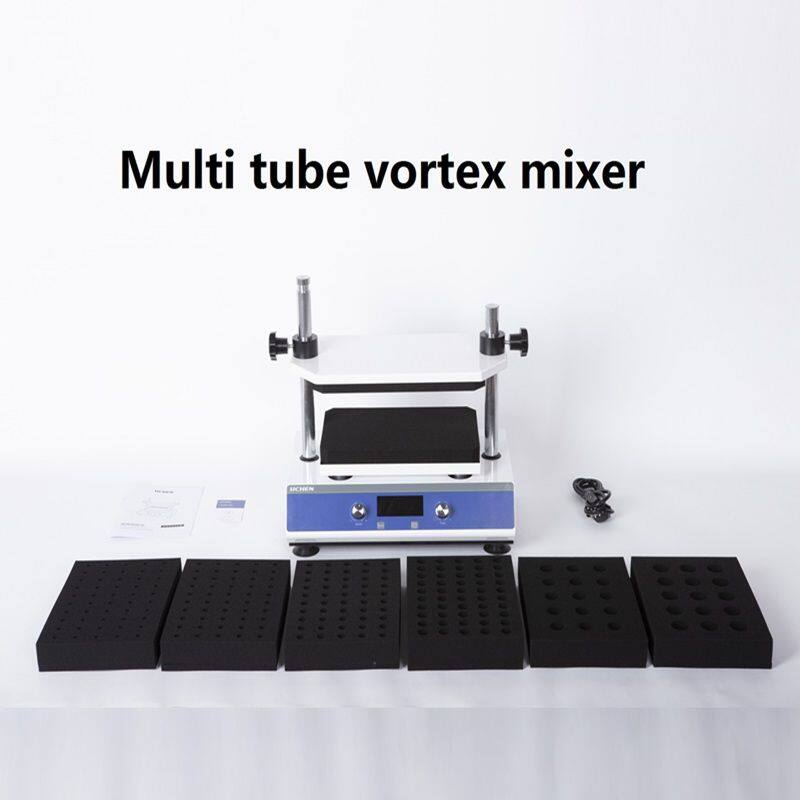

7. A variety of vibration module adapters are available, suitable for containers of various specifications

8. High throughput, mixing and processing up to 50 samples at a time

9. There are two operation modes: inching and timing. There is a prompt tone after the operation

Product Name: multi tube vortex mixer

Model: vortex-2500mt

Voltage: AC100-240V

Frequency: 50 / 60Hz

Power: 70W

Display mode: LCD

Speed range: 500-3000rpm

Speed accuracy: ± 10rpm

Amplitude: 4mm horizontal rotation

Motor type: DC brushless motor

Operation mode: inching and timing

Timing range: 1min-99h59min

Pulse interval: 10s

Maximum load: 4.5kg

Lifting range of top cover plate: 30cm

Net weight: 17kg

Overall dimension: 410 × three hundred and seventy-five × 430mm
