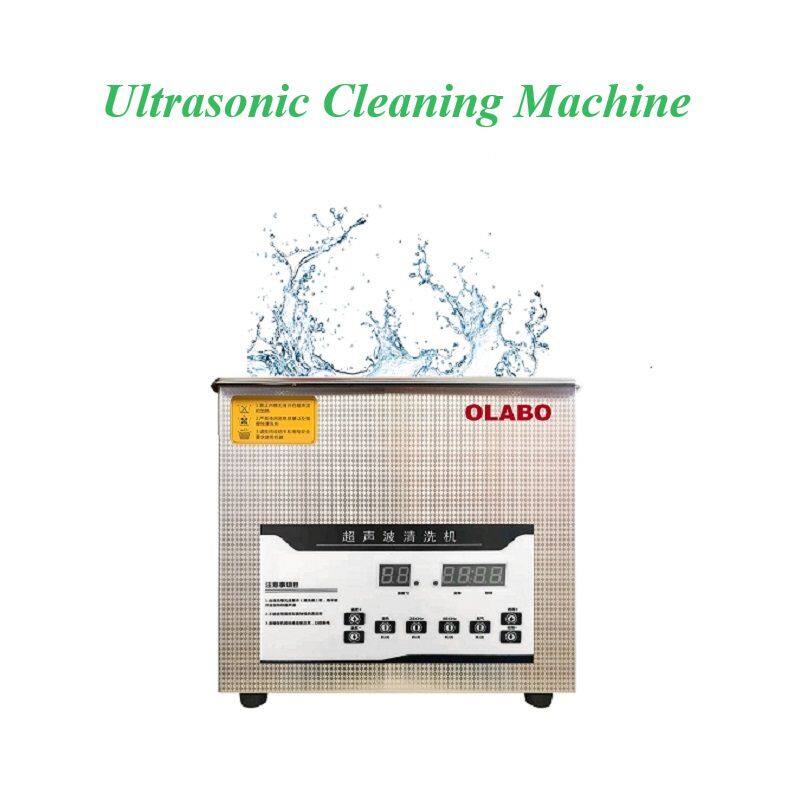

Ultrasonic cleaning machine

Product Introduction: Ultrasonic cleaning machine is a pollution-free, non-destructive, and multi-purpose cleaning equipment. The cavitation effect of ultrasound generates a large number of tiny bubbles in liquids. During the physical process of rapid formation and disappearance of bubbles, liquid particles undergo intense collisions hundreds of thousands of times per second, generating powerful energy. This not only provides ultra clean cleaning effects on complex objects, but also accelerates dissolution and emulsification. The continuous aggregation of bubbles separates from the liquid, resulting in a significant degassing effect.

This device can be used normally in the following environments: ambient temperature: -5 ℃~40 ℃; Relative humidity: not more than 80%; Atmospheric pressure: 80 kPa~106 kPa;

Scope of use: Ultrasonic cleaning machines have unparalleled advantages in physical or chemical cleaning, and are therefore widely used in various fields such as service industry, electronics industry, medical and pharmaceutical industry, laboratory, machinery industry, hard alloy industry, chemical industry, etc.

technical parameter

Model: BK-180VAD

Ultrasonic frequency (KHz): dual frequency, 28/40KHZ

Ultrasonic power (W): 180

Ultrasound timing method: digital

Ultrasound timing time (minutes): 1-99

Inner groove size (length * width * height): 300 * 150 * 150mm

External dimensions (length * width * height): 330 * 180 * 310mm

Capacity (L): 6.5

Heating power (W): 500

Temperature control (℃): Room temperature -80

Drainage: Yes

Lid: Yes

Power supply: single-phase AC 220V 50Hz

Model: BK-240VAD

Ultrasonic frequency (KHz): dual frequency, 28/40KHZ

Ultrasonic power (W): 240

Ultrasound timing method: digital

Ultrasound timing time (minutes): 1-99

Inner groove size (length * width * height): 300 * 240 * 150mm

External dimensions (length * width * height): 330 * 270 * 310mm

Capacity (L): 10

Heating power (W): 500

Temperature control (℃): Room temperature -80

Drainage: Yes

Lid: Yes

Power supply: single-phase AC 220V 50Hz

Model: BK-360VAD

Ultrasonic frequency (KHz): dual frequency, 28/40KHZ

Ultrasonic power (W): 360

Ultrasound timing method: digital

Ultrasound timing time (minutes): 1-99

Inner groove size (length * width * height): 330 * 300 * 150mm

External dimensions (length * width * height): 360 * 330 * 310mm

Capacity (L): 15

Heating power (W): 500

Temperature control (℃): Room temperature -80

Drainage: Yes

Lid: Yes

Power supply: single-phase AC 220V 50Hz

Model: BK-480VAD

Ultrasonic frequency (KHz): dual frequency, 28/40KHZ

Ultrasonic power (W): 480

Ultrasound timing method: digital

Ultrasound timing time (minutes): 1-99

Inner groove size (length * width * height): 500 * 300 * 150mm

External dimensions (length * width * height): 530 * 330 * 310mm

Capacity (L): 22.5

Heating power (W): 500

Temperature control (℃): Room temperature -80

Drainage: Yes

Lid: Yes

Power supply: single-phase AC 220V 50Hz

Model: BK-600VAD

Ultrasonic frequency (KHz): dual frequency, 28/40KHZ

Ultrasonic power (W): 600

Ultrasound timing method: digital

Ultrasound timing time (minutes): 1-99

Inner groove size (length * width * height): 500 * 300 * 200mm

External dimensions (length * width * height): 530 * 330 * 350mm

Capacity (L): 30

Heating power (W): 500

Temperature control (℃): Room temperature -80

Drainage: Yes

Lid: Yes

Power supply: single-phase AC 220V 50Hz
