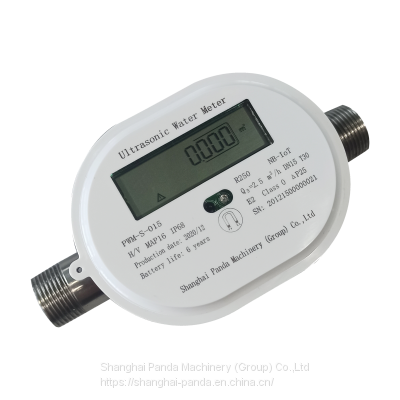

Residential Inline Flow Meter Ultrasonic Lorawan IN865

Name: Residential Inline Flow Meter Ultrasonic Lorawan IN865
Brand: PANDA
SKU: 168306385
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

PANDA

Model Number:

PWM-S

Shanghai Panda Machinery (Group) Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name PANDA

Model Number PWM-S

Product Description

Features:

lStainless Steel Pipe Material

lRange Is Up To 400

lLow Consumption Design, Battery Can Continuously Work For 6 Years

Technical Specification:

Max. Working Pressure	1.6Mpa
Temperature Class	T30
Accuracy Class	ISO 4064, Accuracy Class 2
Body Material	Stainless SS304(opt. SS316 or SS316L)
Battery Life	6 Years (Consumption0.6uA)
Protection Class	IP68
Environmental Temperature	-40~+70℃,≤100%RH
Pressure Loss	ΔP16, ΔP25
Climatic And Mechanical Environment	Class O
Electromagnetic Class	E2
Communication	RS485(ModBus), M-bus, NB-IoT, Opt. OCT Pulse
Display	8 digits LCD display volume(m³,L,GAL), flow rate(m³/h,L/min,GPM), low battery power alarm, flow direction, output.
Connection	Thread Connection
Flow Profile Sensitivity Class	U5/D3
Data Storage	Store the data of Day, Month and Year. The data can be permanently saved even power off.
Frequency	1-4times/second
